Product Description

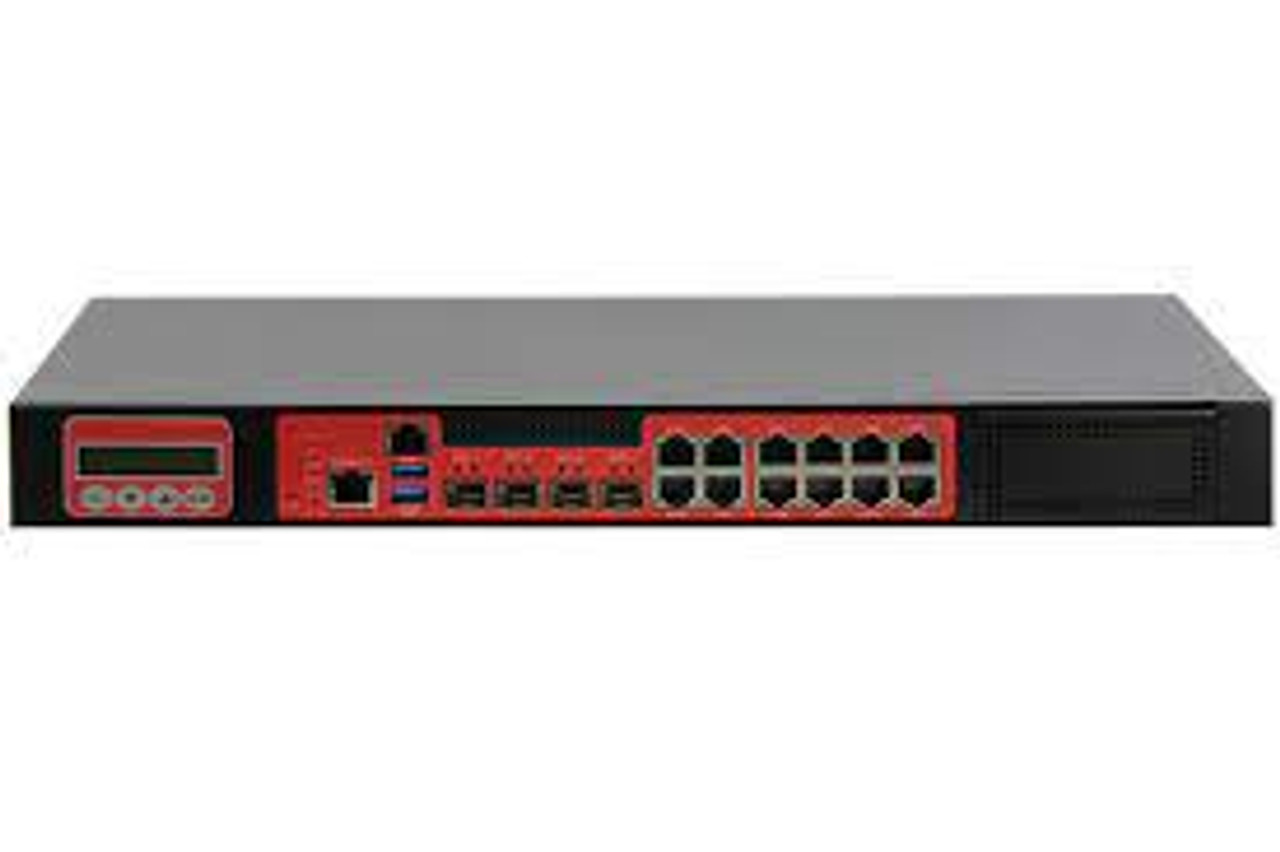

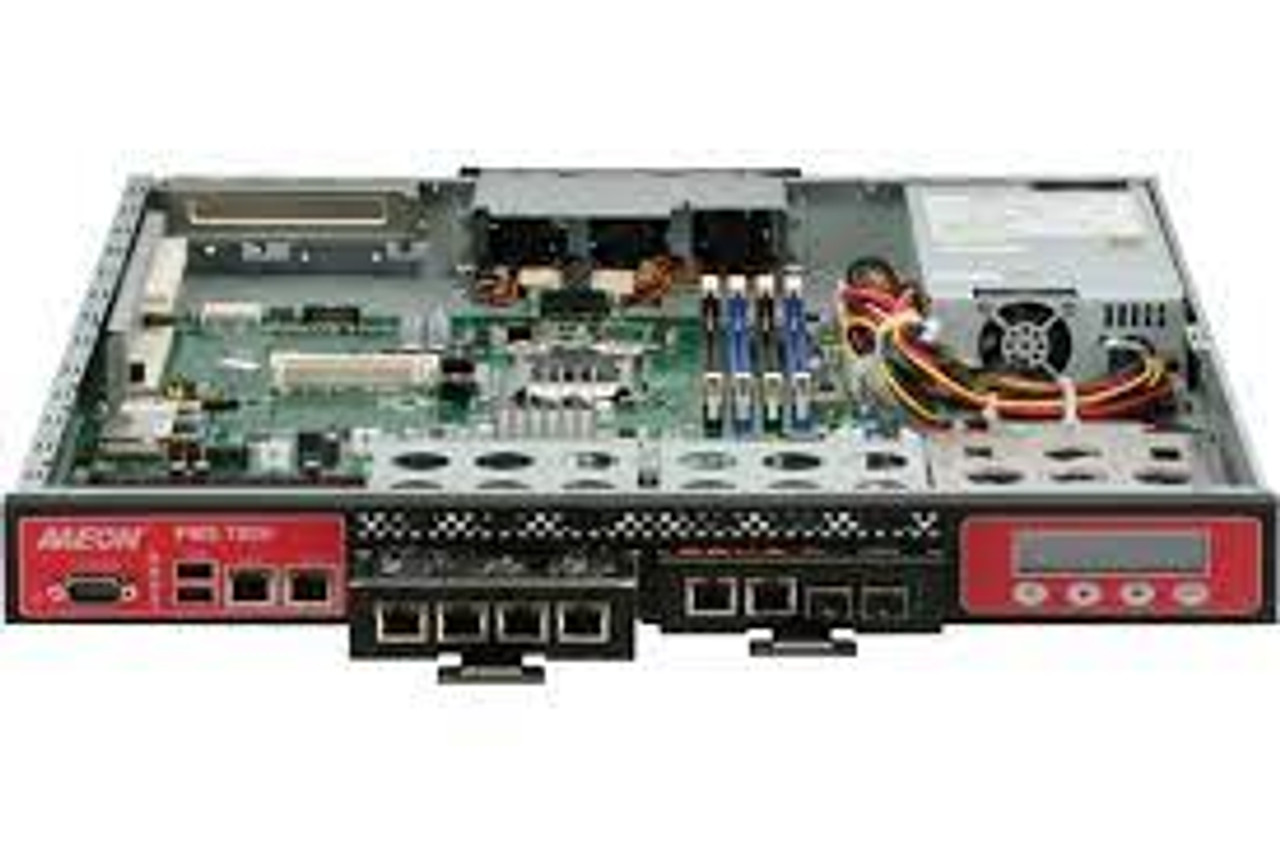

AAEON FWS-7541-E12-A10-00 1U Rackmount Network Appliance with Intel Xeon LCC Processor, DDR4 SO-DIMM ECC DIMM slots x2
The FWS-7541 is the newest and most sophisticated addition to AAEON’s Rackmount Network Appliance range. Powered by Intel Xeon D-1700 Processors (formerly Ice Lake-D), it offers Intel Xeon-level performance in a more power-efficient way. A purpose-built I/O hosts a wealth of features to make the FWS-7541 the optimal low-power, high-performance network management solution. Complementing this is the system’s impressive expandability in such a compact form factor, which offers wireless module support for multiple network connection sources, providing stable, reliable uCPE and SD-WAN solutions.
Powering Network Solutions and Freezing Threats with Intel Ice Lake-D
Utilizing Intel Xeon D-1700 Processors, the FWS-7541 is equipped with server-class computing capabilities of 4 ~ 10 cores for high-bandwidth, power-efficient network gateway applications such as SD-WAN and uCPE. With Intel QAT technology, the FWS-7541 also accelerates the processing, transmission, encryption, and decryption of data. This data is then protected from threats such as cold-boot, firewall penetration, and malware attacks by CPU-integrated security features including Intel PFR, Intel® Boot Guard and Intel® TME.
Expanding Infrastructure Management via Multiple High-Speed Connection Sources
Combining powerful processing with its focused I/O and support for 64GB of high-speed system memory, the FWS-7541 is perfect for larger network infrastructure management applications as it can send and receive a higher volume of data across wider network architectures. With 12 Intel® GbE and four 10Gb SFP+ ports alongside M.2 E and B-Key slots for 5G and Wi-Fi modules, the FWS-7541 builds reliable intra-organizational structures using multiple high-speed connection sources. Furthermore, the FWS-7541 contains impressive LAN virtualization capabilities for use as a uCPE management device, with optional IPMI support enabling remote hardware monitoring and management without connecting to the system on-site.
Guarding Enhanced Data Volumnes Utilizing TPM 2.0 and Optional IPMI
The FWS-7541’s TPM 2.0 slot and CPU-derived security features offer businesses a multifaceted security framework. Further, the FWS-7541’s optional IPMI support allows for the remote monitoring and control of hardware, firmware and software in cross-OS environments, without connecting to the system on-site. Taking advantage of these benefits encrypts network data to protect against unauthorized access, malware attacks and network penetration.
Features
- 1U Rackmount Network Appliance
- Intel Xeon ICE-Lake-D LCC Processor
- SOC PCH
- DDR4 SO-DIMM ECC DIMM slots x2
- IPMI Support (Optional)
- Upto 4 x 10Gb SFP+ (Optional by BOM SKU)
- 1Gb RJ45 ports x 12
- NIM Slot support (Optional) x 1
- M.2 (B key 3052) for 4G/5G (USB3.0 + PCIe) x 1 with SIM
- M.2 (E key 2230) (PCIe) x 1
- TPM 2.0 SPI
- 2.5” SATA HDD x 2 (default)
- LCM with Keypad x 1
- RJ-45 Console port x 1, USB 3.2 GEN1 port x 2
- 220W PSU
