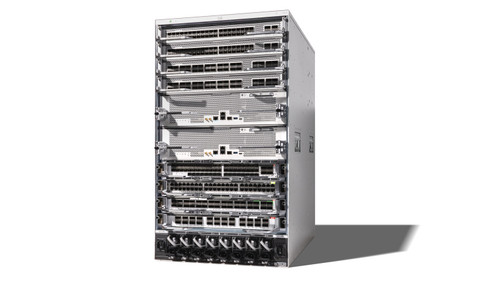

Cisco C9610 Series Smart Switches offer a 10-slot chassis with two supervisor options and multiple line-card options, including support for current Cisco Catalyst 9600 Series line cards. The new Cisco C9610R chassis provides a common architecture that can scale up to 448 native 10-Gigabit, 25-Gigabit, or 50-Gigabit SFP56 Ethernet ports (or up to 512 SFP with QSFP-4SFP breakout cables), and up to 256 native 40-Gigabit or 100-Gigabit QSFP28 or up to 16 native 400-Gigabit QSFP-DD Ethernet ports.
The Cisco C9610 Series redundant chassis offers full high availability (HA) by supporting 1 + 1 redundant supervisor engines with stateful switchover (SSO), non-stop forwarding (NSF), and full-image in-service software upgrades (ISSUs). NSF/SSO and ISSU help ensure continuous packet forwarding during supervisor engine switchover to enable HA for business-critical applications.
The Cisco C9610R chassis is enterprise-campus optimized, with efficient front to back airflow and front accessibility for most removable components, including supervisors, line cards, and power supplies. The chassis supports rear accessibility for the fan tray to enable efficient cable management. The Cisco C9610R chassis, supervisor, line cards, power supply, and fan tray have optional embedded RFID tags that facilitate easy asset and inventory management using commercial RFID readers.
Chassis features
| Feature | Cisco C9610R chassis |
|---|---|
| Total number of slots | 10 |
| Line card slots | 8 |
| Supervisor engine slots | 2 |
| Dedicated supervisor engine slot numbers | 5 and 6 |
| Supervisor engine redundancy | Yes |
| Supervisor engines supported | C9610-SUP-3, C9610-SUP-3-XL |
| Maximum bandwidth scalability per line-card slot | 6.4 Tbps (3.2 Tbps full-duplex) with C9610-SUP-3 or C9610-SUP-3-XL |
| Number of power-supply bays | 8 |
| Minimum number of power supplies | 4 (using 3000W PS) |
| Power supplies supported | 3000W AC, 2000W AC, and 2000W DC |
| Number of fan-tray bays | 4 |
Specifications
Physical specifications of Cisco C9610R chassis
| Description | Specifications |
|---|---|
| SKU/PID | C9610R |
| Dimensions (H x W x D) | 31.47 x 17.4 x 26.1 inches (79.93 x 44.20 x 66.29 cm) |
| Rack Units (RU) | 18 |
| Chassis weight with 2 power supplies (AC) and fan tray | 266.0 lbs (120.7 kg) |
| Input voltage | AC: 90V to 264V, 47 Hz to 63 Hz DC: -40V to -72V |
| Operating temperature | -5° to 45°C (23° to 113°F) at sea level -5° to 40°C (23° to 104°F) up to 6000 feet (about 1.83 km) |
| Storage temperature | -40° to 75°C (40° to 167°F) |
| Relative humidity, operating and non-operating, non-condensing | 10% to 95%, non-condensing |
| Altitude | -60 to 3000 m (-197 to 9843 ft) |
| Mean time between failures (MTBF) (hours) | C9610R: 257,200 C9610-FAN: 1,155,370 C9600-PWR-3KWAC: 300,000 C9600-PWR-2KWAC: 300,000 C9600-PWR-2KWDC: 300,000 |
| Chassis weight (without fan tray, without PSU) | 184.0 lbs (83.5kg) |
| Weight of fan tray | 13.98 lbs (6.34 kg) |
| Weight of individual PSUs | AC PSU (3000W): 1.48 kg (3.09 lb) AC PSU (2000W): 1.18 kg (2.60 lb) DC PSU (2000W): 1.28 kg (2.82 lb) |
| BTU (British Thermal Unit) of C9610R chassis with fan tray | TBD (max) |
