Product Description
INFORTREND EONSTOR DS 3000U 4U/24bay, High IOPS solutions, single upgradable to redundant controller subsystem including 1x12Gb/s SAS EXP. ports, 4x1G iSCSI ports +2x host board slot(s), 2x32GB, 2x(PSU+FAN Module), 1x(SuperCap.+Flash module)

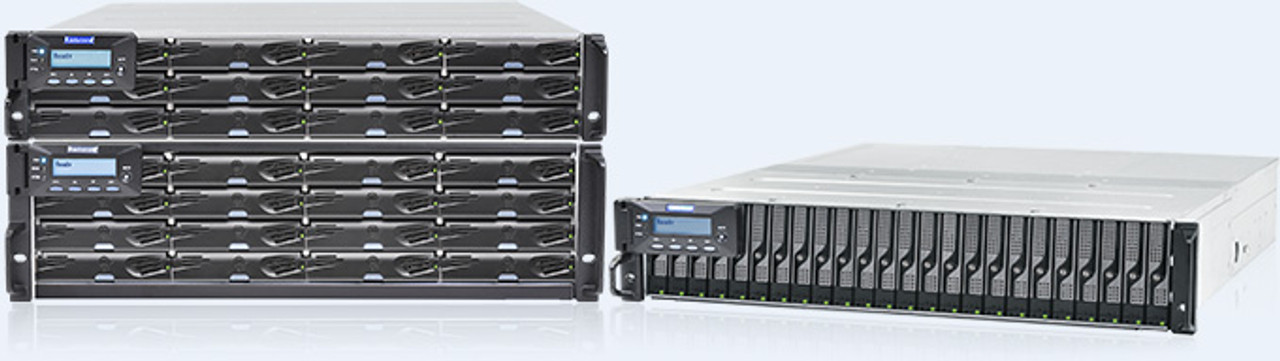

EonStor DS 3000
High availability enterprise SAN storage solution
From 2U 12-bay to 4U 24-bay systems, EonStor DS 3000 ensures enterprises have access to storage with future-proof design. Modular hardware means redundancy and easy upgrades, while fast performance allows for speedy operations. For scalability, a range of expansion enclosures can host up to 448 drives capacity. Systems can be totally customized when placing orders, with variety of protocols, such as FC, iSCSI, SAS, InfiniBand and FCoE, for flexible hybrid interfaces.
The DS 3000 Gen2 with support for SAS 12Gb/s drive side chip is an upgrade from DS3000/3000T's SAS 6Gb/s to remove bottlenecks and offer a faster performance
Model
- DS 3012
- DS 3024B
- DS 3016
- DS 3024
- Find EonStor DS 3000 Gen1
Form Factor
- 2U 12-bay
- 2U 24-bay
- 3U 16-bay
- 4U 24-bay
Controller
Single or dual-redundant or single upgradable to redundant
Cache Backup Technology
Super capacitor or BBU + flash module
(only for upgradable single-controller and dual-controller models)
Cache Memory
Default DDR4 8GB, up to 128GB
Host Ports
- Onboard host ports:
- 1GbE (RJ-45) x 8
- 12Gb/s SAS x 2
- Host board options:
- 16Gb/s FC x 4
- 32Gb/s FC x 2 or 4
- 1GbE (RJ-45) x 4
- 10GbE (SFP+) x 2
- 10GbE (RJ-45) x 2
- 25GbE (SFP28) x 2
- 40GbE (QSFP+) x 2
- 12Gb/s SAS x 2
Max. Drive Number
448 (via expansion enclosure)
Supported Drives
- 2.5" SAS or SATA SSD
- 2.5" 10,000 or 15,000 RPM SAS 12Gb/s HDD
- 3.5" 7,200 RPM SATA 6Gb/s HDD (G/S model only)
- 3.5" 7,200 RPM nearline SAS 12Gb/s HDD
Drive Advanced Features
- S.M.A.R.T. support
- Automatic bad-sector reassignment
- Dedicated bandwidth to each connected drive
RAID Options
RAID 0, RAID 1, RAID 3, RAID 5/5F, RAID 6/6F, RAID 10, RAID 30, RAID 50, RAID 60
Data Services
- Default software features include:
- SED (self-encrypting drives)
- Thin-provisioning
- Snapshot: 64 per source volume, 128 per logical volume
- Local replication (block-level): 4 per source volume, 16 per system
- Optional software features require additional license:
- SSD cache
- Automated storage tiering (2 or 4 storage tiers based on drive types)
- Advanced snapshot: 256 per source volume, 4,096 per logical volume
- Advanced local replication (block-level): 8 per source volume, 256 per system
- Advanced remote replication (block-level): 8 per source volume, 64 per system
Supported OS
- Microsoft Windows Server 2019/2016/2012 R2/2012/2008 R2/2008
- Windows 7 SP1
- Windows 8.1
- Windows Hyper-V
- Red Hat Enterprise Linux
- SUSE Linux Enterprise
- Sun Solaris
- macOS X
- VMware
- Citrix XenServer
- OpenStack Cinder
Supported Protocols
Block-level protocol: FC, iSCSI, SAS
Management
- Web-based SANWatch management software
- Embedded RAIDWatch
- Terminal via RS-232C
- Telnet and SSH
- LCD keypad panel
Notification
Email, SNMP traps
Expansion Enclosures (JBODs)
JB 3012, JB 3016, JB 3024B, JB 3025B, JB 3060L
- Redundant, hot-swappable hardware modules
- Device mapper support
- Trunk group support
- Cache Safe technology
Safety Standards
- Safety: UL, BSMI, CB
- Electromagnetic compatibility: CE, BSMI, FCC
Green Design
- 80 PLUS-certified power supplies delivering more than 80% energy efficiency
- Intelligent multi-level drive spin-down
Power Supply Unit
- Power supplies: redundant (1+1) and hot-swappable 460W x 2 (80 PLUS Bronze)
- AC voltage: 100VAC @10A to 240VAC @5A
- Frequency: 50-60 Hz
Environmental
- Temperature:
- Operating: 0°C to 40°C without BBU or CBM, 0°C to 35°C with BBU or CBM
- Non-operating: -40°C to 60°C
- Altitude:
- Operating: sea level to 3,048 m (10,000 ft)
- Non-operating: sea level to 12,192 m (40,000 ft)
- Relative humidity: 5% to 95% non-condensing, operating and non-operating
Service and Support
- Standard service: 3-year limited hardware warranty and 8x5 phone, web, and email support (batteries are covered under warranty for 2 years).
- Warranty extension: standard service can be extended up to 5 years.
- Service upgrade options: the following service can be upgraded to 5 years
- Upgrade: replacement part dispatch on the next business day.
- Advanced service: 24x7 phone, web, and email support + onsite diagnostics on the next business day.
- Premium service: 24x7 phone, web, and email support + onsite diagnostics in 4 hours.
- Technical support: installation/maintenance guide, software/firmware download, troubleshooting and support tickets.
- Product services: product registration, licensing service, product repair, and order status.
Dimensions (W x H x D)
Without chassis ears and protrusions
- 2U 12-bay: 449 x 88 x 500 mm
- 2U 24-bay: 449 x 88 x 500 mm
- 3U 16-bay: 449 x 130 x 500 mm
- 4U 24-bay: 449 x 174.4 x 500 mm
Package Dimensions (W x H x D)
- 2U 12-bay: 780 x 379 x 588 mm
- 2U 24-bay: 780 x 340 x 588 mm
- 3U 16-bay: 780 x 423 x 588 mm
- 4U 24-bay: 780 x 465 x 588 mm
Weight (without HDDs)
- 2U 12-bay: 29.98 lbs (13.60 kg)
- 2U 24-bay: 43.17 lbs (19.58 kg)
- 3U 16-bay: 47.75 lbs (21.66 kg)
- 4U 24-bay: 60.49 lbs (27.44 kg)
