Lenovo ThinkCentre M70a Gen 6 (24ʺ Intel) - Intel Core Ultra 5 225T Processor - Windows 11 Home 64 - 8 GB DDR5-5600MT/s - 256 GB SSD - 13AYCTO1WWHK1

Lenovo

Request A Quote

Write a Review

SKU:: HS-LEN-13AYCTO1WWHK1
Condition:: New
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
MPN:: 13AYCTO1WWHK1
Note:: Images may not be exact, please check specifications.
Required A Volume Purchase:: Contact us for a volume pricing | volumeorders@hssl.us

Overview
Other Details

Product Description

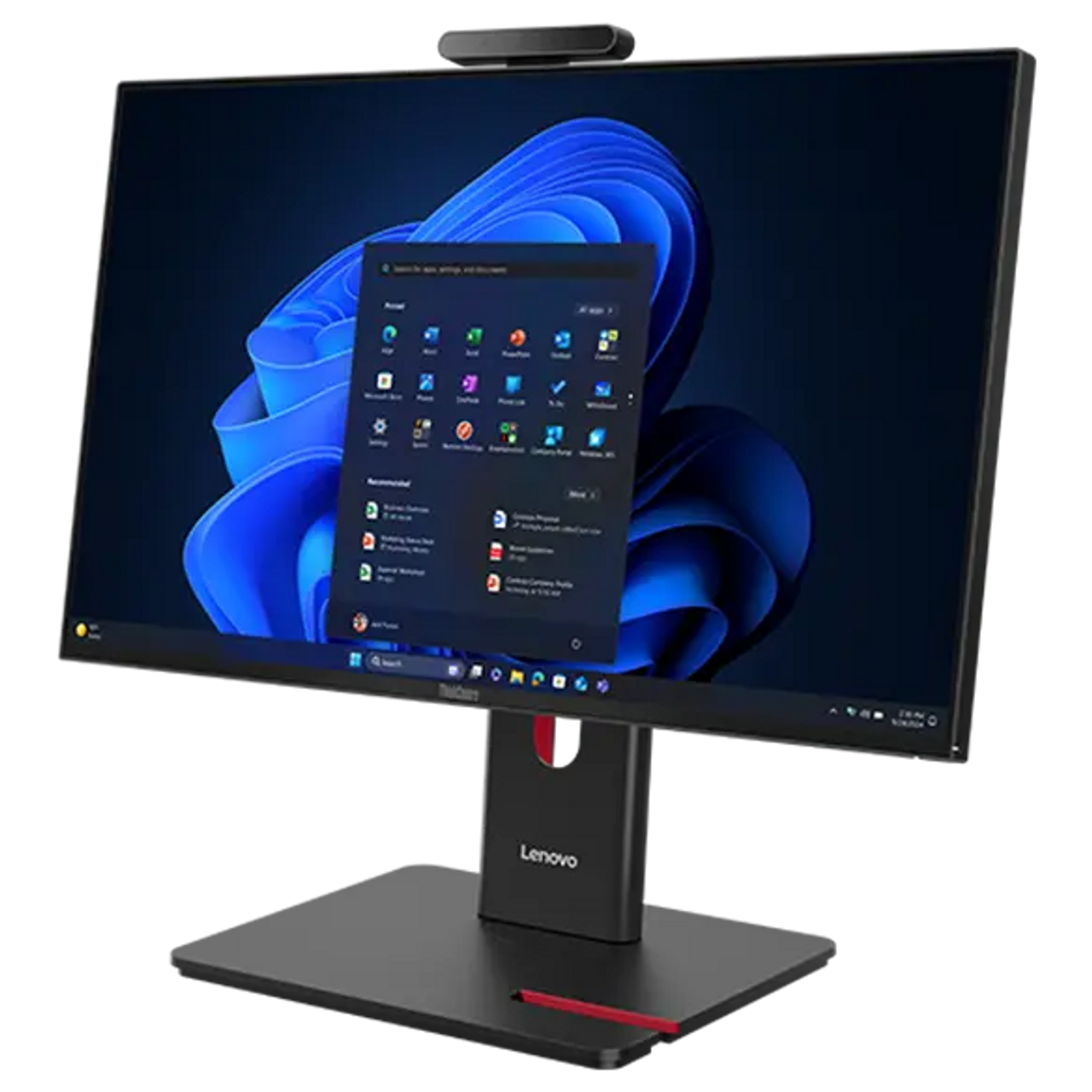

Lenovo ThinkCentre M70a Gen 6 (24ʺ Intel) - Intel Core Ultra 5 225T Processor - Windows 11 Home 64 - 8 GB DDR5-5600MT/s - 256 GB SSD - 13AYCTO1WWHK1

Key Details

Intel Core Ultra 5 225T Processor (E-cores up to 4.40 GHz P-cores up to 4.90 GHz)
Windows 11 Home 64
Integrated Graphics
8 GB DDR5-5600MT/s (SODIMM)
256 GB SSD M.2 2280 PCIe Gen4 TLC Opal
23.8″ FHD (1920 x 1080), 250nit, antiglare
USB Calliope Mouse (Black)
USB, Calliope, Black - English (US)
Integrated Ethernet
1 Year On-site
23.8" FHD (1920 x 1080), IPS, Anti-Glare, Non-Touch, 99%sRGB, 250 nits, 120Hz, 90W Power Supply

Think Smart. Secure Better. Achieve More.

The 23.8″ Lenovo ThinkCentre M70a Gen 6 AIO delivers premium performance with Intel Core Ultra processors and Intel AI Boost for real-time workload optimization. Furthermore, AI Turbo Engine enables on-device AI access, reducing cloud reliance to boost productivity. Lenovo AI Now and Intel vPro drive secure and seamless operational excellence.

Built to Perform, Easy to Maintain

Immerse yourself in lifelike visuals on the 23.8″ wide display. Its narrow bezels allow for expansive viewing and audio with Dolby Atmos deliver rich, superior soundscapes for an amazing audio-visual experience. Integrated Intel graphics facilitate seamless multitasking while TÜV Eyesafe and TÜV Low Blue Light technology prevent eye strain.

Your Data Safe, Your Tasks Unstoppable

Enjoy blazing-fast connectivity and generous storage and memory options available on the M70a Gen 6 all-in-one PC. ThinkShield’s advanced hardware and software security features safeguard your data with Smart USB Protection, discrete Trusted Platform Module (dTPM), and user recognition. Plus, Intel vPro multilayer security ensures ultimate peace of mind.

Tech Specs

Performance

Processor	Up to Intel Core Ultra 7 on Intel vPro platform
Operating System	Windows 11 Pro — Lenovo recommends Windows 11 Pro for business Windows 11 Home Windows 11 Home Single Language
Neural Processing Unit (NPU)	Up to 13 trillion operations per second (TOPS) AI performance with Intel Optional: Discrete M.2 NPU Card (Kinara Ara-2) with up to 30 TOPS AI performance
Central Processing Unit (CPU)	Intel Dynamic Tuning Technology (DTT)
Graphics	Intel integrated graphics with up to 8 TOPS
Memory	Up to 64GB DDR5
Storage	2 x M.2 SSD, up to 2TB Optional: External module optical disc drive (ODD)
Audio	2 x 2W speakers Dolby Atmos Dual mics Intel Gaussian & Neural Accelerator (GNA) – for AI-based noise cancelation
Camera	5M RGB with webcam privacy shutter (tiltable & rotatable) 5M RGB & infrared (IR) with webcam privacy shutter (tiltable & rotatable) 5M RGB with webcam privacy shutter (fixed angle)
Power Supply Unit	90W (89% energy-efficient)

Connectivity

Ports/Slots	Side: USB-A (hi-speed USB) USB-C (USB 10Gbps) Optional: 3-in-1 card reader Headphone / mic combo Rear: 2 x USB-A (USB 5Gbps), one always on 2 x USB-A (hi-speed USB) DisplayPort 1.4 out Ethernet (RJ45) HDMI 2.1 out (supports resolution up to 4K@60Hz) & HDMI 1.4 in (supports resolution up to AIO panel resolution 2560 x 1440@120Hz) combo Optional: Serial port USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.
Wireless	Wi-Fi 7 (2x2 AX) with Bluetooth 5.4 Wi-Fi 6E (2x2 AX) with Bluetooth 5.3 Wi-Fi 6 (2x2 AX) with Bluetooth 5.2 or 5.3 (dependent on wireless card) * 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.

Ports/Slots

Side:

USB-A (hi-speed USB)
USB-C (USB 10Gbps)
Optional: 3-in-1 card reader
Headphone / mic combo

Rear:

2 x USB-A (USB 5Gbps), one always on
2 x USB-A (hi-speed USB)
DisplayPort 1.4 out
Ethernet (RJ45)
HDMI 2.1 out (supports resolution up to 4K@60Hz) & HDMI 1.4 in (supports resolution up to AIO panel resolution 2560 x 1440@120Hz) combo
Optional: Serial port

USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.

Wireless

Wi-Fi 7 (2x2 AX) with Bluetooth 5.4
Wi-Fi 6E (2x2 AX) with Bluetooth 5.3
Wi-Fi 6 (2x2 AX) with Bluetooth 5.2 or 5.3 (dependent on wireless card)

* 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.

Design

Display	23.8″ FHD (1920 x 1080), 4 side near-edgeless, 250nit, 99% sRGB, 120Hz, 1500:1 contrast ratio, 14ms response time, in-plane switching, antiglare, TÜV Eyesafe, TÜV Low Blue Light, TÜV Flicker Free, IP55 (front face only), touchscreen 23.8″ FHD (1920 x 1080), 4 side near-edgeless, 250nit, 99% sRGB, 120Hz, 1500:1 contrast ratio, 14ms response time, in-plane switching, antiglare, TÜV Eyesafe, TÜV Low Blue Light, TÜV Flicker Free, IP54 (front face only)
Dimensions (H x W x D)	Without stand: Starting from 49.55mm x 539.6mm x 340.2mm / 1.95″ x 21.24″ x 13.39″ Optional: With Full Function Monitor Stand: Starting from 221.21mm x 539.6mm x 393.01mm / 8.75″ x 21.24″ x 15.47″ Optional: With Ultra-Flex V Stand: Starting from 224.10mm x 539.6mm x 333.45mm / 8.82″ x 21.24″ x 13.13″ Optional: With Tilt-Only Stand: Starting from 213.14mm x 539.6mm x 442mm / 8.39″ x 21.24″ x 17.4″
Weight	Without stand: Starting from 5.12kg / 11.29lbs Optional: With Ultra-Flex V Stand: Starting from 7.16kg / 15.79lbs Optional: With Full-function Stand: Starting from 8.08kg / 17.81lbs Optional: With Tilt-Only Stand: Starting from 7.12kg / 15.7lbs

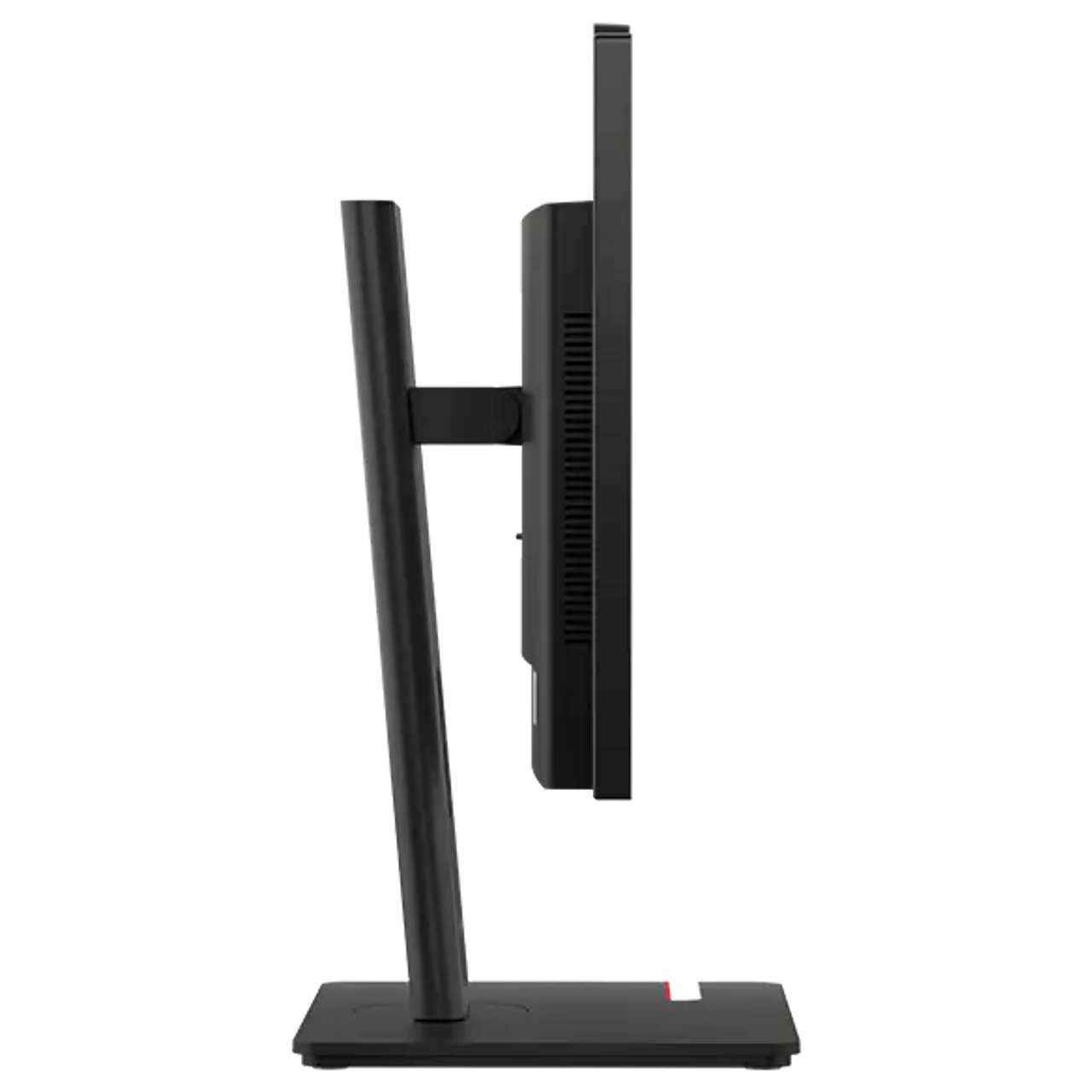

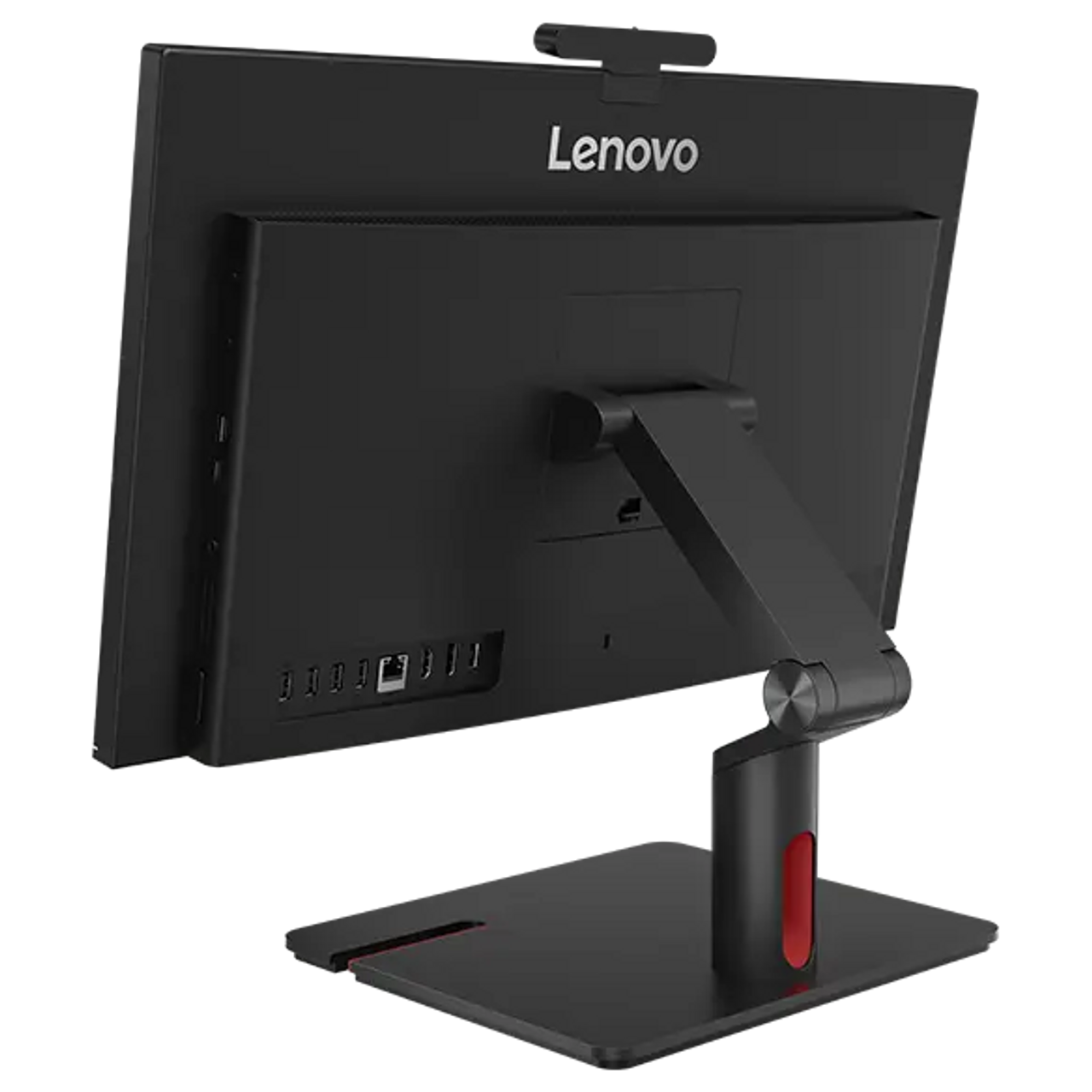

Display Stand Functionality	Full Function Monitor Stand: Tilt: -5 to 20 degrees Lift: 150mm Pivot: 90 degrees Swivel: 90 degrees, 45 degrees left & right Optional: Ultra-Flex V Stand Tilt: -5 to 70 degrees Lift: 70 ± 2 degrees with vertical lift range of 102mm Optional: Tilt only Stand Tilt: -5 to 25 degrees
Mounting Options	Without stand Optional: Full-function Monitor Stand Optional: Ultra-Flex V Stand Optional: Tilt-Only Stand
Color	Raven Black

Sustainability

Material	95% recycled post-consumer content (PCC) acrylonitrile butadiene styrene (ABS) plastic used in wired keyboard & mouse 90% paper pulp used in package cushion 85% recycled PCC ABS used in partial of plastic parts 30% ocean-bound plastic (OBP) used in device bag Forest Stewardship Council (FSC)-certified carton
Certifications / Registries	ENERGY STAR 9.0 Forest Stewardship Council(FSC) Healthcare compliance (Partial of IEC 60601-1 / IEC 60601-1-2) Intelligent Cooling Engine (ICE) 7.0 IP55* IP54* MIL-STD-810H RoHS TCO 10.0 TCO Edge TÜV Eyesafe TÜV Flicker Free TÜV Low Blue Light TÜV Ultra Low Noise *Available on select model configurations, front face only

Material

95% recycled post-consumer content (PCC) acrylonitrile butadiene styrene (ABS) plastic used in wired keyboard & mouse
90% paper pulp used in package cushion
85% recycled PCC ABS used in partial of plastic parts
30% ocean-bound plastic (OBP) used in device bag
Forest Stewardship Council (FSC)-certified carton

Certifications / Registries

ENERGY STAR 9.0
Forest Stewardship Council(FSC)
Healthcare compliance (Partial of IEC 60601-1 / IEC 60601-1-2)
Intelligent Cooling Engine (ICE) 7.0
IP55*
IP54*
MIL-STD-810H
RoHS
TCO 10.0
TCO Edge
TÜV Eyesafe
TÜV Flicker Free
TÜV Low Blue Light
TÜV Ultra Low Noise

*Available on select model configurations, front face only

Other information

ThinkShield Security	Error correction (EC) self-healing (Level 2) BIOS-based Smart USB Protection Intel vPro Enterprise Discrete Trusted Platform Module (dTPM) 2.0 Kensington Security Slot Optional: Intrusion switch Windows Hello with facial recognition (requires optional IR camera) Mic-mute button & LED indicator
Preloaded Software	Lenovo Commercial Vantage Lenovo Device Manager Lenovo Smart Meeting Microsoft Team Office 365 (trial)
What’s in the Box	Lenovo ThinkCentre M70a Gen 6 (24″ Intel) 90W adapter Quick Start Guide

ThinkShield Security

Error correction (EC) self-healing (Level 2)
BIOS-based Smart USB Protection
Intel vPro Enterprise
Discrete Trusted Platform Module (dTPM) 2.0
Kensington Security Slot
Optional: Intrusion switch
Windows Hello with facial recognition (requires optional IR camera)
Mic-mute button & LED indicator

Preloaded Software

Lenovo Commercial Vantage
Lenovo Device Manager
Lenovo Smart Meeting
Microsoft Team
Office 365 (trial)

What’s in the Box

Lenovo ThinkCentre M70a Gen 6 (24″ Intel)
90W adapter
Quick Start Guide
