Product Description

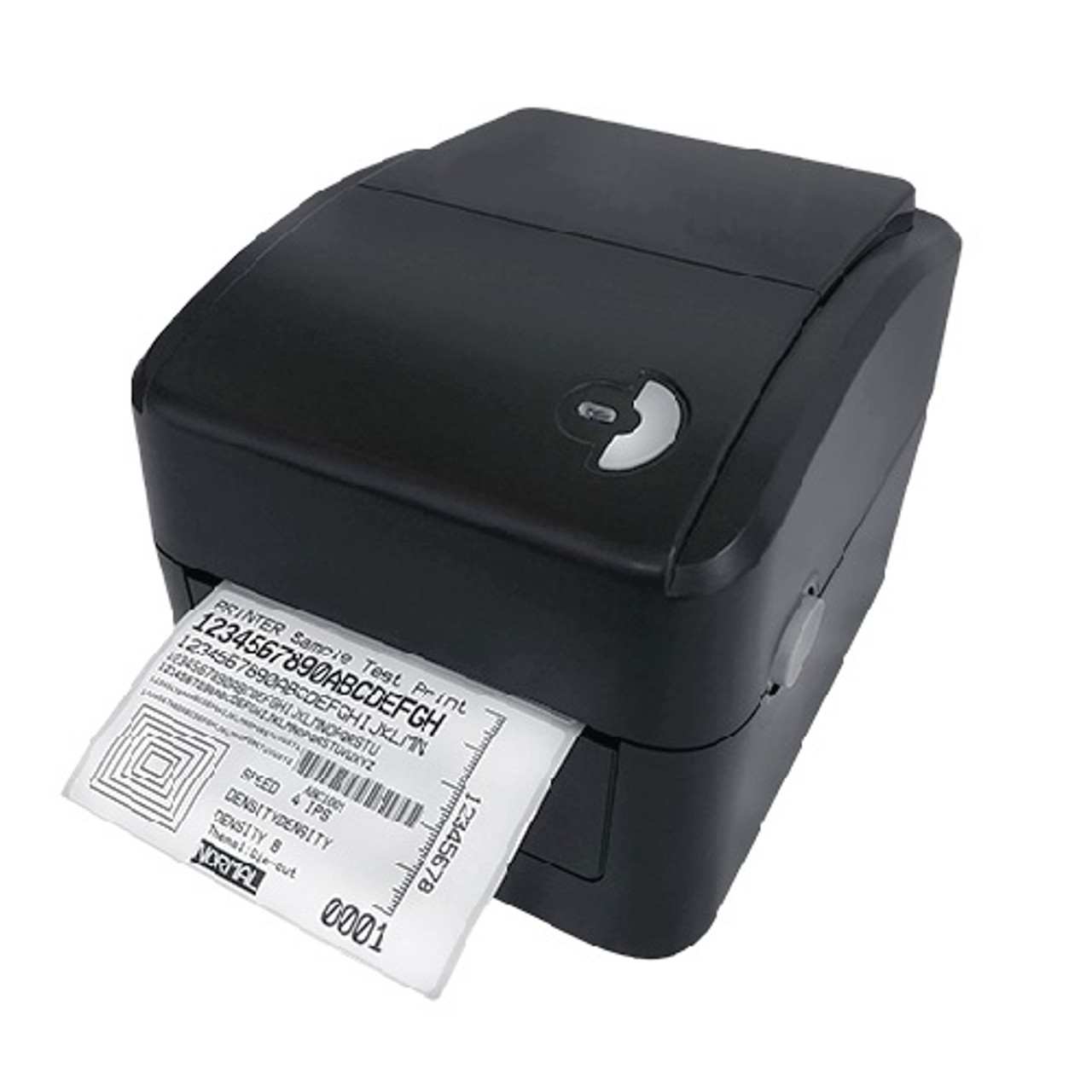

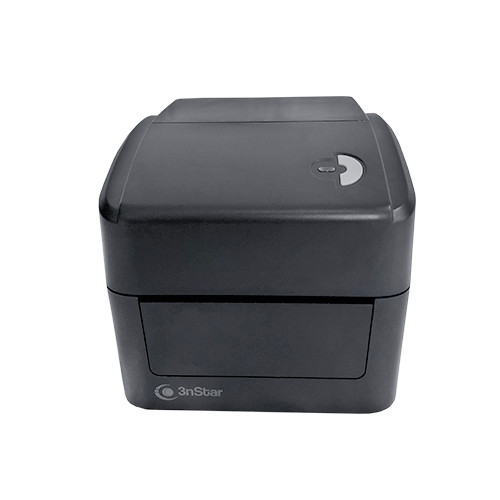

3nStar4” Direct Thermal Label Printer - LDT114
The LDT114 Label printer offers professional printing for any budget. It’s affordable, easy-to-use
making it ideal for a variety of labeling applications. The LDT114 has a dual-wall framed construction and all-metal print head to reduce replacement parts and decrease printer downtime.
Features
- Bartender Label Printing Software
- TSPL Emulation (EPL, ZPL, DPL)
- 6 IPS printing speed
- 8MB SDRAM, 8MB Flash
- 203 dpi resolution

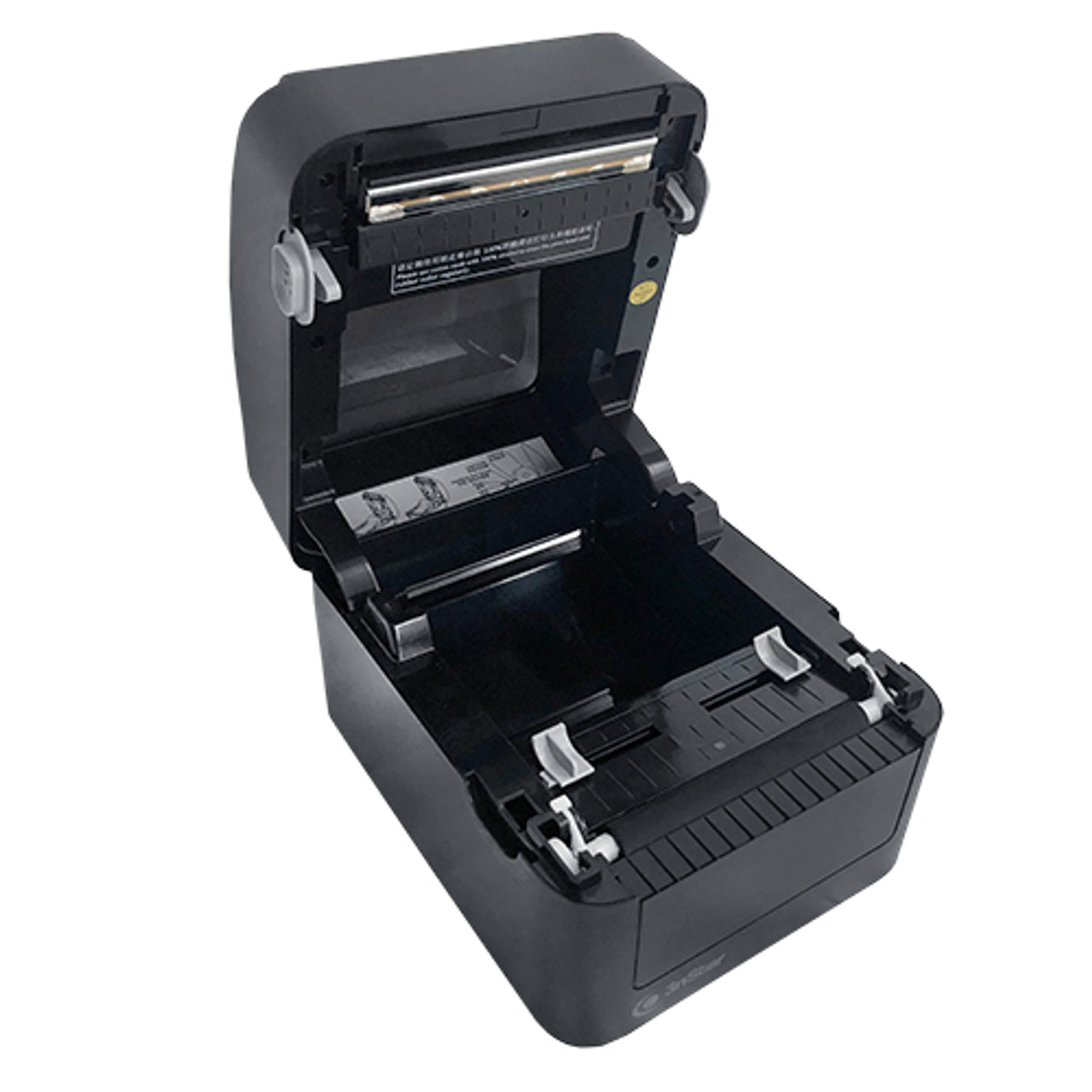

- Double-walled clamshell design
- Black mark reflective sensor, Cover open sensor, Gap sensor
- Support PDF417, QR Code, Data Matrix 2D
- USB and Lan Interface
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
MPN LDT114
Dimensions 215 mm (W) × 178 mm (D)× 155 mm (H)
Printing Method Direct Thermal
Printing Speed 152mm/S (6 IPS)
Resolution 8 dots/mm(203DPI)
Max Printing Width 108 mm (4.25”)
Max Printing length 1778 mm (70”)
Media Type Continuous, gap, black mark, fanfold and punched hole
Media Width 20-115mm (0.78”-4.5”)
Media Thickness 0.06~0.25mm (0.0236" ~ 0.063")
Label length 10~1,778mm (0.4” ~ 70”)
Label Roll Diameter 127 mm (5“)
Label Roll Core 24.5mm (1") min
Sensor Black mark reflective sensor, Cover open sensor, Gap sensor
Memory 8MB Flash Memory, 8MB SDRAM, Micro SD card reader for Flash memory expansion, up to 4 GB

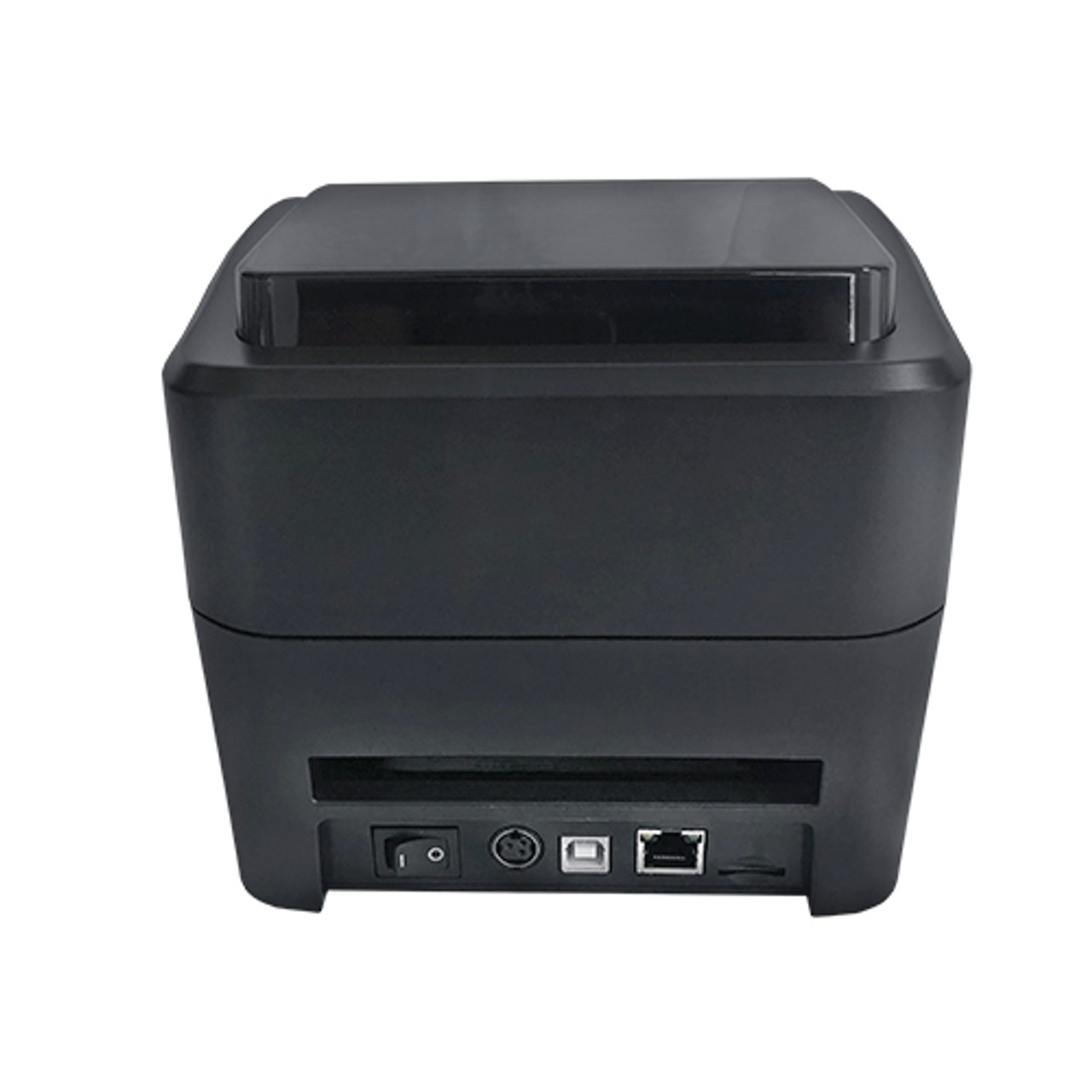

Interface USB 2.0 & Ethernet
Compatibility Windows, Linux, Android, Mac OS, iOS
1D Barcode Printing Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13, EAN128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code11
2D Barcode Printing PDF-417, Maxicode, DataMatrix, QR code, Aztec
Power Supply Input AC 110V/220V, 50~60Hz (Adapter)
Power Supply Output DC 24V/2.5A
Operating Temperature - 10°C to 50°C (14 ~ 122 °F)
Operating Humidity 10 ~ 90% non-condensing
Storage Temperature 40° to 60°C (-40 ~ 140 °F)
Storage Humidity 10 ~ 90% non-condensing
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
