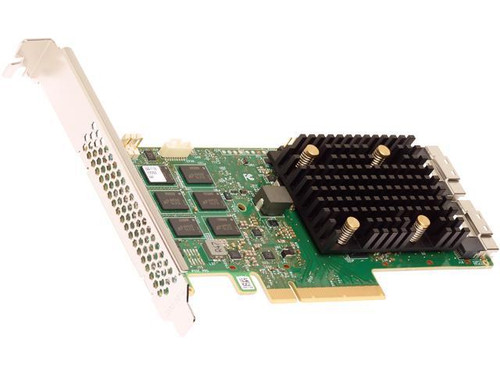

Broadcom HBA 9500-16i Tri-Mode Storage Adapter

Overview:

The high-port 9500-16i Tri-Mode, PCIe Gen4 HBA is ideal for increased connectivity and maximum performance for enterprise data center flexibility.

With increased bandwidth and IOPS performance compared to previous generations, the 9500-16i adapter delivers the performance and scalability needed by critical applications.

• Connects up to 1024 SAS/SATA devices or 32 NVMe devices
• Provides maximum connectivity and performance for high-end servers and applications
• Support critical applications with the bandwidth of PCIe® 4.0 connectivity
• Universal Bay Management (UBM) Ready

• Specifications:

  	9500-16i
  Lifecycle	Active
  Host Bus Type	x8 lane PCI Express 4.0
  Physical Dimensions	Low profile 6.127in x 2.712in
  Devices Supported	SAS/SATA: 1024, NVMe: 32
  Internal Connectors	2 x8 SFF-8654 (SlimLine)
  Internal Ports	16
  Operating Temperature	0°C to 55°C
  Operating Voltage (V)	+12V +/-8%, 3.3V +/-9%
  OS Support	Microsoft Windows, Linux, VMware.
  I/O Controller	SAS3816
  Operating Humidity	20% to 80% Non-condensing
  Brackets	Full height and low profile
  Regulatory Certifications	Australia/New Zealand (AS/NZS CISPR 22), Canada ICES-003 Class B, CE Europe (EN55022/EN55024), Europe (EN55022/EN55024), Japan (VCCI V-3), Korea (RRA no 2013-24 & 25), RoHS, Safety: EN/IEC/UL 60950, Taiwan (CNS 13438), USA (FCC 47 CFR part 15 Subpart B, class B), WEEE
  Warranty	3 years, free technical support, advanced replacement option at Broadcom.com/support/warranty/internal-raid-hba
  Management Software	LSI Storage Authority (LSA), StorCLI (Command-Line Interface), HII (UEFI Human Interface Infrastructure)
