  • MMA1B00-C100D

    • Nvidia Mellanox 100Gb/s QSFP28 Optical Transceiver - For Optical Network - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable - MMA1B00-C100D

    NVIDIA

    MXN$4,041.15
    Write a Review
    SKU:
    HS-MMA1B00-C100D
    UPC:
    7.29011E+12
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    Application/Usage:
    Optical Network
    Application/Usage:
    Data Networking
    Product Type:
    QSFP28
    Manufacturer Part Number:
    MMA1B00-C100D
    Interfaces/Ports Details:
    1 x MPO 100GBase-SR4 Network
    Limited Warranty:
    1 Year
    Connector Type:
    MPO
    Form Factor:
    Hot-pluggable
    Manufacturer:
    Nvidia Technologies Ltd
    Product Name:
    100Gb/s QSFP28 Optical Transceiver
    Network Technology:
    100GBase-SR4
    Brand Name:
    Nvidia
    Country of Origin:
    Israel
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Ethernet Technology:
    100 Gigabit Ethernet
    Media Type Supported:
    Optical Fiber
    Fiber Mode Supported:
    Multi-mode
    Total Number of Ports:
    1
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us For a volume pricing | volumeorders@hssl.us
    Adding to cart… category.add_cart_announcement

    Product Description

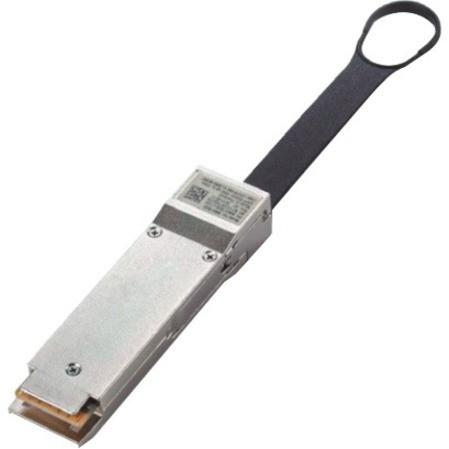

    Mellanox 100Gb/s QSFP28 Optical Transceiver - For Optical Network - 1 x MPO 100GBase-SR4 Network - Optical Fiber - Multi-mode - 100 Gigabit Ethernet - 100GBase-SR4 - Hot-pluggable
    Mellanox® MMA1B00-C100 Is a 4-channel, pluggable, QSFP28 Optical transceiver, designed For Use in 100Gb/s Ethernet. This module incorporates Mellanox integrated circuit technology, in order To provide high performance at low power. The transceiver operates over parallel multi-mode (MMF) ribbon fiber, using a nominal wavelength of 850nm, And Is SFF-8665 compliant.

    The MMA1B00-C100 has a Standard QSFP28 connector on The electrical side towards The Host system supporting CAUI-4. The Optical interface Is composed of four Optical channels/fibers in each direction, intended For a parallel multi-mode Optical cable via a Standard MPO connector. Each channel/fiber operates at signaling rates up To 25.78125 GBd.

    The MMA1B00-C100D transceiver has DDM functions implemented For reading The following key parameters With associated warning And alarm thresholds:

    -Temperature With warning/alarm

    -Supply voltage With warning/alarm

    -Laser bias current

    -Transmitted Optical power With warning/alarm

    -Received Optical power With warning/alarm

    Rigorous production testing ensures The best out-of-the-box installation experience, performance, And durability.

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page

    Product Videos

    Custom Field

    Application/Usage Optical Network
    Application/Usage Data Networking
    Product Type QSFP28
    Manufacturer Part Number MMA1B00-C100D
    Interfaces/Ports Details 1 x MPO 100GBase-SR4 Network
    Limited Warranty 1 Year
    Connector Type MPO
    Form Factor Hot-pluggable
    Manufacturer Nvidia Technologies Ltd
    Product Name 100Gb/s QSFP28 Optical Transceiver
    Network Technology 100GBase-SR4
    Brand Name Nvidia
    Country of Origin Israel
    Environmentally Friendly Yes
    Environmental Certification RoHS
    Ethernet Technology 100 Gigabit Ethernet
    Media Type Supported Optical Fiber
    Fiber Mode Supported Multi-mode
    Total Number of Ports 1
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us For a volume pricing | volumeorders@hssl.us
