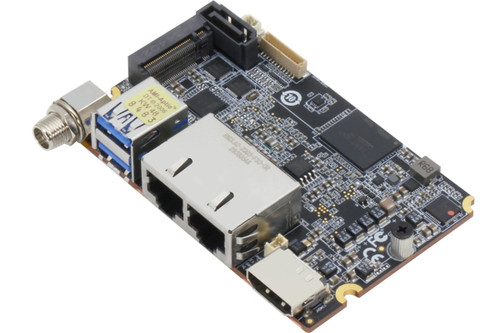

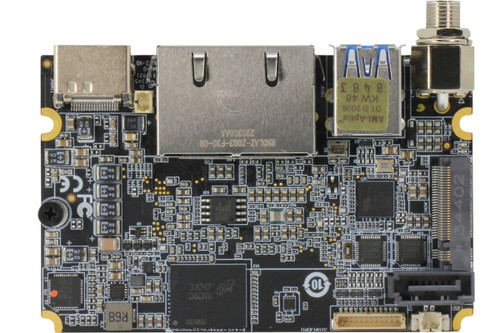

Aaeon De Next-RAP8 86mm x 55mm Single Board with 13th Generation Intel Core i7/i5/i3 Processor
- Onboard 13th Gen. Intel Core Series Processor, TDP 15W
- Onboard LPDDR5x up to 16GB
- HDMI 1.4b x 1, eDP x 1
- 2.5GbE RJ45 x 1, GbE RJ45 x 1
- USB 3.2 Gen 2 x 2, USB 2.0 x 4
- M.2 2280 M-Key x 1 (PCIe [x2]), PCIe Gen 3 [x4] via FPC x 1
- DC 12Vin
SPECIFICATIONS
SYSTEM
Form Factor: 86mm x 55mm, Single board computer
CPU:
13th Generation Intel Core Processors:
Intel Core i7-1365UE (10C/12T, 1.70 GHz, up to 15W)
Intel Core i5-1335UE (10C/12T, 1.30 GHz, up to 15W)
Intel Core i3-1315UE (6C/8T, 1.20 GHz, up to 15W)
Intel Core i7-1365UE (10C/12T, 1.70 GHz, up to 15W)
Intel Core i5-1335UE (10C/12T, 1.30 GHz, up to 15W)
Intel Core i3-1315UE (6C/8T, 1.20 GHz, up to 15W)
Chipset: Integrated with Intel SoC
Memory Type: Onboard LPDDR5x, up to 16GB
BIOS: UEFI
Wake on LAN: Yes
Watchdog Timer: 255 Levels
Security: fTPM
RTC Battery: Lithium Battery 3V/240mAh
Dimension (L x W): 3.38” x 2.17” (86mm x 55mm)
OS support:
Windows 10 (64-bit)
Ubuntu 22.04.3 (Kernel 6.2)
Ubuntu 22.04.3 (Kernel 6.2)
POWER
Power Requirement: +12V
Power Supply Type: AT/ATX (Default : AT mode)
Connector: DC Jack Connector
Power Consumption:
Intel Core i7-1365UE, LPDDR4x 16GB, 3.18A @12V, 38.16W (Typical)
Intel Core i7-1365UE, LPDDR4x 16GB, 3.36A @12V, 39.16W (Max)
Intel Core i7-1365UE, LPDDR4x 16GB, 3.36A @12V, 39.16W (Max)
DISPLAY
Controller: Intel Iris Xe
LVDS/eDP: eDP 1.4 x 1, up to 3840 x 2160
Display Interface: HDMI 1.2a x 1, up to 1920 x 1080 @60Hz
Multiple Display: Up to Dual Displays
AUDIO
CODEC: —
Audio Interface: —
Speaker: —
EXTERNAL I/O
Ethernet:
Intel Ethernet Connection I219-LM,GbE RJ-45 x 1
Intel Ethernet Controller I226-LM, 2.5GbE x 1
Intel Ethernet Controller I226-LM, 2.5GbE x 1
USB: Rear I/O : USB3.2 Gen2 Type A x 2
Serial Port: —
Video: HDMI 1.4b x 1
INTERNAL I/O
USB: USB 2.0 x 4 (Pin Header)
Serial Port: RS-232/422/285 x 2 (Pin Header)
Video: eDP x 1
SATA:
SATA 6Gb/s x 1
+5V SATA Power Connector x 1
+5V SATA Power Connector x 1
Audio: —
DIO/GPIO: 8-Bit
SMBus/I2C: Optional
Touch: —
Fan: 4 Pin Smart Fan (with Cooler version only)
SIM: —
Front Panel: PowerLED, Power Button, Buzzer, Reset Button
Others: —
EXPANSION
Mini PCI-E/mSATA: —
M.2:
M.2 2280 M-Key x 1 (PCIe [x2])
PCIe Gen 3 [x4] via FPC x 1
PCIe Gen 3 [x4] via FPC x 1
Others: —
ENVIRONMENT & CERTIFICATION
Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C)
Storage Temperature: -40°F ~ 176°F (-40°C ~ 80°C)
Operating Humidity: 0% ~ 90% relative humidity, non-condensing
MTBF (hours): 1,679,950
EMC: CE/FCC Class A
