Product Description

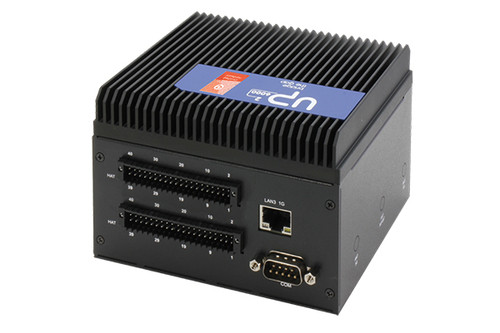

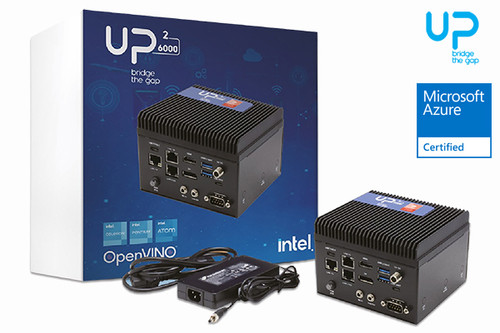

AAEON UP SQUARED 6000 EDGE KIT UP Squared 6000 Edge Computing Kit with Intel Atom Processor SoC
Overview
Get more out of the UP Squared 6000 with the UP Squared 6000 Edge Computing Kit, an industrial turnkey solution powered by the Intel Atom x6425RE SoC (formerly Elkhart Lake). The UP Squared 6000 Edge Computing Kit is an upgraded version of the UP Squared 6000 Edge. It is only 1 centimeter taller, but it supports more features, including:
◆ Pre-installed software package includes Ubuntu desktop LTS and Intel Edge Insights for Vision (Intel Distribution of OpenVINO toolkit, Intel Media SDK, and Intel Distribution for Python)
◆ 8GB RAM and 64GB eMMC Storage
◆ Two 40-pin GPIOs
◆ Three Gigabit Ethernet ports and one 2.5Gigabit Ethernet port
◆ Two Serial COM ports
◆ USB UART port for PSE debug (micro USB)
◆ Intel Programmable Services Engine (Intel PSE) for Out-of-Band (OOB) Management
◆ Industrial features: Time-Sensitive Networking (TSN), Time Coordinated
◆ Computing (TCC), and in-band ECC
◆ Multiple M.2 sockets for AI modules, NVMe storage, 5G connectivity, and Wi-Fi 5/6 modules expansion
◆ Fanless Design
Features
- Intel Atom x6425RE Processor SoC
- Onboard LPDDR4 Memory 8GB
- Onboard eMMC Storage 64GB
- GbE x 3, 2.5GbE x 1
- USB 3.2 x 3 (Type A x 2, Type C x 1)
- 40 pin GPIO x 2 (1x from MB, 1x from CB(PSE))
- DP 1.2 / HDMI 2.0b
- COM x 2 (1x from MB, 1x from CB(PSE
- M.2 2230 E-Key / M.2 2280 M-Key / 3052 B-Key x 1
- SATA3 x 2 (1x from MB, 1x from CB)
- TPM 2.0
- 12V DC-in, 6A
Data Sheet
