Product Description

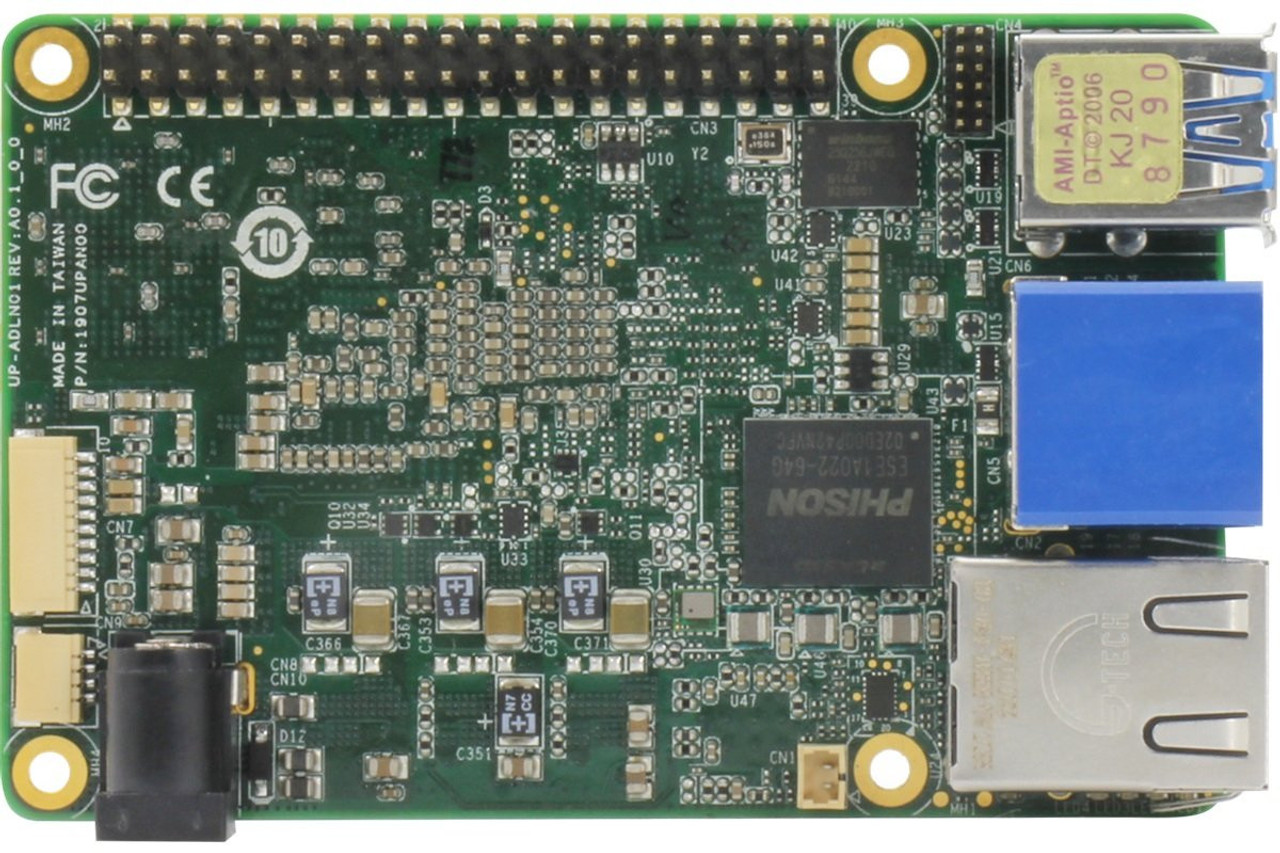

Aaeon UP TWL | Compact SBC with GPIO & Intel Processor N150 for Edge IoT - Active Cooler - UP-TWLN150-A12-0864
- Intel Processor N-series
- Onboard LPDDR5 Memory, up to 8GB
- Onboard eMMC Storage, up to 64GB
- 1Gigabit LAN x 1
- HDMI 1.4b x 1
- USB 3.2 Gen 2 (Type-A) x 3, 10-pin USB 2.0 x 2/UART x 1
- 40-pin GPIO x 1
- 12V DC-in, 5A
- TPM 2.0
SPECIFICATIONS
SYSTEM
Processor;
Intel Core 3 Processor N355
Intel Processor N250
Intel Processor N150
(formerly Twin Lake)
Intel Processor N250
Intel Processor N150
(formerly Twin Lake)
Graphics: Intel UHD Graphics
Memory: Dual-Channel LPDDR5, up to 8GB
Storage: Up to 64GB eMMC
I/O;
HDMI 1.4b/USB 3.2 Gen 2 STACK Connector x 1 (Type-A)
4-pin Front Panel x 1
2-pin Fan Wafer x 1 (12V)
2-pin RTC Battery Wafer x 1
4-pin Front Panel x 1
2-pin Fan Wafer x 1 (12V)
2-pin RTC Battery Wafer x 1
Camera: —
USB;
USB 3.2 Gen 2 (Type-A) x 3
10-pin USB 2.0 x 2/UART x 1
10-pin USB 2.0 x 2/UART x 1
Expansion: 40-pin GPIO x 1
Display Interface: HDMI 1.4b x 1
Ethernet: 1GbE RJ-45 x 1 (Realtek RTL8111H CG)
Security: Onboard TPM 2.0
RTC: Yes
OS support;
Windows 10 Enterprise LTSC 2021
Linux: Ubuntu 22.04 LTS/Kernel 5.15, Yocto 4.0
Linux: Ubuntu 22.04 LTS/Kernel 5.15, Yocto 4.0
POWER REQUIREMENT
Power: 12V DC-in, 5A
Power Supply Type: AT (default) /ATX
Power Consumption (Typical): 30~36W
MECHANICAL
Dimension: 3.34” x 2.20” (85mm x 56mm)
Net Weight: 0.33 lb. (0.15Kg)
Gross Weight: 0.44 lb. (0.20Kg)
ENVIRONMENT
Operating Temperature: 32°F ~ 140°F (0°C ~ 60°C) / 0.5 airflow, WiTAS1 -4°F ~ 158°F (-20°C ~ 70°C) with active cooler
Operating Humidity: 0% ~ 90% relative humidity, non-condensing
MTBF: 685,218 Hours
Certification: CE/FCC Class A, RoHS Compliant, REACH
DatasheetOther Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
MPN UP-TWLN150-A12-0864
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
