Product Details

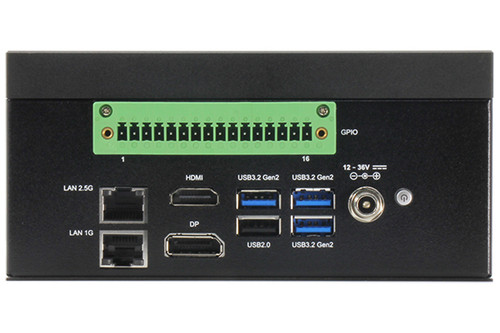

AAEON UP Xtreme i12 Edge system with 12th generation Intel Core i7/i5/i3/Celeron Processor SoC (Alder Lake-P)
Overview
Bringing the next generation strength and utility of the UP Xtreme i12 developer board to an AI-ready, easily deployed system, the new UP Xtreme i12 Edge is the elite solution for any setting. Packing the power-efficient multicore architecture of 12th Generation Intel Core i7/i5/i3/Celeron Processors, onboard LPDDR5, and AI module support into a compact edge system, the UP Xtreme i12 Edge bridges the gap between potential and reality to make industrial, healthcare, and transport applications thrive.
Accelerated AI Activation
Wi-Fi 6, 5G, AI and PCIe 4.0 storage modules are accommodated by four M.2 Keys, enabling the system’s incorporation with existing hardware to bring AI to the edge. The UP Xtreme i12 Edge also supports Intel Iris Xe graphics, Intel DL Boost, and the Intel Distribution of OpenVINO Toolkit, boosting GPU image classification inferencing performance by up to 2.81 times that of the previous generation. Combining this expandability with a library of inferencing models makes the UP Xtreme i12 Edge ideal for bringing AI to existing healthcare, industrial, and retail equipment.
Compact, Fast & Powerful
Measuring just 152mm x 123.8mm x 72.5mm yet equipped with 12th Generation Intel Core processing, the UP Xtreme i12 Edge is both compact and powerful. Further, the UP Xtreme i12 Edge does not sacrifice spec for space; with USB 4.0, USB 3.2, and USB 2.0 ports joining an Intel i226-IT LAN port running at 2.5Gpbs with Time-Sensitive Networking (TSN) support to exploit the device’s onboard LPDDR5 for real-time data processing.
Retail-Ready with Multiple 4K Displays
The processing speed of the UP Xtreme i12 Edge can be parlayed into the development of elite smart retail solutions. With a display interface consisting of HDMI 2.0, DP 1.4a, and eDP 1.4b ports with DP 1.4a via USB Type-C port, users can take advantage of four simultaneous 4K displays. Further befitting smart retail is the device’s rich array of connectors for cameras and sensors, the output from which is enhanced by Intel Iris Xe graphics.
Industrial, Reliable & Resilient
Achieving heat dissipation via a heatsink, the UP Xtreme i12 Edge negates dust accumulation, making it a reliable fanless solution for industrial automation and smart transport applications. Along with its elemental protection, the UP Xtreme i12 Edge boasts an impressive temperature range of 32°F~140°F (0°C~60°C) and 12~36V power input range, which facilitate reliable operation in industrial environments.
Features
- 12th generation Intel Core i7/i5/i3/Celeron Processor SoC
- On board Dual Channel LPDDR5 up to 32GB
- Support 4 independent display up to 4K at 60Hz
- Support 2 x M.2 2280 KEY M (PCIE Gen4)
- Support 5G via M.2 3052
- Support Intel AX210 WiFi 6
- TPM2.0
- USB4.0
- Up to 2.5Gbps LAN speed
- Wide Range Power 12-36V
Data SheetShipping & Return
