Product Description

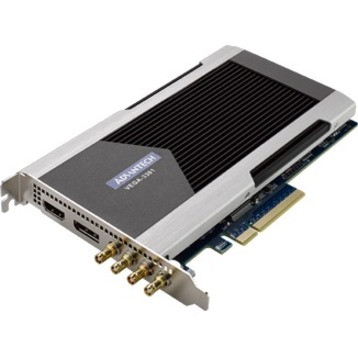

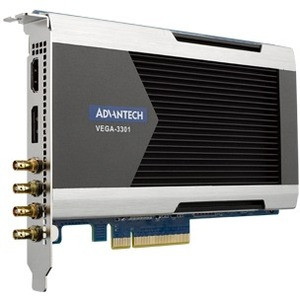

Advantech 4Kp60 HEVC Broadcast Video Encoder Card - Functions: Video Encoding - PCI Express 2.0 x8 - 3840 x 2160 - 60 fps - 4K - H.265 (HEVC) - DisplayPort - SDI - PC - Plug-in Card
VEGA-3301 enables real-time 4K UltraHD (2160p60) HEVC encoding at up to 20x less power consumption than a software-only solution. The HEVC/H.265 codec is gaining momentum because it reduces bit rates by approximately 50% when compared to an equivalent quality video stream encoded using H.264, enabling more channels or higher resolution video delivery over the same infrastructure. It is particularly relevant for 4K UltraHD transmission which requires a much higher stream capacity. These improvements are achieved at the penalty of much higher computation complexity, with up to four general purpose server class processors required to perform a 4K 60fps software-based broadcast quality HEVC encoding in real time.
VEGA-3301 is tailored for professional media processing and are capable of performing professional grade 4Kp60 Main10 profile HEVC encoding at less than 35W power consumption. The VEGA-3301 adapter additionally features 4K video capture over built-in HDMI 2.0, Display Port or 4-ch SDI-3G video inputs for acquisition-based encoding in contribution workflows. This card feature a simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks to streamline product development and their integration into existing applications.
VEGA-3301 is tailored for professional media processing and are capable of performing professional grade 4Kp60 Main10 profile HEVC encoding at less than 35W power consumption. The VEGA-3301 adapter additionally features 4K video capture over built-in HDMI 2.0, Display Port or 4-ch SDI-3G video inputs for acquisition-based encoding in contribution workflows. This card feature a simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks to streamline product development and their integration into existing applications.
Features
- 1-ch 4K (2160p) or 4-ch FHD (1080p) @ 60 fps real-time encoding in Main 8, Main 10 or Main 10 4:2:2 modes
- Less than 35W power consumption
- 4K video capture over built-in HDMI 2.0, Display Port 1.2 or 4-ch SDI-3G video inputs
- Simple-to-use API and example code for FFmpeg and GStreamer multimedia frameworks
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
Host Interface PCI Express 2.0 x8
Product Type Video Encoder
Manufacturer Part Number VEGA-3301-A0E0
Platform Supported PC
Form Factor Plug-in Card
Functions Video Encoding
Length 6.6
Manufacturer Advantech Co., Ltd
Product Model VEGA-3301
Product Name 4Kp60 HEVC Broadcast Video Encoder Card
Video Formats H.265 (HEVC)
Maximum Resolution 3840 x 2160
Brand Name Advantech
Operating System Supported Windows 8
Operating System Supported Windows 8.1
Operating System Supported Windows 7 x64
Operating System Supported Windows Server 2012 R2 x64
Operating System Supported Linux
Country of Origin Taiwan
Width 4.4
Maximum Frame Rate 60 fps
HDMI Yes;DisplayPort=Yes
SDI Yes;Screen Mode Supported=4K
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
