Advantech Compact Vision System supports 10th Gen Intel Core i CPU, 4-CH Lighting control and Isolated DIO, 4-CH Camera Interface for GigE PoE or USB 3.0 - AIIS-3411U-00A1

Product Description

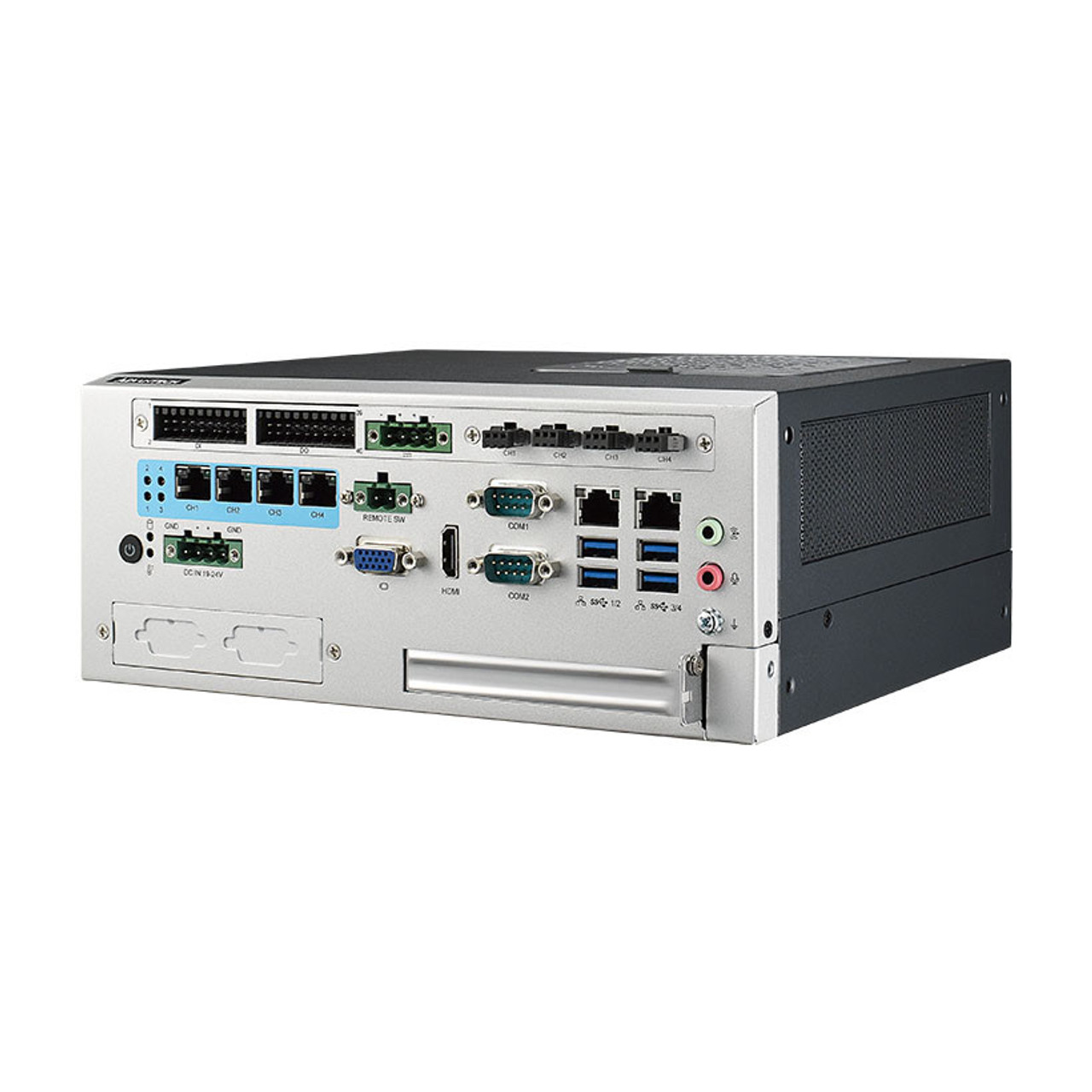

Advantech Compact Vision System - AIIS-3411U-00A1

Empower your vision applications with the Advantech AIIS-3411U-00A1 Compact Vision System. This robust system is designed to accelerate your machine vision projects with its powerful processing capabilities, versatile I/O options, and flexible camera integration.

Unleash the Power of Vision

At the heart of the AIIS-3411U-00A1 lies the 10th Gen Intel Core i CPU, delivering exceptional processing power for demanding vision tasks. This, coupled with support for GigE PoE and USB 3.0 cameras, ensures seamless image acquisition and analysis.

Comprehensive Control and Connectivity

The AIIS-3411U-00A1 provides comprehensive control over your vision system. With 4-CH Lighting control and Isolated DIO, you have precise command over illumination and external devices. The system also features a 4-CH Camera Interface, accommodating various camera setups for diverse application needs.

Elevate Your Vision Applications

The Advantech AIIS-3411U-00A1 Compact Vision System offers a powerful and versatile platform to build and deploy high-performance vision solutions. Its robust features and flexible design make it ideal for a wide range of applications, including:

• Automated Optical Inspection
• Robotics
• Quality Control
• Machine Vision

Key Features:

• Intel 10th generation Core i CPU (LGA1200)
• AIIS-3411P: 4-CH GbE PoE (Power over Ethernet)
• ．Powered device auto detection and classification
• ．IEEE 802.3af compliant, supports IEEE 1588
• ．Compatible with GigE cameras
• AIIS-3411U: 4-CH USB 3.0 with dedicated controller
• ．Maximize the USB3.0 bandwidth for multi-cameras
• ．Compatible with USB 3.0 cameras
• Optional AIIS-1882 module for lighting control and isolated DIO
• ．Supports 4-ch lighting control output powered by internal 12VDC/1A per channel with trigger input or optional external power input 12~24VDC, 2A max.
• ．Programmable delay time, PWM high/low time and lighting output duration
• ．12-ch isolated digital input and 16-ch isolated digital output and 2,500 VDC isolation protection for all I/O signals

Datasheet
