Product Description
Altronix EoC Receiver and PoE/PoE+ EoC Transceiver Switch (Kit) - Network (RJ-45) - Fast Ethernet - 10/100Base-T & TRANSCEIVER INCLUDED

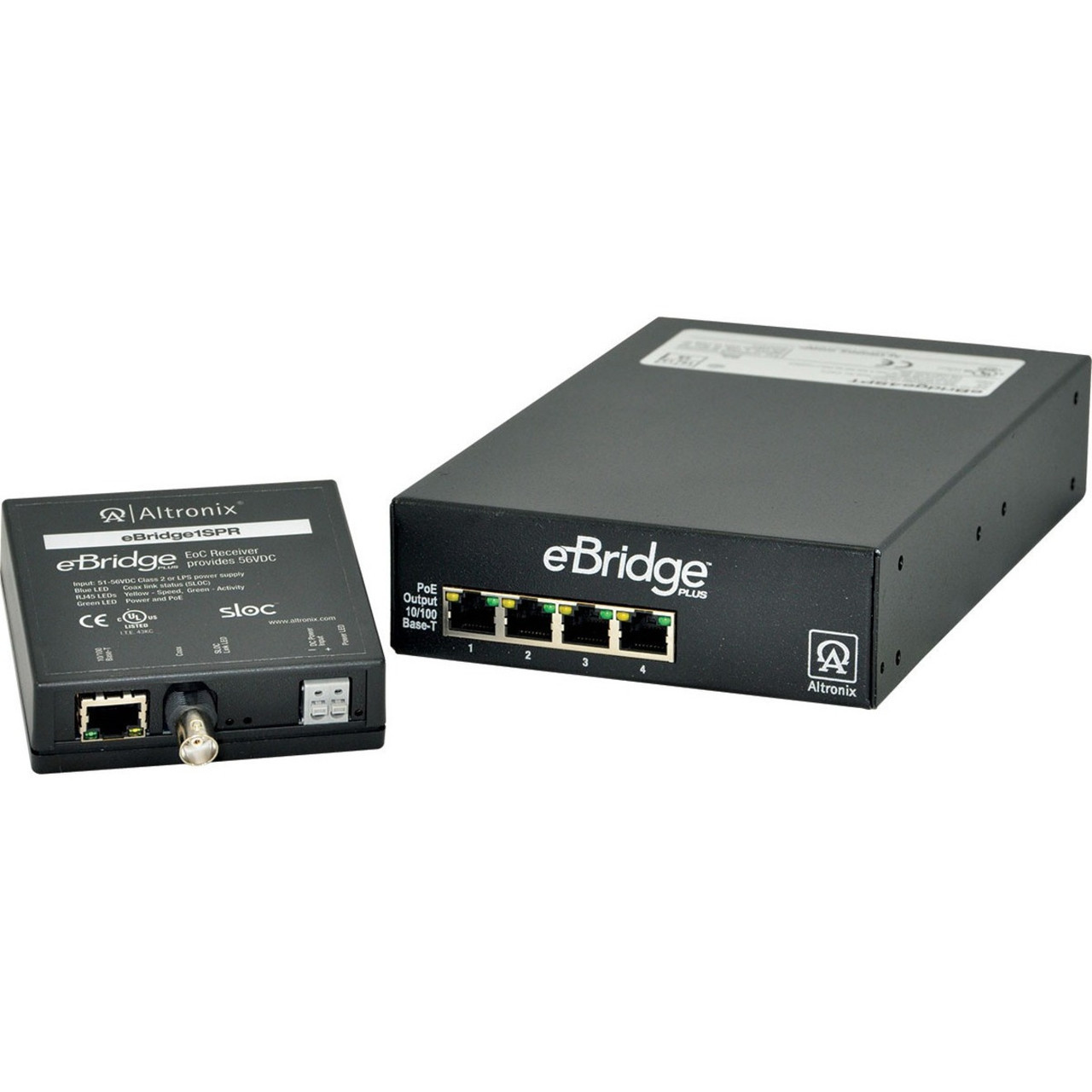

Altronix eBridge4SK kit consists of eBridge100SPR and eBridge4SPT Coax to CAT-5 Ethernet adapters/media converters that deliver data and power over coax cable. The paired set enables fast 10/100 Base-T Ethernet digital communication. eBridge4SPT allows to upgrade the existing infrastructure by replacing a single analog device with up to four (4) PoE/PoE+ devices. eBridge100SPR passes data and sends power over the coax to the eBridge4SPT. Data transmission and power over the Coax are possible up to 300m. Maximum range from headend to the PoE camera/device is 500m, taking into consideration that up to 100m of structured cable may be deployed at each end. eBridge4SK enables cost-effective system upgrades and eliminates the costs and labor associated with installing new network cabling.
- IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
- Eliminates the costs and labor associated with installing new network cabling.
- Retrofit digital IP cameras in an analog CCTV installation.
- Auto detection and protection of legacy non-PoE cameras/devices.
- Works with Megapixel, HD720, and HD1080 cameras.
- Extends Network link distance in an industrial environment.
- Upgrades deployed CCTV Coax to a digital network for Retail, Casinos, Airports, Schools, Hospitals, etc.
- UL Listed in the U.S. and Canada.
- CE Approved.
- C-Tick compliant.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
- 1 x eBridge100SPR EoC Single Port Receiver
