Product Description

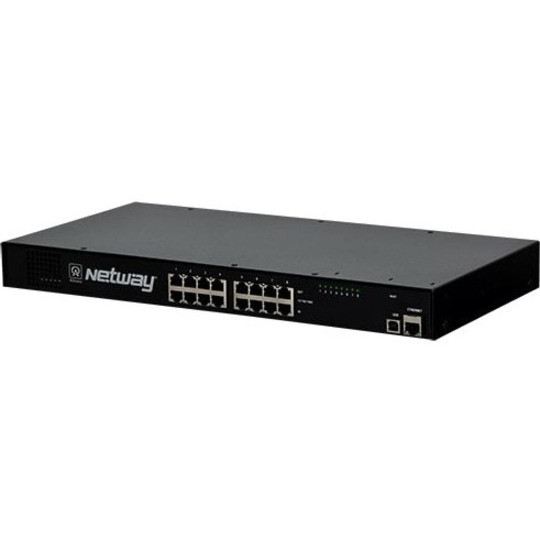

Altronix NetWay8G PoE Injector - 120 V AC, 230 V AC Input - 55 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 8 x 10/100/1000Base-T Output Port(s) - 240 W - 1U
Altronix NetWay8G is an 8 port networked Managed Midspan in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W) power per port, and passes data at 10/100/1000 mbps at distances up to 100m. Ethernet network distance can be extended up to 1000m using Altronix NetwayXT or NetwayXTX repeaters or Altronix Pace series Ethernet extenders. The unit incorporates a battery charger for installations requiring battery backup. Typical applications include Ethernet cameras and edge devices. PoE power management and monitoring is controlled through the unit's LINQ™ - based technology networked management port.
Features
- IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant.
- Eight (8) ports for cameras/edge devices over ethernet.
- Speed: 10/100/1000 Mbps.
- 30W maximum power per port.
- Port status LEDs.
- Auto detection and protection of legacy non-PoE cameras/devices.
- Real-time power diagnostics with e-mail and Windows Dashboard Alert notifications.
- Local and/or remote access to critical information via LAN/WAN.
- Event Log tracks history.
- Built-in IP networked management allows for remote camera reset and monitoring.
- Built-in battery charger.
- UL Listed in the U.S. and Canada.
- CE Approved.
- Lifetime Warranty / Made in the U.S.A.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Product Type PoE Injector
Compatibility
- Network Switch
- Network Camera
Input Voltage 120 V AC
Input Voltage 230 V AC
Manufacturer Part Number NETWAY8G
Limited Warranty Lifetime
Weight (Approximate) 6.17 lb
Certifications & Standards
- CE
- UL/cUL
- IEEE 802.3af
- IEEE 802.3at
Form Factor Rack Mountable
Manufacturer Altronix Corporation
Product Model NetWay8G
Product Name NetWay8G PoE Injector
Product Line NetWay
Protection Type Short Circuit
Rack Height 1U
Brand Name Altronix
Input Ports 1 x 10/100/1000Base-T
Output Ports 8 x 10/100/1000Base-T
Country of Origin United States
Height 1.6"
Width 19.1"
Depth 8.5"
Environmentally Friendly Yes
Environmental Certification RoHS
Maximum Input Current 3 A
Maximum Output Power 240 W
Maximum Output Voltage 55 V DC
Minimum Input Current 1.80 A
Note Images may not be exact, please check specifications.
