Product Description
Altronix NetWaySP4WP Ethernet Switch - 4 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 120 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Lifetime Limited Warranty

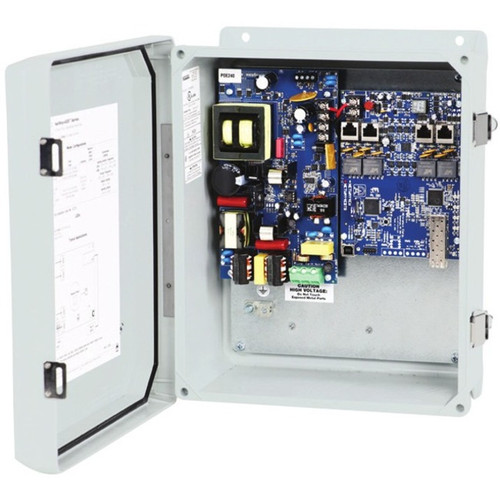

Dual 1G Fiber SFP, 4 port 10/100/1000 PoE/PoE+ configurable for 2x 60W Hi-PoE; Hardened 120W Power Supply/BatChgr & Switch Boards mounted in NEMA4/4X, IP66 rated Outdoor enclosure; LINQ
Altronix NetWaySP4WP Outdoor PoE+ Hardened Switch provides two (2) 1Gb SFP (Fiber) ports and four (4) PoE+ (30W) or two (2) Hi-PoE (60W) ports, passing data for PoE/PoE+/Hi-PoE compliant devices. Cameras/edge devices may be located up to 100m from the unit. Embedded LINQ Technology allows you to monitor, control and report power and diagnostics from anywhere.
Features
- Effectively increases available bandwidth on your network
- Quickly and easily set up a wired network with 4 networking ports
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Comes in gray color for a sophisticated and dazzling look
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Product Type
Product Type Ethernet Switch
Manufacturer Part Number NETWAYSP4WP
Power Source Power Supply
Layer Supported 2
Weight (Approximate) 10.50 lb
Manufacturer Altronix Corporation
Product Model NetWaySP4WP
Product Name NetWaySP4WP Ethernet Switch
Network Technology 10/100/1000Base-T
Network Technology 1000Base-X
Brand Name Altronix
Expansion Slot Type SFP (mini-GBIC)
Country of Origin United States
Height 13.3"
Width 11.3"
Depth 5.6"
Environmentally Friendly Yes
Environmental Certification RoHS
Ethernet Technology Gigabit Ethernet
Number of Total Expansion Slots 2
Number of SFP Slots 2
Modular Yes
Media Type Supported Twisted Pair
Media Type Supported Optical Fiber
Total Number of Network Ports 4
Port/Expansion Slot Details 4 x Gigabit Ethernet PoE+
Port/Expansion Slot Details 2 x Gigabit Ethernet Expansion Slot
