    • Arctic P12 Pro PST 120 mm PWM Fan with Cable Splitter - ACFAN00306A

    ARCTIC COOLING

    Request A Quote

    Write a Review
    SKU:
    HS-ARC-ACFAN00306A
    UPC:
    840033402767
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    ACFAN00306A
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

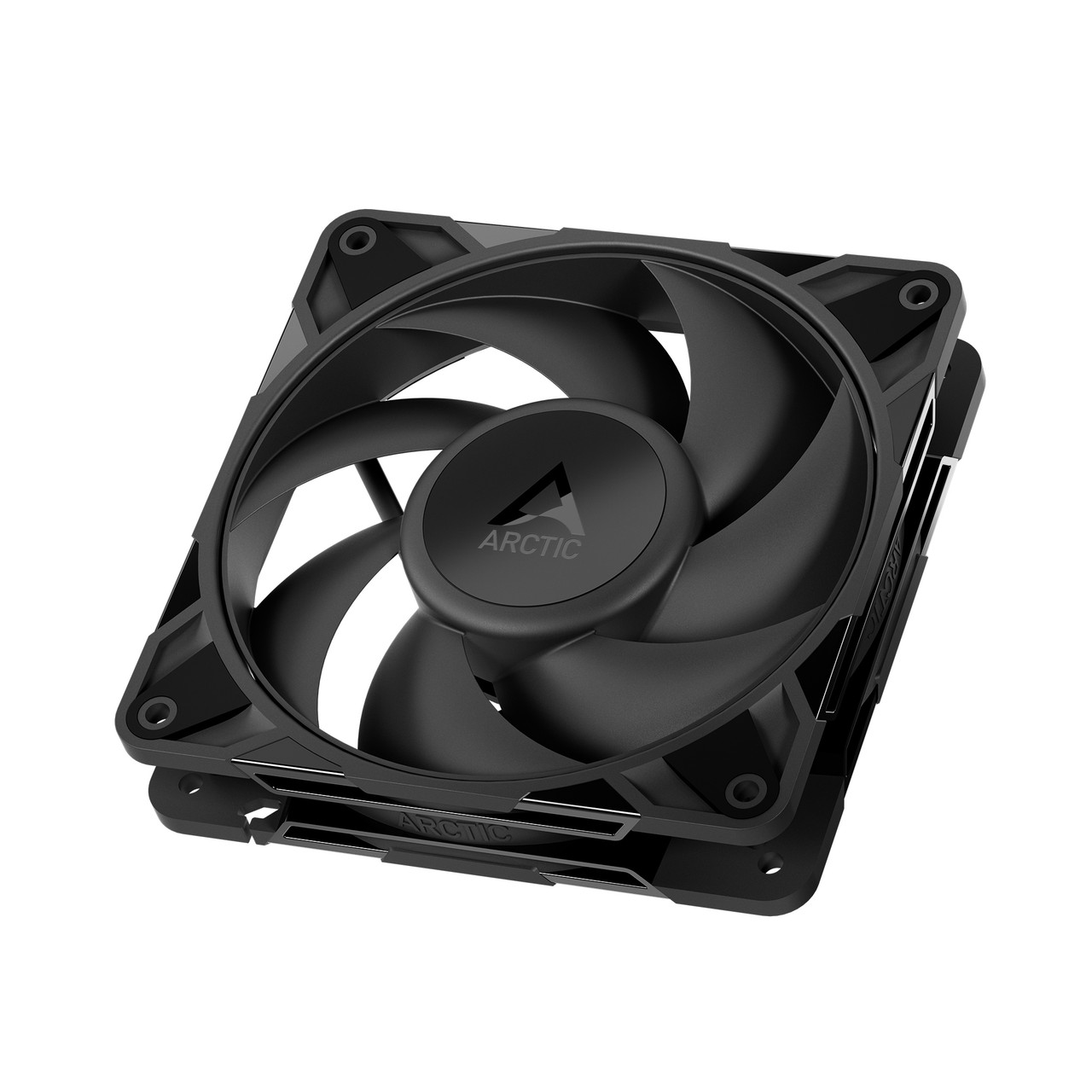

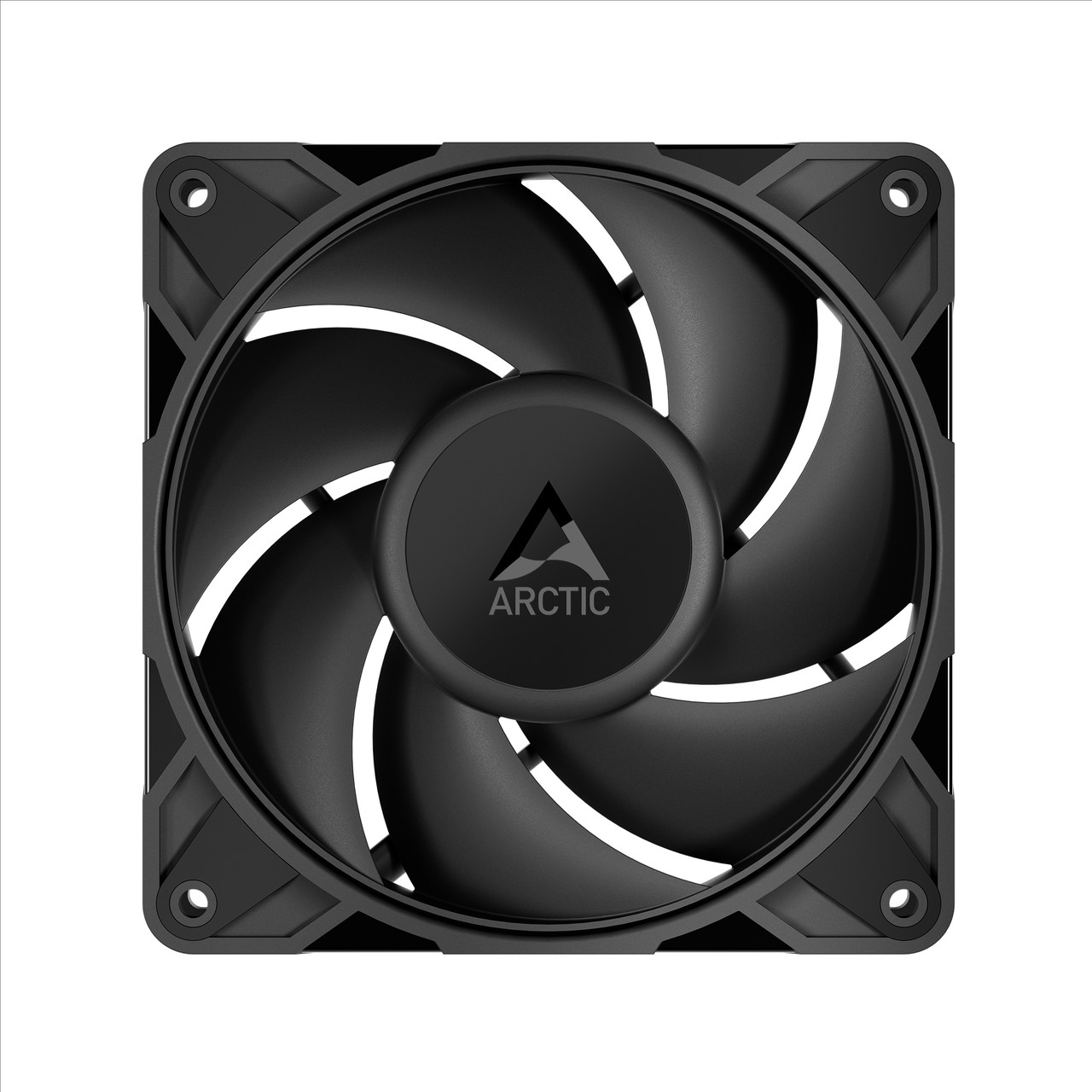

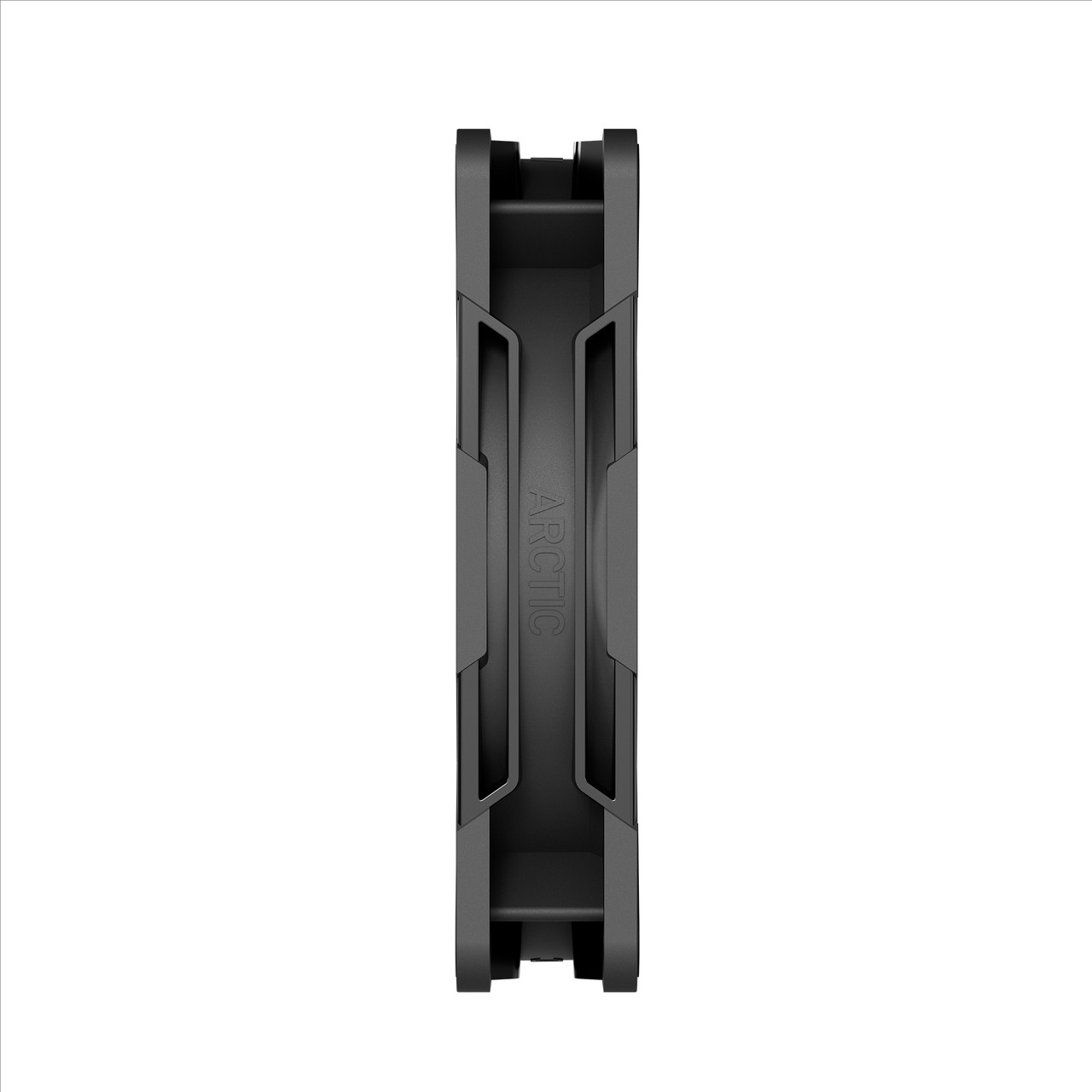

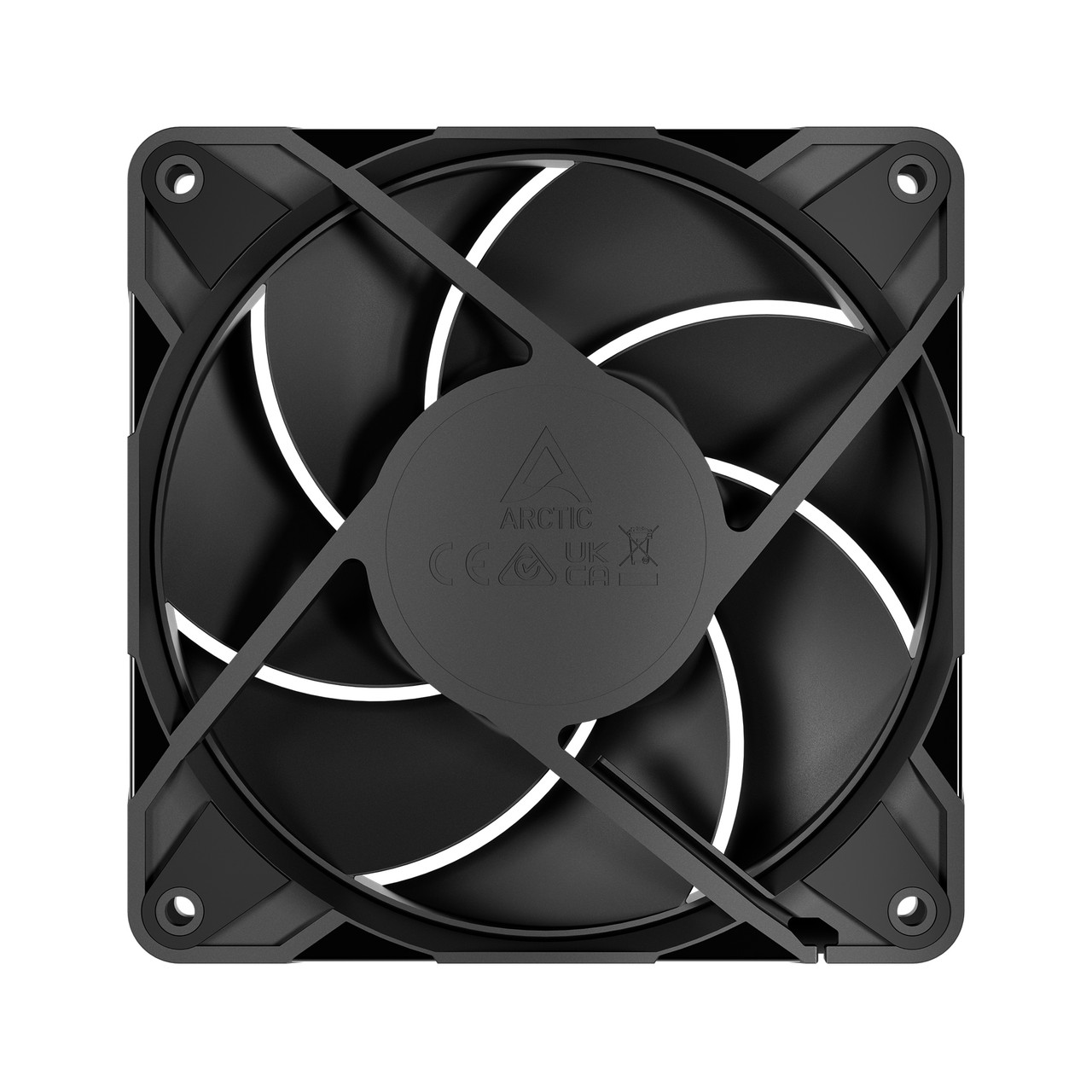

    Arctic P12 Pro PST 120 mm PWM Fan with Cable Splitter - ACFAN00306A

    Efficient Performance at High Air Resistance

    Thanks to high static pressure, the Pro fans move air effectively through tight spaces. This makes them ideal for radiators, perforated panels, and mesh filters.

    Maximum Performance, Redefined

    Revised fan blade design for an optimal balance of performance and smooth operation.

    Optimized Bearing-Shaft Design (FDB)

    A hydrodynamic bearing combined with an extended shaft ensures quieter operation by improving pressure distribution and minimizing vibrations.

    Automated Balancing

    An automated measuring and balancing process ensures exceptional precision and smooth performance by applying the balancing compound with pinpoint accuracy.

    General Specifications
    Warranty
    6 Years

    Operating Ambient Temperature
    0–40 °C

    Dimensions
    120 (L) x 120 (W) x 25 (H) mm

    Net Weight
    185 g

    Fan Specifications

    Fan Speed
    600–3000 rpm, PWM controlled
    0 rpm below 5 % PWM

    Airflow
    77 cfm | 131 m³/h

    Static Pressure
    6.9 mmH2O

    Fan Bearing
    Fluid Dynamic Bearing

    Typical Voltage
    12 V DC

    Start Up Voltage
    3.3 V DC

    Current
    0.33 A

    Cable Length
    400 mm + 80 mm Daisy-Chain Cable

    Connector
    4-Pin Fan Plug + 4-Pin Socket

    Packaging
    •  Width: 125 mm
    •  Height: 30 mm
    •  Length: 127 mm
    • Weight: 0.221 kg

    Datasheet
