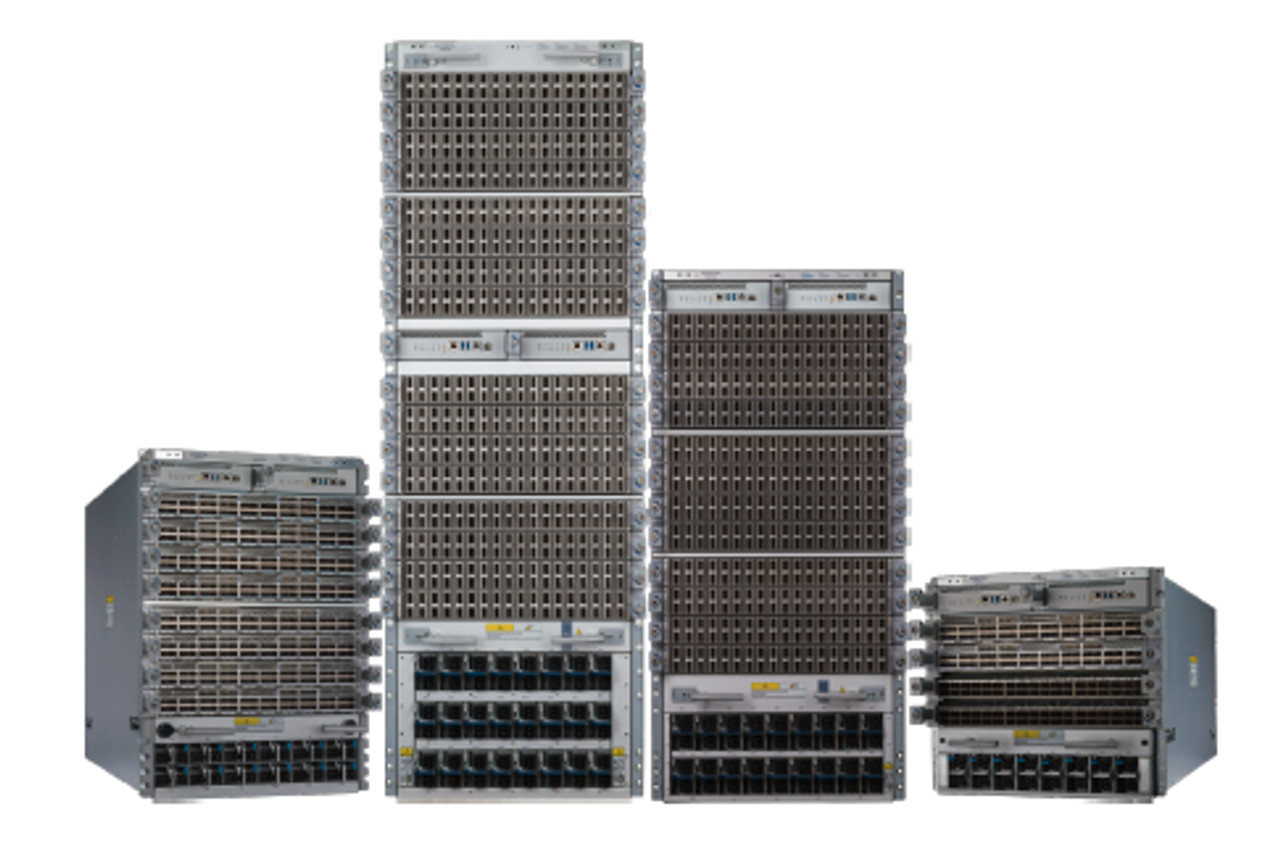

Arista 7800R3 Series, Switching Capacity 345 Tbps - 400G OSFP/QSFP-DD Interfaces 432 - Rack Units 23 - 7812R3

Product Description

Arista 7800R3 Series, Switching Capacity 345 Tbps - 400G OSFP/QSFP-DD Interfaces 432 - Rack Units 23

Arista 7800R3 Series Specifications

The Arista 7800R3 Series of modular switches deliver the industry’s highest performance with 460Tbps of system throughput to meet the needs of the largest scale data centers. With a choice of systems the 7800R Series provides four, eight, twelve or sixteen line card modules, two supervisor modules, and up to twelve fabric modules. Designed for continuous operations and with system wide monitoring of hardware and software components, simple serviceability and provisioning to prevent single points of failure the hardware architecture supports high-availability with hot-swap of all components.

Arista 7800R3 Series Architecture

The Arista 7800R3 Series leverages a deep buffer virtual output queue (VOQ) architecture that is 100% efficient, eliminates head-of-line (HOL) blocking and virtually eliminates packet drops even in the most congested network scenarios. An advanced traffic scheduler fairly allocates bandwidth between all virtual output queues while accurately following queue disciplines including weighted fair queuing, fixed priority, or hybrid schemes. As a result, the Arista 7800R3 Series can handle the most demanding data center requirements with ease, including mixed traffic loads of real-time, multicast, and storage traffic while still delivering low latency.

7800R3 System Comparisons

Available in a compact system design, as a choice of 16, 12, 8 and 4 slots, the Arista 7800R3 Series enables a range of wirespeed ports from 10G to 400G. It lowers total cost of ownership as it is designed to be efficient with power per port as low as 25W per 400G port which combined with front to rear cooling to optimize the data center environment produces the most reliable, dense and power efficient modular switch. The 7800R3 Series offer a broad choice of line cards with a choice of speed and density options up to 48 ports of wire speed 100G and 40G, or 36 ports of 400G. Every 400G interface supports a choice of speeds including 25G and 50G providing unparalleled flexibility and the ability to seamlessly transition data centers to the next generation of Ethernet performance.Combined with the highly modular, robust Extensible Operating System (EOS), a dynamic smart deep buffer architecture with virtual output queuing for lossless forwarding, low latency and wire speed performance, the Arista 7800R3 line cards enable scalable and high performance data center solutions.

Scalability

Each 7800R3 Series line card delivers a consistent set of features supporting layer 2 and layer 3 data center designs with predictable and linear scaling. Arista's FlexRoute Engine enables full Internet routing coupled with support for a variety of IP/MPLS/VXLAN protocols.Undimensional scaling maxima with currently available MDB profiles. Available resources depend on user configuration.
