Product Description

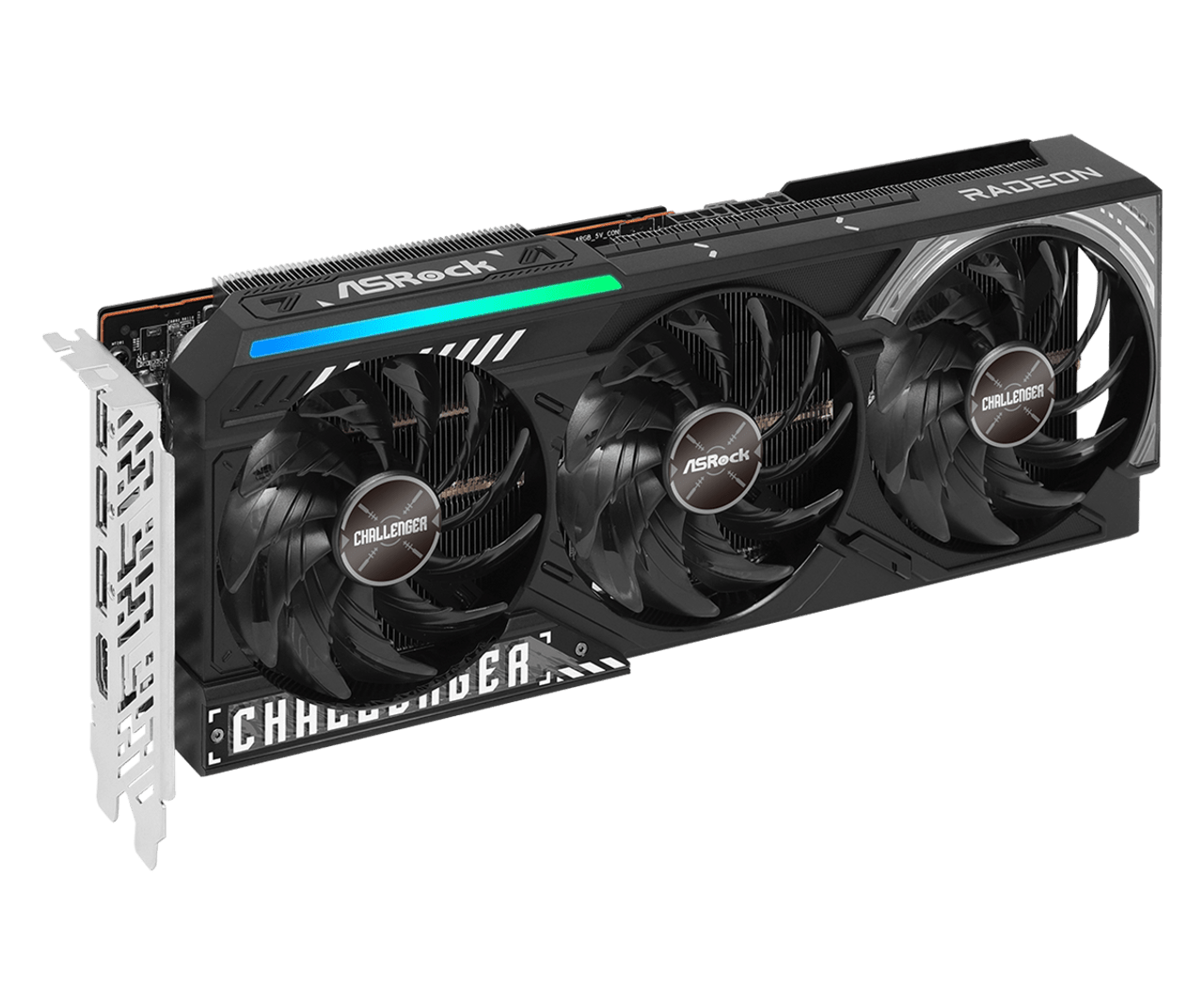

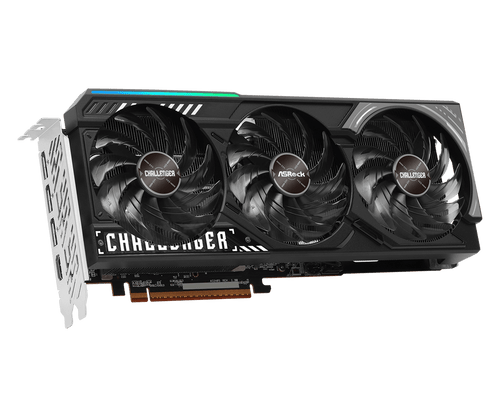

ASRock AMD Radeon RX 9070 Challenger 16GB - 16GB GDDR6 on 256-Bit Memory Bus - RX9070 CL 16G
- Clock: GPU / Memory
Boost Clock**: Up to 2520 MHz / 20 Gbps
Game Clock*: 2070 MHz / 20 Gbps
- Key Specifications
AMD Radeon RX 9070 GPU
16GB GDDR6 on 256-Bit Memory Bus
56 AMD RDNA Compute Units (With RT+AI Accelerators)
PCI Express 5.0 Support
2 x 8-pin Power Connectors
3 x DisplayPort 2.1a / 1 x HDMI 2.1b
- Key Features
Triple Fan Design
Stylish Metal Backplate
LED Indicator
LED On/Off Switch
Striped Axial Fan
0DB Silent Cooling
Ultra-fit Heatpipe
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
LED Indicator - More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
LED Switch - Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste - Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Striped Axial Fan - Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base - Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page to receive a custom quote on your specific configuration or part/service number not find on our online catalogue. Financing Options Available for all USA customersProduct Videos
Custom Field
MPN RX9070 CL 16G
Graphics Engine AMD Radeon RX 9070
Bus Standard PCI Express 5.0 x16
Memory GDDR6 16GB
Engine Clock Boost Clock: Up to 2520 MHz, Game Clock: 2070 MHz
Stream Processors 3584
Memory Clock 20 Gbps
Memory Interface 256-bit
Resolution Digital Max Resolution: 7680 x 4320
Interface 3x DisplayPort 2.1a, 1x HDMI 2.1b
Recommended PSU 700W
Power Connector 2x 8-pin
Accessories 1x Quick Installation Guide
Dimensions 290 x 123 x 51mm
Net Weight 918g
Note Images may not be exact, please check specifications.
