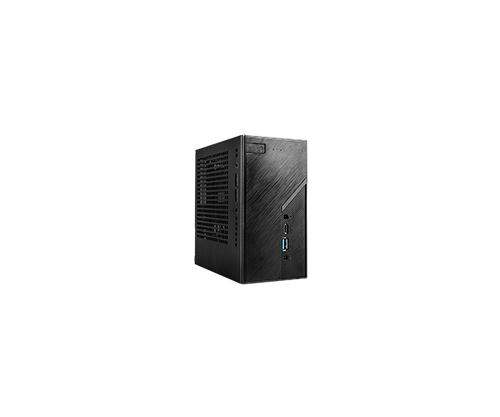

AsRock DeskMini X600/USB4 Series - 1.92L Mini PC - AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors, up to 65W

Product Description

AsRock DeskMini X600/USB4 Series - 1.92L Mini PC - AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors, up to 65W

• 1.92L Mini PC
  CPU: Supports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors, up to 65W
  Memory: Dual DDR5 6400+(OC)MHz memory, Max. 128GB
• Triple Video Outputs：
  1 x USB4
  1 x HDMI
  1 x DisplayPort
• Quad Storage Devices:
  1 x M.2 (PCIe Gen5 x4) Slot
  1 x M.2 (PCIe Gen4 x4) Slot
  2 x 2.5" HDD/SSD
• Abundant USB Ports:
  1 x USB4
  1 x USB 3.2 Gen1 Type-C
  3 x USB 3.2 Gen1 Type-A

Specifications

• CPU
  - Supports AMD Socket AM5 Ryzen 9000/8000/7000 Series Processors, up to 65W
• Chipset
  - AMD X600
• Cooler
  - Supports AMD AM5/AM4 Cooler (Max. Height ≦ 47mm)
• Memory
  - Supports 2 x SO-DIMM DDR5-6400+(OC)MHz memory, Max. 128GB (non-ECC)
• Graphics
  - Integrated AMD RDNA graphics (Actual support may vary by CPU)
• Graphics Output
  - 1 x DisplayPort 1.4 (4K@120Hz)
  - 1 x HDMI 2.1 (4K@120Hz)
  - 1 x USB4*



  *1 x Type-C with USB4 for Ryzen 8000G Series Processors; with DP Alt mode for Ryzen 9000/7000 Series Processors
• Audio
  - Realtek ALC269 Audio Codec
• Storage
  - 2 x SATA3 6Gb 2.5-inch 7mm/9.5mm Hard Drive
  - 1 x M.2 Socket (M2_1), support type 2280 PCIe Gen5x4 (128 Gb/s) mode*
  - 1 x M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*



  *Supports NVMe SSD as boot disks
  To achieve PCIe Gen5 x4 speeds on the Blazing M.2 Socket (M2_1), a Raphael CPU is required.
• RAID
  - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
• LAN
  - 2.5 Gigabit LAN (Dragon RTL8125BG)
• WLAN
  - 1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module
• Front I/O
  - 1 x MIC-in
  - 1 x USB 3.2 Gen1 Type-C
  - 1 x USB 3.2 Gen1 Type-A
  - 1 x Headphone/Headset Jack

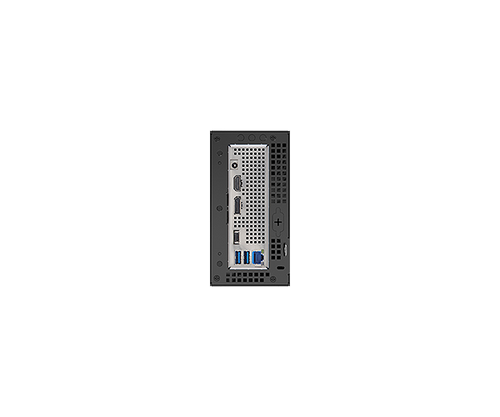

• Rear I/O
  - 1 x DC-In Jack (Compatible with the 19V power adapter)
  - 1 x USB4*
  - 2 x USB 3.2 Gen1 Type-A
  - 1 x RJ-45 LAN Port (2.5G)



  *USB4 for Ryzen 8000G Series Processors; USB 3.2 Gen2 (supports DP Alt mode) for Ryzen 9000/7000 Series Processors
• Connectors
  - 1 x USB 2.0 Header
  - 1 x Front Panel Header
  - 2 x 4-Pin fan connectors (CPU, SYS)
  - 1 x Internal Speaker Header (4-Pin)
  - 1 x Chassis Intrusion Header (2-Pin)
  - 1 x Audio Header (4-Pin)
• Accessory
  - 2 x SATA Data with Power Cable
  - 1 x 120W/19V adapter
  - 1 x Screws Pack
  - 1 x Intel AC-3168 Wi-Fi Kit (DeskMini X600W/USB4)
• Dimension
  - 155 x 155 x 80 mm (1.92L)
• OS
  - Microsoft Windows 11 64-bit
