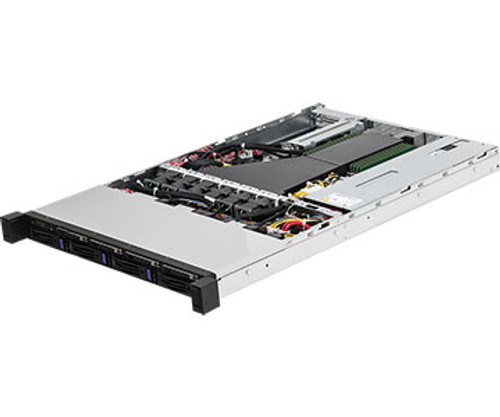

Product Description
| System | |
| Form Factor | 1U Rackmount |
| Dimensions | 676.5 X 438 X 43.4 mm |
| Support MB | SPC621D8U-2T |
| Front Panel | |
| Buttons | Power button w/ LED, ID button w/ LED, System reset |
| LEDs | HDD Activity, LAN 1/2, System Event |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 4 Hot-swap 2.5" NVMe (PCIe3.0 x4)/SATA drive bays 4 Hot-swap 3.5" SATA drive bays |
| Internal Side | 1 M-key (PCIe3.0 x4 or SATA 6Gb/s), supports 2280 form factor |
| Power Supply | |
| Type | 1+1 Slim PSU |
| Output Watts | 750W |
| Efficiency | 80-PLUS Platinum |
| System Fan | |
| Fan | 6 40x56 mm fans |
| Processor System | |
| CPU | Supports 3rd Gen Intel® Xeon® Scalable processors |
| Socket | Single Socket P+ (LGA 4189) |
| Chipset | Intel® C621A |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series |
| Max. Capacity per DIMM | RDIMM: up to 64GB RDIMM-3DS: up to 256GB LRDIMM: up to 128GB LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency | max. 3200MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | 1 FHHL PCIe4.0 x16 via RB1UX16_G4 |
| Ethernet | |
| Additional GbE Controller | Intel® X710-AT2: 2 RJ45 (10 GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2500 |
| IPMI Dedicated GLAN | 1 x Realtek RTL8211E for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2500 |
| VRAM | DDR4 16MB |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE), 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI 256 Mb SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 4.0, SMBIOS 3.3, Plug and Play (PnP) |
| Hardware Monitor | |
| Temperature | CPU, PCH, MB, Card side Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | CPU1_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH 3.3V,5V,12V,3.3VSB, 5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | - Non operation humidity: 20% ~ 90% ( Non condensing) |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request pageProduct Videos
Custom Field
NOTE Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
MPN 1U4L4E-ICX/2T1U4L4E-ICX/2T1U4L4E-ICX/2T
