Product Description

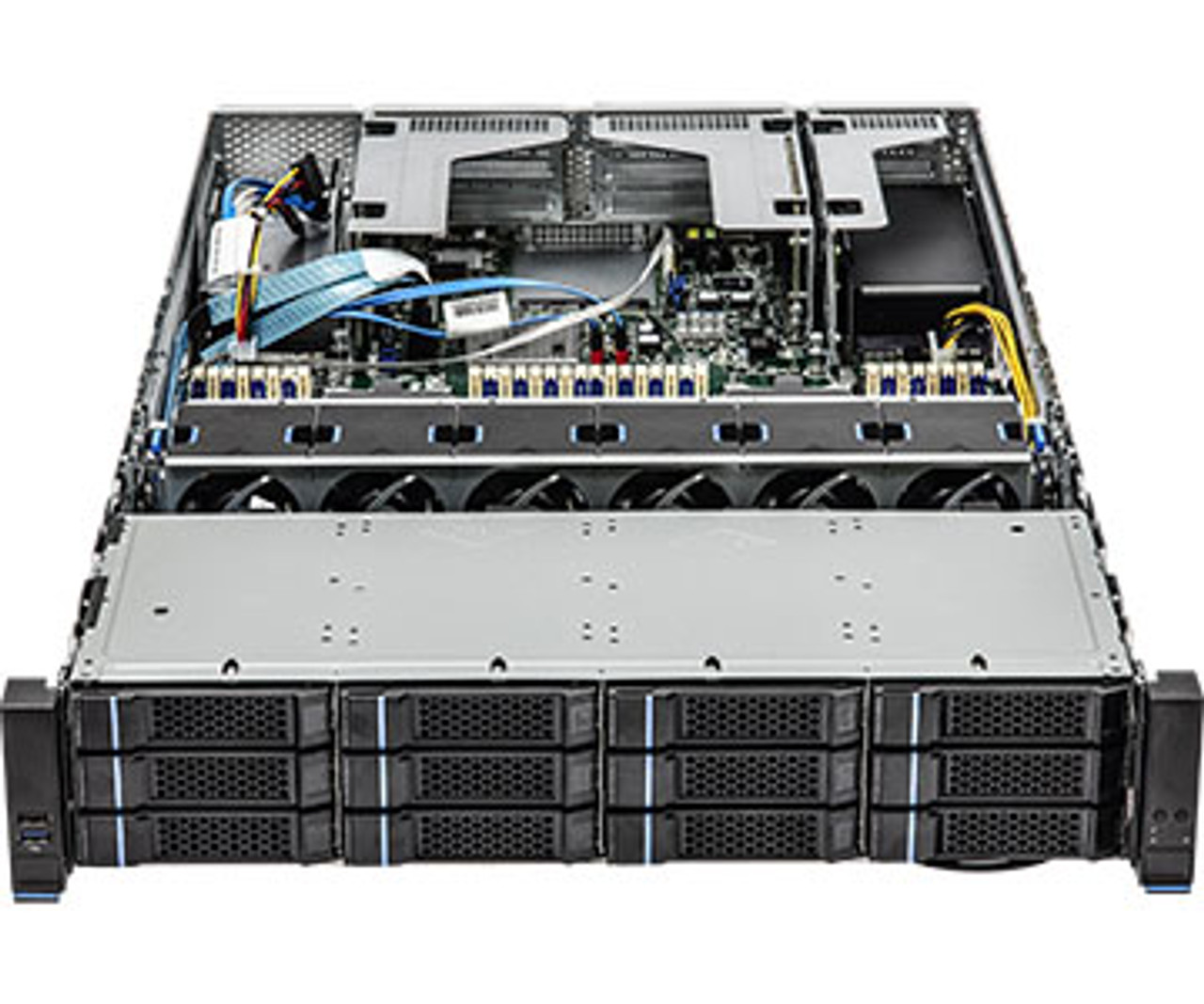

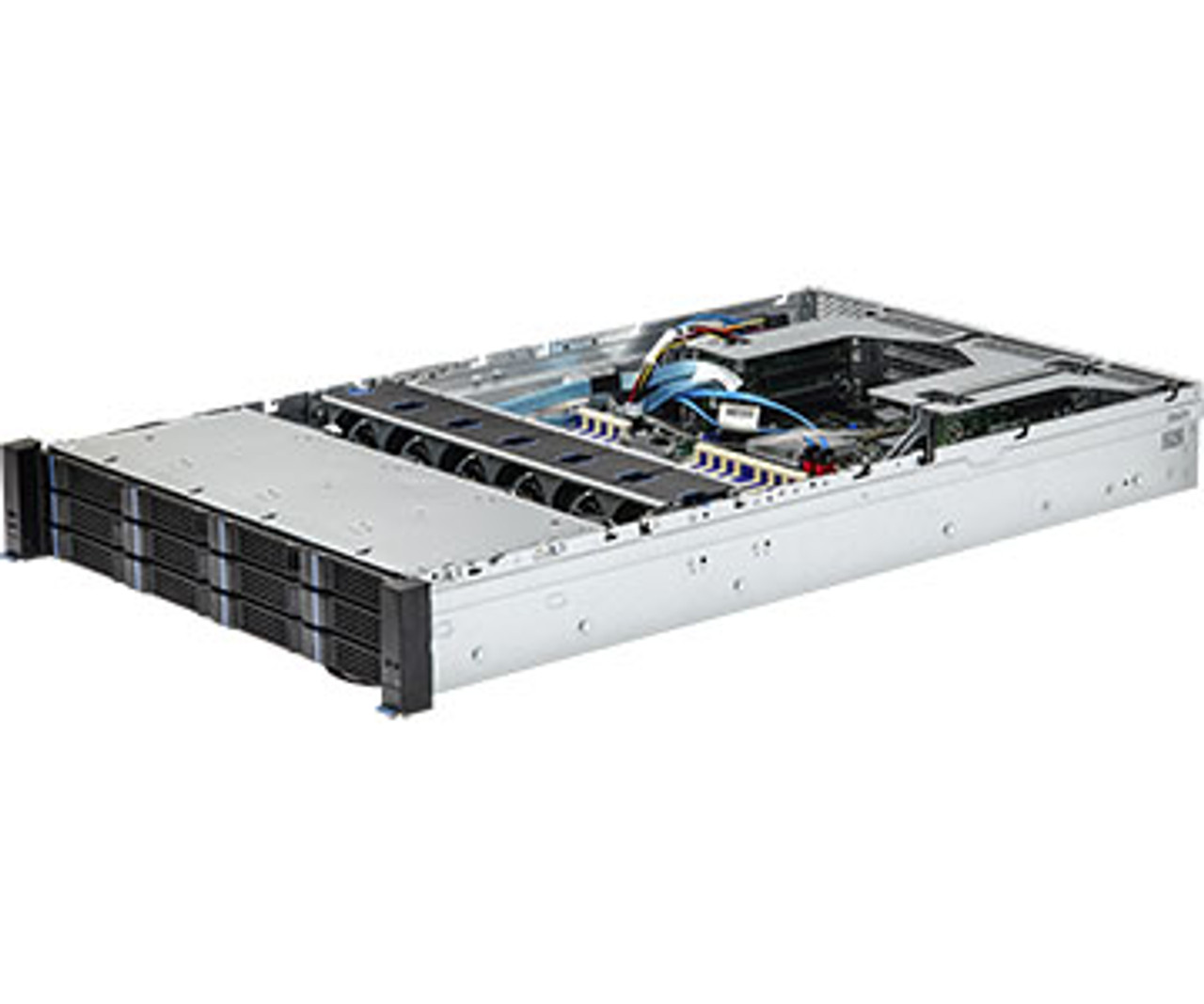

- 2U Rackmount with 1+1 1600W CRPS
- Dual Socket P+ (LGA 4189), supports 3rd Gen Intel® Xeon® Scalable processors
- 16+16 DIMM slots (2DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series
- 12 hot-swap 3.5"/2.5" drive bays, 2 fixed 2.5" SATA drive bays
- 4 FH PCIe4.0 x16, 2 FH PCIe4.0 x8, 1 low-profile PCIe4.0 x16, 1 low-profile PCIe4.0 x8
- Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
- 2 RJ45 (1GbE) by Intel® i350-AM2
- 1 OCP NIC 3.0 (PCIe4.0 x16)
- Remote management (IPMI)
| System | |
| Form Factor | 2U Rackmount |
| Dimensions | 779.5 mm X 447.6 mm X 87 mm |
| Support MB | SP2C621D32TM3 |

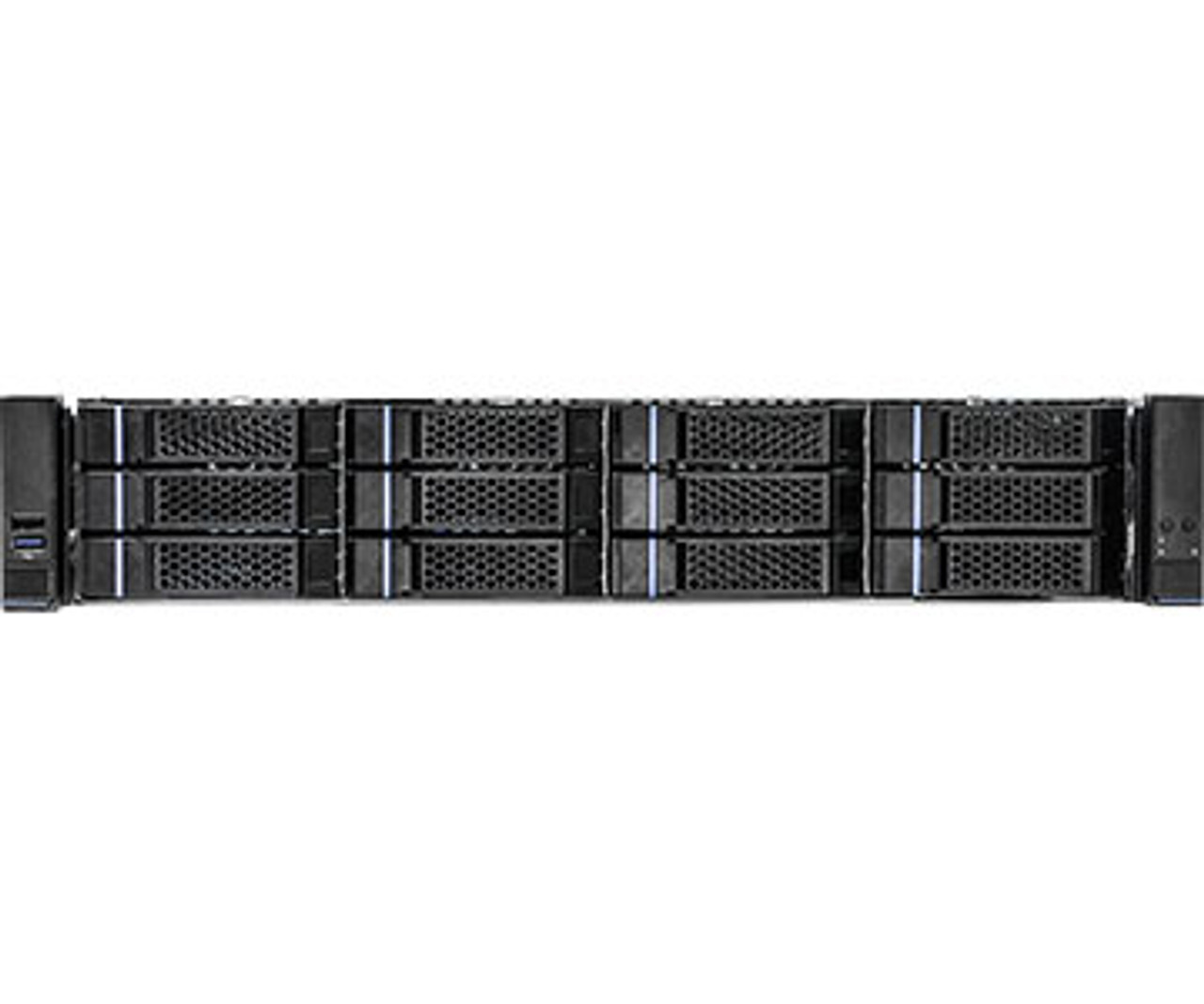

| Front Panel | |
| Buttons | Power, UID, Reset |
| LEDs | Power Status, LAN Activity, HDD Activity, System status |
| I/O Ports | 1 Type-A (USB3.2 Gen1), 1 Type-A (USB2.0) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 12 hot-swap 3.5"/2.5" drive bays supports 8 SATA HDD/SSD and 4 NVMe (PCIe3.0 x4) SSD* *For more NVMe SSD support, please contact ASRock Rack |
| Front Side Backplane | 12-port NVMe/SATA/SAS* passive backplanes *SAS drive is only supported with additional RAID/HBA cards |
| Internal Side | 2 fixed 2.5" SATA drive bays 2 M-key* (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor [PCH] * 1 fixed SATA drive bay share SATA with M2_1, and will be disabled when M2_1 populated with SATA device |
| Power Supply | |
| Type | 1+1 CRPS |
| Output Watts | 1600W |
| AC Input | 100-240V, 47-63Hz |
| System Fan | |
| Fan | 6 PWM hot-swap 60 x 38 mm fans |
| Processor System | |
| CPU | Supports 3rd Gen Intel® Xeon® Scalable processors |
| Socket | Dual Socket P+ (LGA 4189) |
| Chipset | Intel® C621A |
| System Memory | |
| Supported DIMM Quantity | 16+16 DIMM slots (2DPC) |
| Supported Type | Supports DDR4 288-pin RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, Intel® Optane™ Persistent Memory 200 series |
| Max. Capacity per DIMM | RDIMM: up to 64GB RDIMM-3DS: up to 256GB LRDIMM: up to 128GB LRDIMM-3DS: up to 256GB |
| Max. DIMM Frequency | max. 3200MHz |
| Voltage | 1.2V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 32 | SLOT1: 2 FH PCIe4.0 x16 or 1 FH PCIe4.0 x16, 2 FH PCIe4.0 x8 via RB251-X8X16X16 [CPU0] SLOT2: 2 FH PCIe4.0 x16 or 1 FH PCIe4.0 x16, 2 FH PCIe4.0 x8 via RB251-X16X8X16 [CPU1] |
| PCIe x 16 | SLOT3: 1 low-profile PCIe4.0 x16 or 2 low-profile PCIe4.0 x8 via RB251-X8X16 [CPU1] |
| Ethernet | |
| Additional GbE Controller | Intel® i350-AM2: 2 RJ45 (1GbE) |
| Mezzanine | 1 OCP NIC 3.0 (PCIe4.0 x16) [CPU0] |

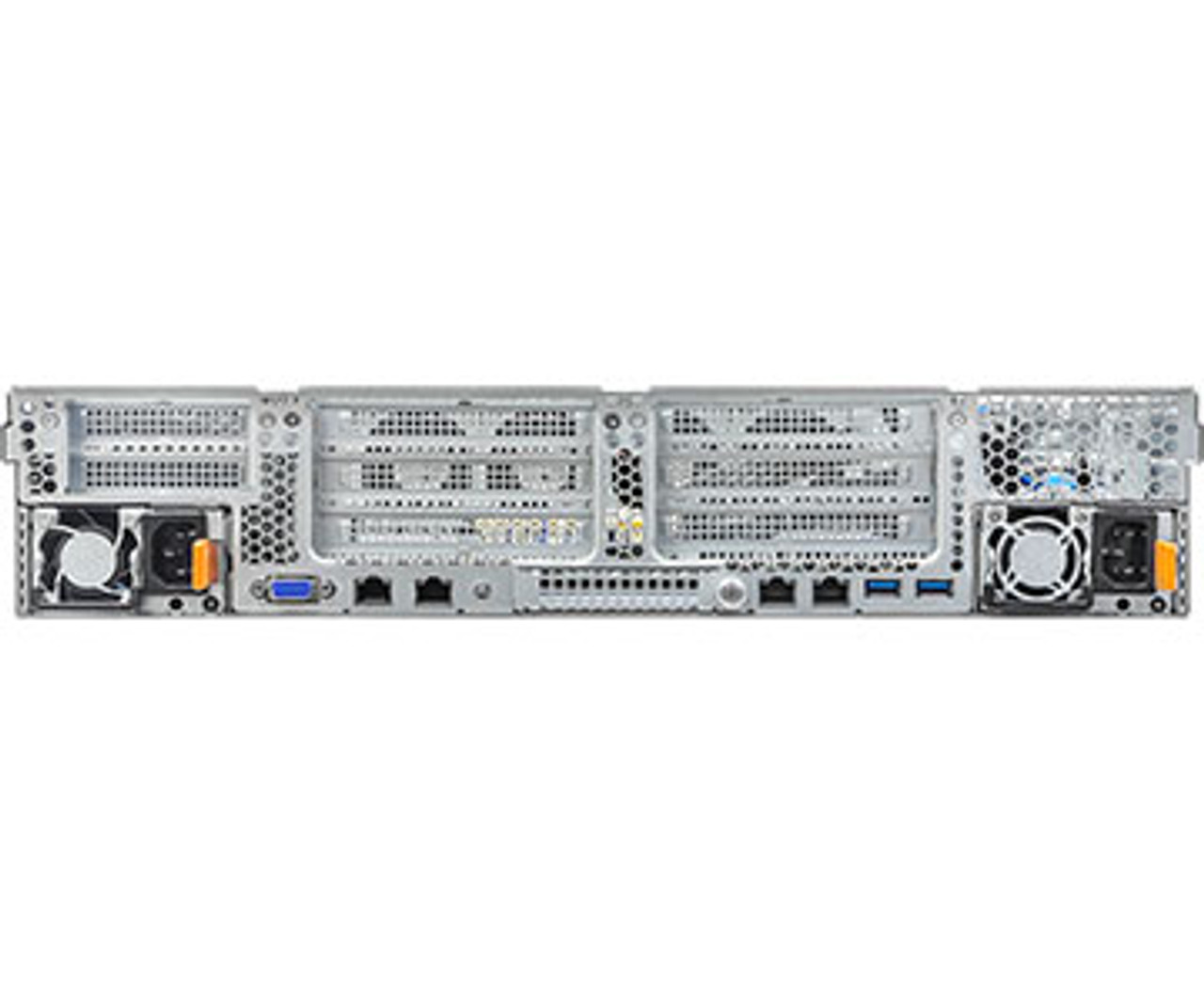

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 |
| Serial Port | 1 RJ45 (COM) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE), 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | 256Mb SPI Flash ROM |
| BIOS Features | AMI UEFI BIOS |
| Hardware Monitor | |
| Temperature | CPU, PCH, MB, Card side Temperature Sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | CPU1_PVCCIN, CPU2_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH,PVDDQ_IJKL,PVDDQ_MNOP, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH, 3.3V,5V,12V,3.3VSB, 5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
