AsRock Rack 4U36L6E-MILAN2/2T - 4U with 1+1 Platinum 1200W CRPS Dual Socket SP3 (LGA 4094), supports AMD EPYC 7003 (with AMD 3D V-Cache Technology)/7002 series 8+8 DIMM slots, support DDR4 RDIMM/ LRDIMM - 4U36L6E-MILAN2/2T

SKU # HS-ASR-4U36L6E-MILAN2/2T

Condition # New

Save big right now

$2,391.64

UPC:: 4710483940941
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |

One-Click Purchasing

Fast Express Shipping

Safe & Secure Checkout

Purchase Protection

Every Order is Protected By BuySafe

Our commitment to sustainability ensures that every purchase supports responsible operations and a healthier planet.

SSL Secure Payment

We make sure your orders are processed without delay — every purchase is prepared and dispatched the next working day.

Express Shipping

Price Match Guarantee

Your payment is secure

Your privacy and security are our top priority. Our advanced encrypted payment system protects your information during every transaction.

Get expert help

Our team of experienced professionals is always ready to help.

Overview
Shipping
Warranty
FAQ's

Product Details

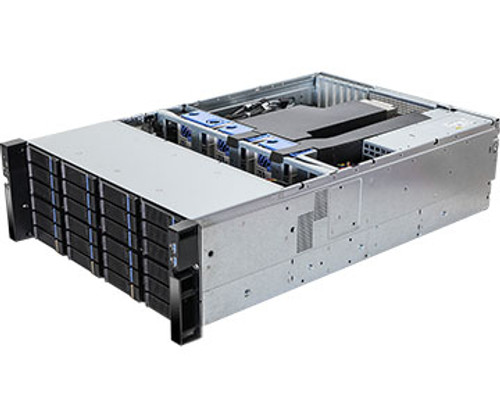

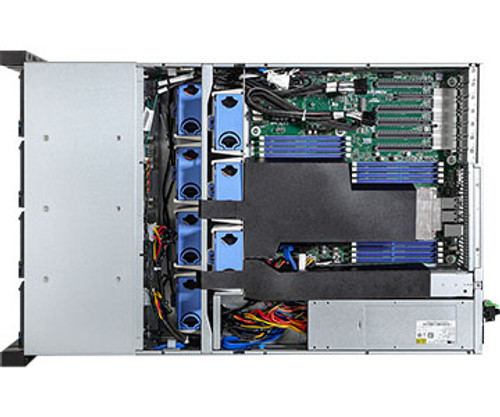

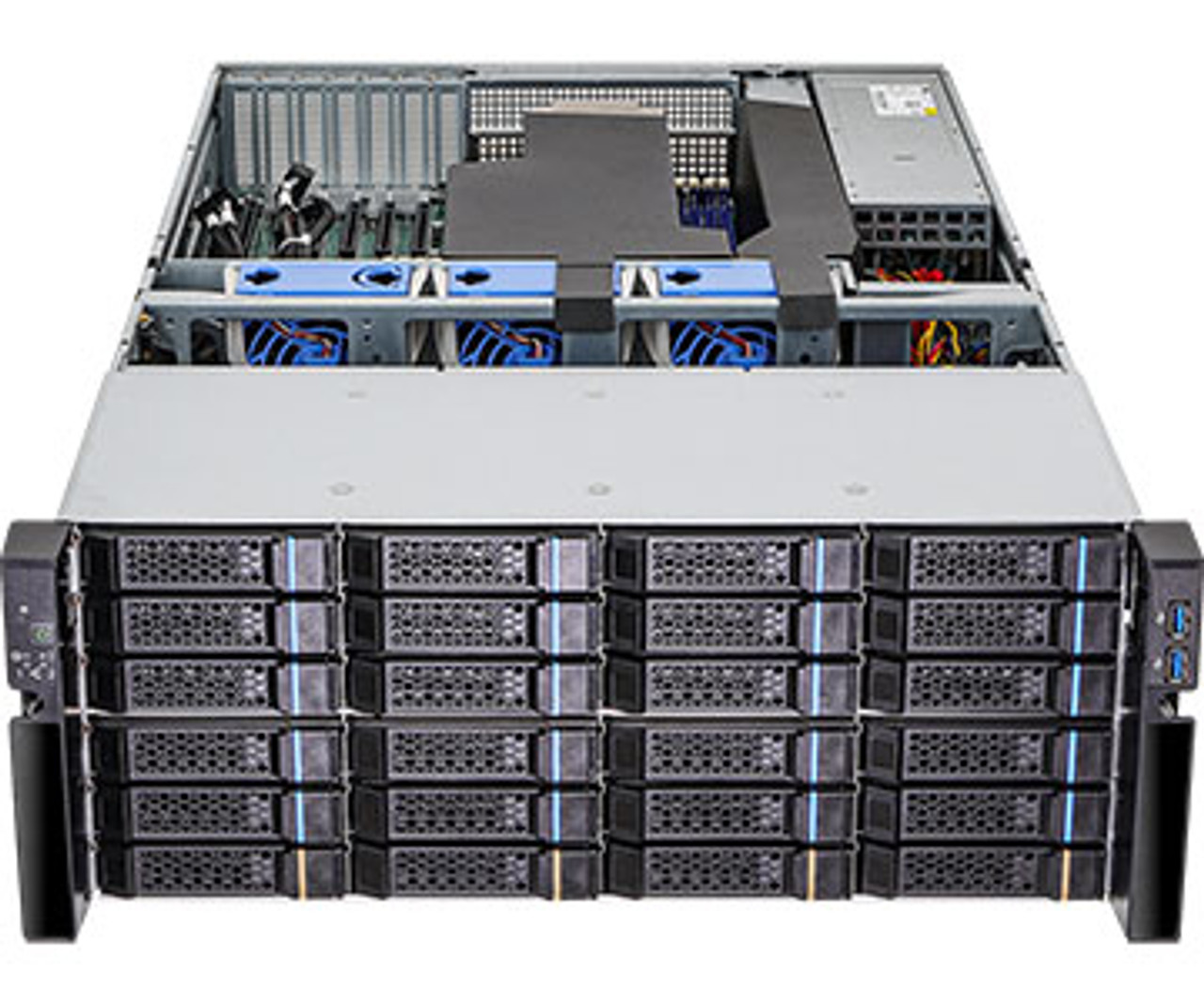

4U Rackmount with 1+1 Platinum 1200W CRPS
Dual Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
8+8 DIMM slots, support DDR4 RDIMM/ LRDIMM
32 Hot-swap 3.5" SATA/SAS drive bays, 4 Hot-swap 3.5" SATA/SAS or 4 Hot-swap 2.5" NVMe (PCIe3.0 x4) drive bays, 2 Hot-swap 2.5" NVMe drive bays
Dual 10GbE RJ45 by Intel^® X550-AT2
Remote management (IPMI)

System
Form Factor	4U Rackmount
Dimensions	699 mm x 432 mm x 176 mm, 27.52” x 17.01” x 6.93”
Support MB	ROME2D16-2T
Front Panel
Buttons	System reset, Power
LEDs	Power, LAN1 activity, LAN2 activity, System fail, HDD status
I/O Ports	2 Type-A (USB3.2 Gen1)
External Drive Bay / Storage
Front Side Drive Bay	20 Hot-swap 3.5" SATA/SAS drive bays* 4 Hot-swap 3.5" SATA/SAS drive bays* or 4 Hot-swap 2.5" NVMe (PCIe3.0 x4) drive bays * Additional RAID/HBA card required to support the 36 x 3.5" SATA/SAS drives
Front Side Backplane	24-port 12Gbps active backplane, 4-port PCIe3.0 backplane
Rear Side	12 Hot-swap 3.5'' SATA/SAS drive bays*, 2 Hot-swap 2.5'' NVMe (PCIe3.0 x4) drive bays
Rear Side Bakplane	12-port 12Gbps active backplane, 2-port PCIe3.0 backplane
Internal Side	1 M-key (PCIe4.0 x4 or SATA 6Gb/s), supports 22110/2280/2242 form factor [CPU0] 1 M-key (PCIe4.0 x4), supports 22110/2280/2242 form factor [CPU0]
Power Supply
Type	1+1 CRPS
Output Watts	1200W
Efficiency	80-PLUS Platinum
AC Input	Low Line: 100-127Vrms, 50/60Hz, High Line: 200-240Vrms, 50/60Hz
System Fan
Fan	7 Hot-swap 80x38mm fans
Processor System
CPU	Supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology)/7002 Series Processors A BIOS update is required to support AMD EPYC™ 7003 series processors with AMD 3D V-Cache™ Technology
Socket	Dual Socket SP3 (LGA 4094)
Thermal Design Power	240W
Chipset	System on Chip
System Memory
Supported DIMM Quantity	8+8 DDR4 288-pin DIMM slots (1DPC)
Supported Type	DDR4 288-pin RDIMM, LRDIMM
Max. Capacity per DIMM	RDIMM: up to 64GB, LRDIMM: up to 256GB
Max. DIMM Frequency	RDIMM/ LRDIMM: up to 3200 MHz
Voltage	1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16	Slot 6: low-profile PCIe 4.0 x16 [CPU1] Slot 5: low-profile PCIe 4.0 x16 [CPU0] Slot 4: low-profile PCIe 4.0 x16 [CPU1] Slot 3: low-profile PCIe 4.0 x16 [CPU0] Slot 1: low-profile PCIe 4.0 x16 [CPU0]
PCIe x 8	Slot 2: low-profile PCIe 4.0 x8 [CPU1]
Server Management
BMC Controller	ASPEED AST2500: IPMI2.0 with iKVM and vMedia support
Rear I/O
UID Button/LED	1 UID w/ LED
VGA Port	1 DB15 (VGA)
USB 3.2 Gen1 Port	2 Type-A (USB3.2 Gen1)
RJ45	2 RJ45 (10GbE) by Intel^® X550-AT2 1 x Realtek RTL8211E for dedicated management GLAN
System BIOS
BIOS Type	32MB AMI UEFI Legal BIOS
BIOS Features	Plug and Play (PnP), ACPI 6.3 Compliance Wake Up Events, SMBIOS 3.3.0, ASRock Rack Instant Flash
Hardware Monitor
Temperature	CPU, MB, Card side, X550 Temperature Sensing
Fan	Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control
Voltage	Vsoc,Vcpu, VCCM, +3V,+5V, +12V, BAT, +1.8VSB, +3VSB, +5VSB
Environment
Temperature	Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
Humidity	Non operation humidity: 20% ~ 90% ( Non condensing)
