Product Details

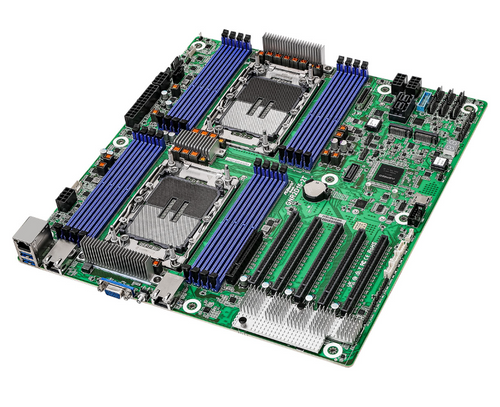

Unleash Next-Gen Performance with the ASRock Rack GNRD8-2L2T Motherboard
Experience unparalleled computing power and scalability with the ASRock Rack GNRD8-2L2T motherboard, engineered for demanding server and workstation environments. This CEB form factor motherboard (12" x 10.5") packs cutting-edge features to propel your applications to new heights.
Powerhouse Performance
Harness the raw processing capabilities of Intel's latest Xeon 6700E-series processors. With support for up to 8 DDR5 RDIMMs in a 1DPC configuration, unlock massive memory bandwidth and lightning-fast data access speeds.
Unrivaled Expansion and Connectivity
The GNRD8-2L2T boasts an impressive array of expansion options with 7 PCIe5.0 / CXL2.0 x16 slots, enabling you to connect high-performance GPUs, accelerators, and other peripherals with ease. This future-proof design ensures your system can adapt to evolving workloads.
Key Features:
- Supports Intel Xeon 6700E-series processors
- 8 DIMM slots (1DPC), supports DDR5 RDIMM
- 7 PCIe5.0 / CXL2.0 x16 slots
- CEB Form Factor (12" x 10.5")
Elevate Your Computing Experience
Whether you're building a high-performance computing
Specifications
| Physical Status | |
| Form Factor | CEB |
| Dimensions | 12" x 10.5" |
| Processor System | |
| CPU | Supports Intel® Xeon® 6700E-series processors |
| Socket | 1 Socket E2 (LGA 4710) |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8 DIMM slots (1DPC) |
| Supported Type | DDR5 RDIMM |
| Max. Capacity per DIMM | RDIMM: 128GB |
| Max. DIMM Frequency | RDIMM: 6400MT/s |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT7: PCIe5.0 / CXL2.0 x16* SLOT6: PCIe5.0 / CXL2.0 x16 SLOT5: PCIe5.0 / CXL2.0 x16 SLOT4: PCIe5.0 / CXL2.0 x16* SLOT3: PCIe5.0 / CXL2.0 x16 SLOT2: PCIe5.0 / CXL2.0 x16* SLOT1: PCIe5.0 / CXL2.0 x16 *SLOT7, 4, 2 only function with selected processors |
| TPM | |
| TPM support | 1 (13-pin, SPI) |
| Other PCIe Expansion Connectors | |
| M.2 slot | 2 M-key (PCIe5.0 x4), supports 22110/2280 form factor |
| Others | 1 MCIO (PCIe5.0 / CXL2.0 x8) |
| Ethernet | |
| Additional GbE Controller | 2 RJ45 (10GbE) by Intel® X710-AT2 2 RJ45 (1GbE) by Intel® i210 |
| Server Management | |
| BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (UBS3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE), 2 RJ45 (1GbE), 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 4 ( 8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 (9-pin) |
| Fan Header | 8 (6-pin) |
| TPM Header | 1 (13-pin, SPI) |
| VROC header | 1 |
| HSBP | 1 |
| SMBus header | 2 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 1 header (19-pin, 1 USB3.2 Gen1) |
| USB 2.0 Header | 1 header (19-pin, 1 USB2.0) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 8 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
| Hardware Monitor | |
| Temperature | CPU, MB, Card Side, M.2, RAM, TR Temperature Sensing |
| Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
| Voltage | 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
