Product Description
Unleash Next-Gen Server Performance with the ASRock Rack GNRD8UD-2Q Motherboard
Experience unparalleled processing power and connectivity with the ASRock Rack GNRD8UD-2Q Motherboard. Engineered for demanding server environments, this Deep Micro-ATX motherboard empowers your system with the latest technologies for exceptional performance, scalability, and reliability.
Key Features:
- Unmatched Processing Power: Supports Intel Xeon 6700E-series processors, delivering exceptional performance for demanding applications.
- Next-Generation Memory Technology: Equipped with 8 DIMM slots supporting DDR5 RDIMM (1DPC), ensuring ample memory bandwidth and capacity for data-intensive tasks.
- High-Speed Connectivity: Features 2 PCIe 5.0/CXL2.0 x16 slots, enabling lightning-fast data transfer rates for high-performance peripherals and future expansion.
- Compact and Efficient Design: Deep Micro-ATX form factor (9.6" x 10.5") optimizes space utilization in your server rack without compromising performance.
Benefits:
- Enhanced Performance: Experience significantly faster processing speeds and improved responsiveness for demanding workloads.
- Increased Scalability: The motherboard's design and features allow for easy expansion and upgrades, ensuring your server can grow with your business needs.
- Exceptional Reliability: Built with high-quality components and rigorous testing, the GNRD8UD-2Q guarantees stability and long-term reliability for your server environment.
- Future-Proofing Your Investment: Support for the latest technologies, like PCIe 5.0 and DDR5, ensures your server remains at the forefront of performance and capabilities.
Specifications
Physical Status | |
Form Factor | Deep Micro-ATX |
Dimensions | 9.6" x 10.5" |
Processor System | |
CPU | Supports Intel® Xeon® 6700E-series processors |
Socket | 1 Socket E2 (LGA 4710) |
Chipset | System on Chip |
System Memory | |
Supported DIMM Quantity | 8 DIMM slots (1DPC) |
Supported Type | DDR5 RDIMM |
Max. Capacity per DIMM | RDIMM: 128GB |
Max. DIMM Frequency | RDIMM: 6400MT/s |
Voltage | 1.1V |
PCIe Expansion Slots (SLOT7 close to CPU) | |
PCIe x 16 | SLOT6: PCIe5.0 / CXL2.0 x16 SLOT4: PCIe5.0 / CXL2.0 x16 |
TPM | |
TPM support | 1 (13-pin, SPI) |
Other PCIe Expansion Connectors | |
M.2 slot | 2 M-key (PCIe5.0 x4), supports 2280 form factor |
Others | 4 MCIO (PCIe5.0 / CXL2.0 x8) [CPU0] 2 MCIO (PCIe5.0 / CXL2.0 x8) [CPU0]* *MCIO5/6 only function with with selected processors |
SATA/SAS Storage | |
Additional SATA Controller | ASM1061 (4 SATA 6Gb/s): 1 Mini-SAS HD |
Ethernet | |
Additional GbE Controller | 2 SFP28 (25GbE) by Intel® E810-XXVAM2 |
Server Management | |
BMC Controller | ASPEED AST2600: IPMI2.0 with iKVM and vMedia support |
IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
Graphics | |
Controller | ASPEED AST2600: 1 DB15 (VGA) |

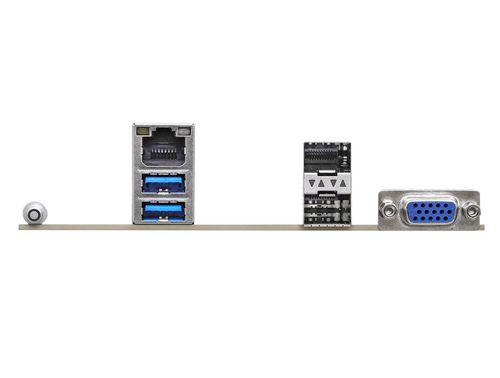

Rear I/O | |
UID Button/LED | 1 UID button w/ LED |
VGA Port | 1 DB15 (VGA) |
USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
RJ45 | 1 dedicated IPMI |
Other network connector | 2 SFP28 (25GbE) |
Internal Connector/Headers | |
Power Connector | 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable, 3 (8- pin, ATX 12V) |
Other Power Connectors | 1 (6-pin) for HDD power |
Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
COM Header | 1 |
Speaker Header | 1 |
Fan Header | 8 (6-pin) |
TPM Header | 1 (13-pin, SPI) |
VROC header | 1 |
HSBP | 1 |
SMBus header | 2 |
PMBus header | 1 |
IPMB Header | 1 |
Clear CMOS | 1 (contact pads) |
USB 3.2 (Gen1) Header | 1 header (19-pin, 2 USB3.2 Gen1) |
USB 2.0 Header | 1 header (9-pin, 2 USB2.0) |
NMI Header | 1 |
LED Indicators | |
Standby PWR LED | 1 (5VSB) |
80 Debug Port LED | 1 |
Fan Fail LED | 8 |
BMC heartbeat LED | 1 |
System BIOS | |
BIOS Type | AMI UEFI BIOS; 512Mb SPI Flash ROM |
BIOS Features | Plug and Play, ACPI 4.0 and above compliance wake up events, SMBIOS 3.4 and above, ASRock Rack instant flash |
Hardware Monitor | |
Temperature | CPU, MB, Card side, M.2, RAM Temperature Sensing |
Fan | Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) Fan Multi-Speed Control |
Voltage | 1.8V_PCH, +BAT, PVNN_PCH, 3.3V, 5V, 12V, 3.3VSB, 5VSB, 12V, +12VSB |
Environment | |
Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
MPN
MPN GNRD8UD-2Q
Note Images may not be exact, please check specifications.
