Product Details

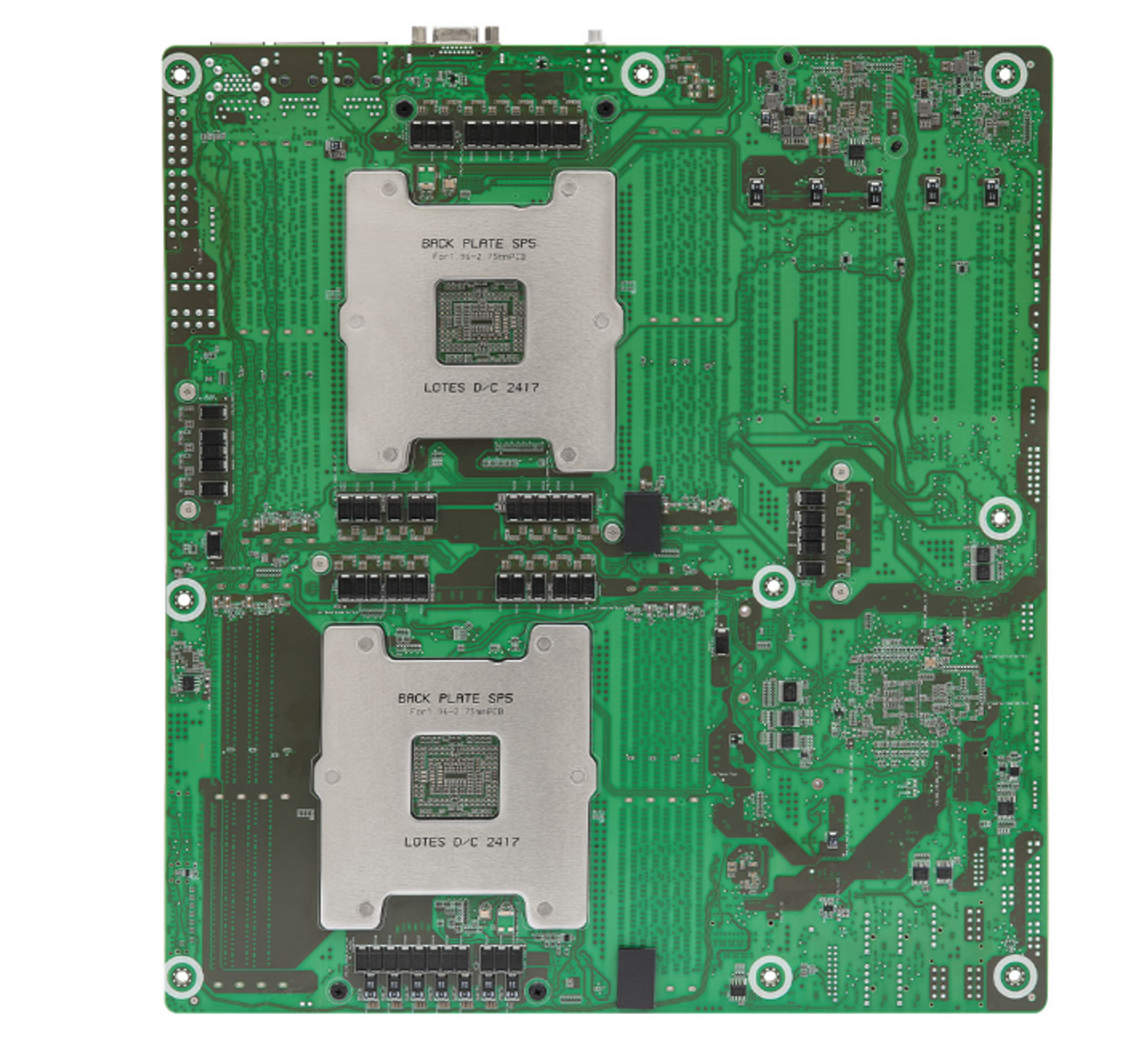

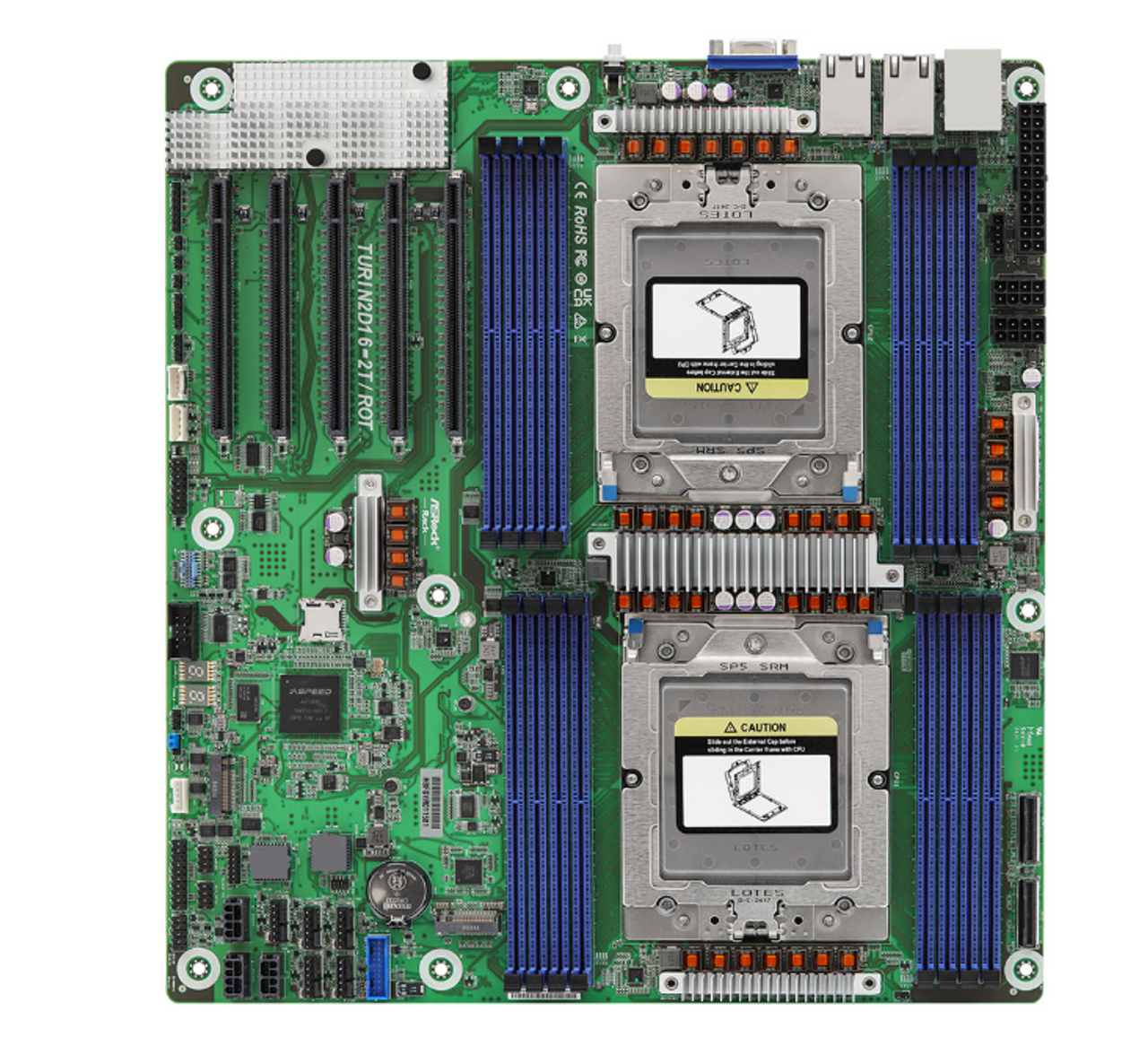

Asrock Rack TURIN2D16-2T/ROT Motherboard
Unlock unparalleled performance and efficiency for your data center with the Asrock Rack TURIN2D16-2T/ROT motherboard. Designed for demanding workloads, this EEB form factor motherboard supports the latest AMD EPYC 9005*, 9004 (including those with groundbreaking AMD 3D V-Cache Technology), and 97x4 series processors.
Features:
- Unleash Next-Gen Processing Power: Supports AMD EPYC 9005*, 9004 (including AMD 3D V-Cache Technology), and 97x4 series processors for exceptional performance.
- Massive Memory Capacity: Features 8+8 DIMM slots (1DPC) with support for DDR5 288-pin RDIMM and cutting-edge RDIMM-3DS technology, ensuring ample memory bandwidth and capacity for demanding applications.
- Future-Proof Expandability: The EEB form factor (12" x 13.2") provides ample space for expansion slots and connectivity options, allowing you to tailor your server to your specific needs.
- Robust Reliability: Built with Asrock Rack's renowned quality and reliability, this motherboard is engineered to withstand the rigors of continuous operation in demanding environments.
Specifications
| Physical Status | |
| Form Factor | EEB |
| Dimensions | 12" x 13.2" |
| Processor System | |
| CPU | Supports AMD EPYC™ 9005*/9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors *A BIOS update is required to support AMD EPYC™ 9005 series processors |
| Socket | Dual Socket SP5 (LGA 6096) |
| Thermal Design Power | Up to 400W |
| Chipset | System on Chip |
| System Memory | |
| Supported DIMM Quantity | 8+8 DIMM slots (1DPC) |
| Supported Type | Supports DDR5 288-pin RDIMM, RDIMM-3DS |
| Max. Capacity per DIMM | RDIMM: 64GB (2R) RDIMM-3DS: 512GB (2S8Rx4) |
| Max. DIMM Frequency | 6000 MHz |
| Voltage | 1.1V |
| PCIe Expansion Slots (SLOT7 close to CPU) | |
| PCIe x 16 | SLOT5: PCIe5.0 / CXL2.0* x16 [CPU1] SLOT4: PCIe5.0 / CXL2.0* x16 [CPU1] SLOT3: PCIe4.0 x16 [CPU1] SLOT2: PCIe4.0 x16 [CPU0] SLOT1: PCIe4.0 x16 [CPU0] *Supports CXL1.1 while installing AMD EPYC 9004 (with AMD 3D V-Cache™ Technology) and 97x4 series processors |
| Other PCIe Expansion Connectors | |
| M.2 slot | 1 M-key (PCIe4.0 x4), supports 22110/2280 form factor [CPU0] 1 M.2 for RoT function |
| Others | 2 MCIO (PCIe5.0 / CXL2.0* x8 or 8 SATA 6Gb/s) [CPU0] 1 MCIO (PCIe5.0 / CXL2.0* x8) [CPU0] |
| SATA/SAS Storage | |
| PCH Built-in Storage | AMD EPYC 9005/9004 (Up to 16 SATA 6Gb/s): 2 MCIO |
| Ethernet | |
| Additional GbE Controller | Intel® X710-AT2: 2 RJ45 (10GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| IPMI Dedicated GLAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header |

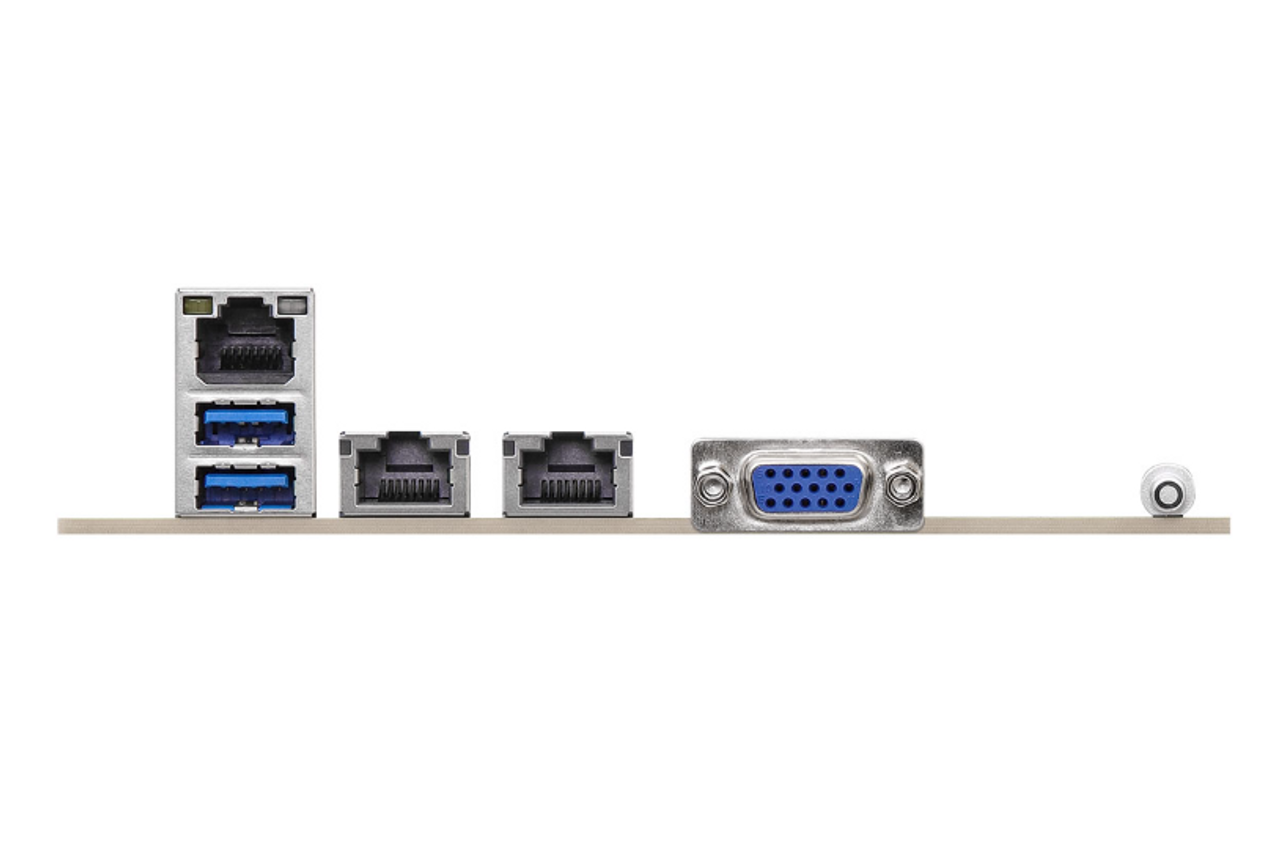

| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| VGA Port | 1 DB15 (VGA) |
| USB 3.2 Gen1 Port | 2 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (10GbE) 1 dedicated IPMI |
| Internal Connector/Headers | |
| Power Connector | 1 (24-pin, ATX main power), 5 ( 8-pin, ATX 12V) |
| Auxiliary Panel Header | 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus |
| System Panel | 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED |
| COM Header | 1 |
| Fan Header | 6 (6-pin) |
| TPM Header | 1 (13-pin, SPI) |
| SGPIO Header | 2 |
| HSBP | 1 |
| SMBus header | 1 |
| PMBus header | 1 |
| IPMB Header | 1 |
| Clear CMOS | 1 (contact pads) |
| Front Lan LED Connector | 1 |
| USB 3.2 (Gen1) Header | 1 (19-pin, 2 USB3.2 Gen1) |
| NMI Header | 1 |
| LED Indicators | |
| Standby PWR LED | 1 (5VSB) |
| 80 Debug Port LED | 1 |
| Fan Fail LED | 6 |
| BMC heartbeat LED | 1 |
| System BIOS | |
| BIOS Type | AMI 256Mb SPI Flash ROM |
| BIOS Features | ASRock Rack Instant Flash, ACPI 6.4 and abouve compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP) |
| Hardware Monitor | |
| Temperature | CPU, MB, Card side Temperature sensing |
| Fan | CPU/Rear/Front Fan Tachometer CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) CPU/Rear/Front Fan Multi-Speed Control |
| Voltage | VDDCR_CPU0, VDDCR_CPU1, VDDCR_SOC, VDDIO, VDD_11_S3, +3V, +5V, +12V, +BAT, +3VSB, +5VSB |
| Environment | |
| Temperature | Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C |
| Humidity | Non operation humidity: 20% ~ 90% ( Non condensing) |
