Product Description
KEY FEATURES
- A dual active-active controller configuration powered by quad-core Intel Xeon® processor. Scalable up to 492 drive bays, up to 20 ASUS expansion units or four third-party JBODs, supporting SAS, NL-SAS and SED drives connected via SAS 3.0 12Gb/s interface.
- Excellent performance with 12.8GB/s and 1.3M IOPS, outstanding scale-up capability up to 10.8PB.
- Each controller with built-in four-port 10 GbE (SFP+) and maximum 12 LANs, allows direct connection to multiple LANs without switches.
- It supports DDR4 ECC DIMM, which can be upgraded to 512GB, with cache-to-flash solution to protect cache data in power outage.
- ASUS Storage Manager is a flash-based storage-management system, enabling intuitive data access within a five-minute installation. It provides the flexibility and intelligence for hybrid storage systems.
- Scalable LAN expansion includes two- or four-port 16Gb FC/ 25Gb SFP28 and two-port 32Gb FC and four-port 10GbE iSCSI SFP+.
- Designed for enterprise IT, media editing, large surveillance, small to medium businesses and HPC.
Engineered for Scalability and Performance
Expertly engineered for enterprise IT, multimedia and production industries, as well as diverse small-to-medium business demands, ASUS VS320D-RS12 is a robust and adaptable storage solution that employs a dual active-active architecture to maximize the data safety – minimizing the risk of information loss during power outages and accelerating workload completion like never before.
Flexible Peta-scale Storage Optimized for All Workloads

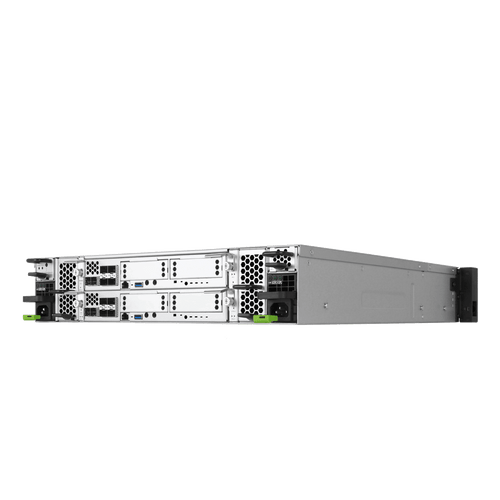

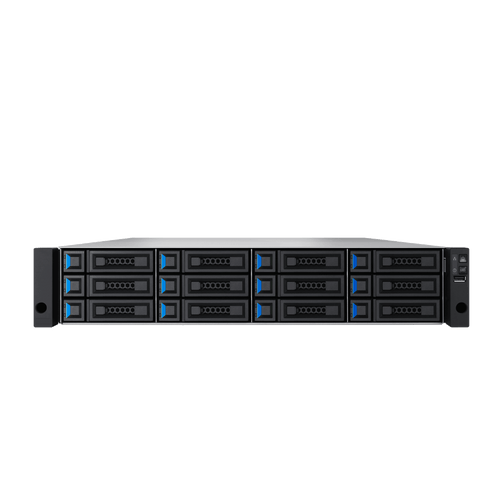

VS320D-RS12 is a powerful hybrid server storage crafted with tool-less drive bays to simplify both maintenance and upgrades, and with an adaptable design that permits access from both the front and rear. It can scale up to 492 drive bays, accommodating up to 20 ASUS expansion units or four third-party JBODs. With exceptional performance reaching 12.8GB/s and 1.3M IOPS, VS320D-RS12 offers remarkable scalability up to 10.8PB of storage when fully expanded. Additionally, its C2F module design provides advanced memory and data protection, offering security against potential threats. Together, these attributes establish a dependable and effective server solution, well-suited for contemporary data environments.
Reliable Low-latency Network Connectivity
VS320D-RS12 seamlessly enables fast data transmission, thanks to its utilization of a multi-LAN design. Each controller with built-in four-port 10GbE (SFP+) and maximum 12 LANs allows direct connection to multiple LANs without switches.
Intuitive ASUS Storage Manager Tool
Storage is increasingly crucial for HPC applications, handling extensive data processing – and ASUS Storage Manager is here to help. Its components work harmoniously to improve maintenance efficiency, monitor storage performance and enhance system stability. With intuitive features, IT admins and even everyday users are empowered to easily monitor disk health, manage clusters of servers, set alerts, track power-on time, monitor temperature and more.
Storage for Enterprise IT
Enterprise data storage acts as a centralized repository, offering data management, protection and sharing. VS320D-RS12 provides high scalability and flexible connectivity to accommodate vast amounts of critical data. With cache-to-flash technology, it ensures remarkable 99.9999% availability, eliminating single points of failure to protect cache data during power outages.
Storage for HPC & AI
The confluence of HPC and AI is changing everything. VS320D-RS12 offers HPC storage and management for AI and deep learning. Onboard are eight 10GbE SFP for iSCSI, DDR4 ECC DIMM (up to 512GB), up to 12 slots of 3.5-inch SSDs, plus a scalable LAN design, so it’s easy to tailor storage solutions to cope with modern data demands in an effective and flexible way.
