Asus AMD EPYC 9005 Single-Processor 1U Server That Supports Up To 24 DIMM, Four nvme, Three pcie 5.0 Slots, Two M.2, OCP 3.0, Two Single-Slot gpus, And ASUS ASMB11-Ikvm - RS501A-E12-RS12U

Asus AMD EPYC 9005 Single-Processor 1U Server That Supports Up To 24 DIMM, Four nvme, Three pcie 5.0 Slots, Two M.2, OCP 3.0, Two Single-Slot gpus, And ASUS ASMB11-Ikvm - RS501A-E12-RS12U

5th Generation AMD EPYC Processors with AMD 3D V-Cache technology

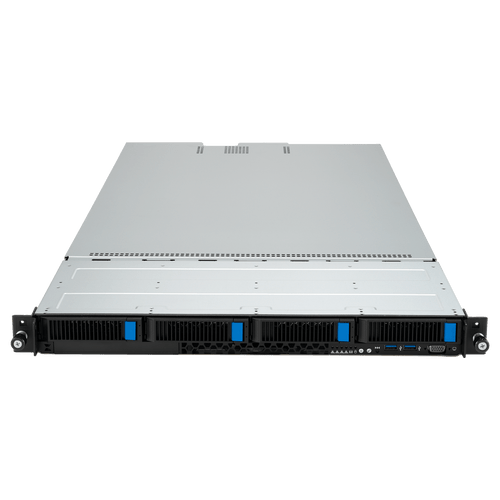

ASUS RS501A-E12-RS4 was designed for general purpose application. With the front 4 hot-swap bays supporting 3.5” and 2.5” drives , RS501A-E12-
RS4 is the economic design for rack placement.

Key Features

• Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 360 watts
• Scale-up storage and expansion design: Up to four drives on the front panel and three PCIe 5.0 slots for higher bandwidth and system upgrades

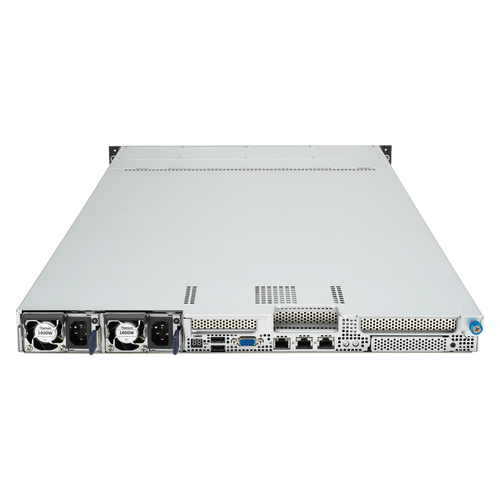

• Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
• Advanced air-cooling solution: Features enhanced-volume air-cooling (EVAC) heatsink for processors with higher TDP
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
• Read for AI and HPC workloads: Up to two single-slot GPUs.

AMD EPYC 9005 series processors support
RS501A-E12 series is built on the AMD platform to deliver incredible performance, and offer more CPU cores powered by AMD EPYC 9005 series processors.

Industry-leading memory capability
With 2 DIMM per channel design, RS501A-E12 Series supports up to 24 x DIMM slots. The CPU’s memory controller supports DDR5 memory with 12 channels up to 5200Mhz . We deliver the industry-leading technology of server memory for our customers’ business.

Comprehensive IT infrastructure management solution
ASUS RS501A-E12 features an embedded ASMB11-iKVM (BMC, AST2600) and is bundled with
ASUS Control Center to provide comprehensive out-of-band and in-band management capability

AMD EPYC™ 9005 Series Processors

AMD EPYC™ 9005-series CPUs amplify the AMD history of x86 architecture innovations and record-breaking performance with next generation 3nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe^® Gen 5 I/O. EPYC 9005 CPUs support 12 memory channels with two DIMMs/channel capability, delivering the resources needed for memory hungry AI-enabled data center workloads, ML, HPC and large in-memory computations.

This server features scalable storage solutions to support maximum performance for data center flexibility, and enable industry-standard SAS/SATA/NVMe interfacing through Broadcom Tri-Mode RAID adapters for increased connectivity and security

Accelerating performance for AI workloads : Up to two single-slot GPUs

This server features multiple PCIe 5.0 slots to meet the demands of AI and high-performance computing (HPC) workloads, including supporting up to two single-slot active or passive GPUs, and Xilinx Alveo accelerators. The scalable configurations in one 1U system provide optimized acceleration for workloads across cloud and on-premises data centers, and for hybrid cloud environments in financial computing, machine learning, computational storage, and data search and analytics.

NVIDIA Omniverse: 3D design collaboration and simulation

ASUS solutions for Omniverse give your organization a comprehensive package for Omniverse Enterprise. The diverse portfolio allows us to tailor a package to be fully compatible with your design environment and needs. As our long-term partnership with NVIDIA and ISV certifications, we’re fully invested in the Omniverse ecosystem and ready to help our partners develop new segments on this exciting platform.

Remote server management

ASUS ASMB11-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish^® AP

Streamline IT operations via a single dashboard

ASUS Control Center (ACC) is remote IT management software designed for monitoring your hardware and software IT assets and inventory status and enabling seamless remote BIOS configurations and updates, efficient IT diagnostics and troubleshooting and enhanced security with Hotfix updates, allowing easier server management for any IT infrastructure.

Hardware Root-of-Trust Solution:Detect, recover, boot and protect

ASUS servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.

Trusted Platform Module 2.0

ASUS servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities
