Asus AMD EPYC 9005 Single-Processor 2U Server That Supports Up To 24 DIMM, 12 nvme, Five pcie 5.0 Slots, Two M.2, OCP 3.0, Two Dual-Slot gpus, And Asus ASMB11-Ikvm - RS521A-E12-RS24U

Asus AMD EPYC 9005 Single-Processor 2U Server That Supports Up To 24 DIMM, 12 nvme, Five pcie 5.0 Slots, Two M.2, OCP 3.0, Two Dual-Slot gpus, And ASUS ASMB11-Ikvm - RS521A-E12-RS12U

5th Generation AMD EPYC Processors with AMD 3D V-Cache technology

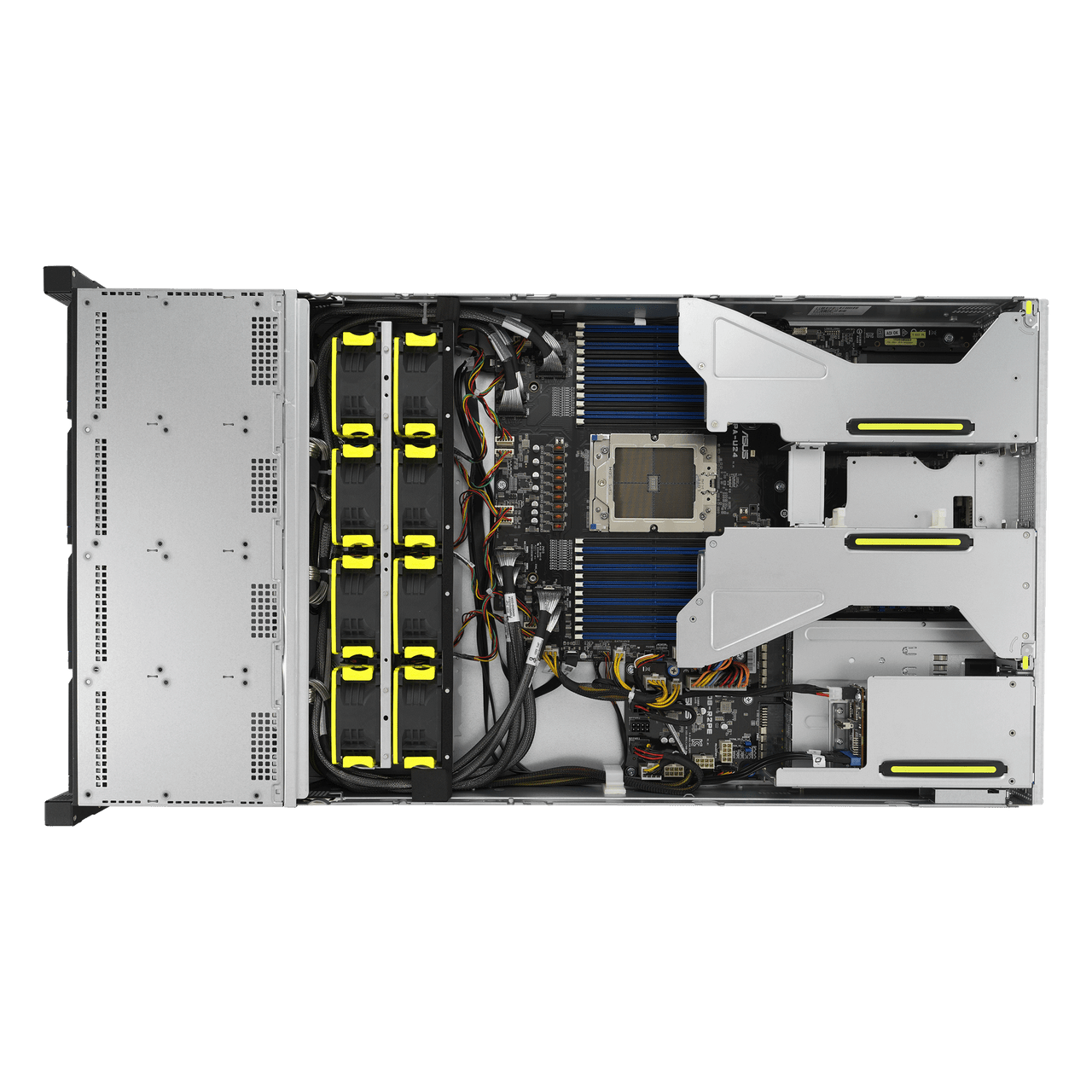

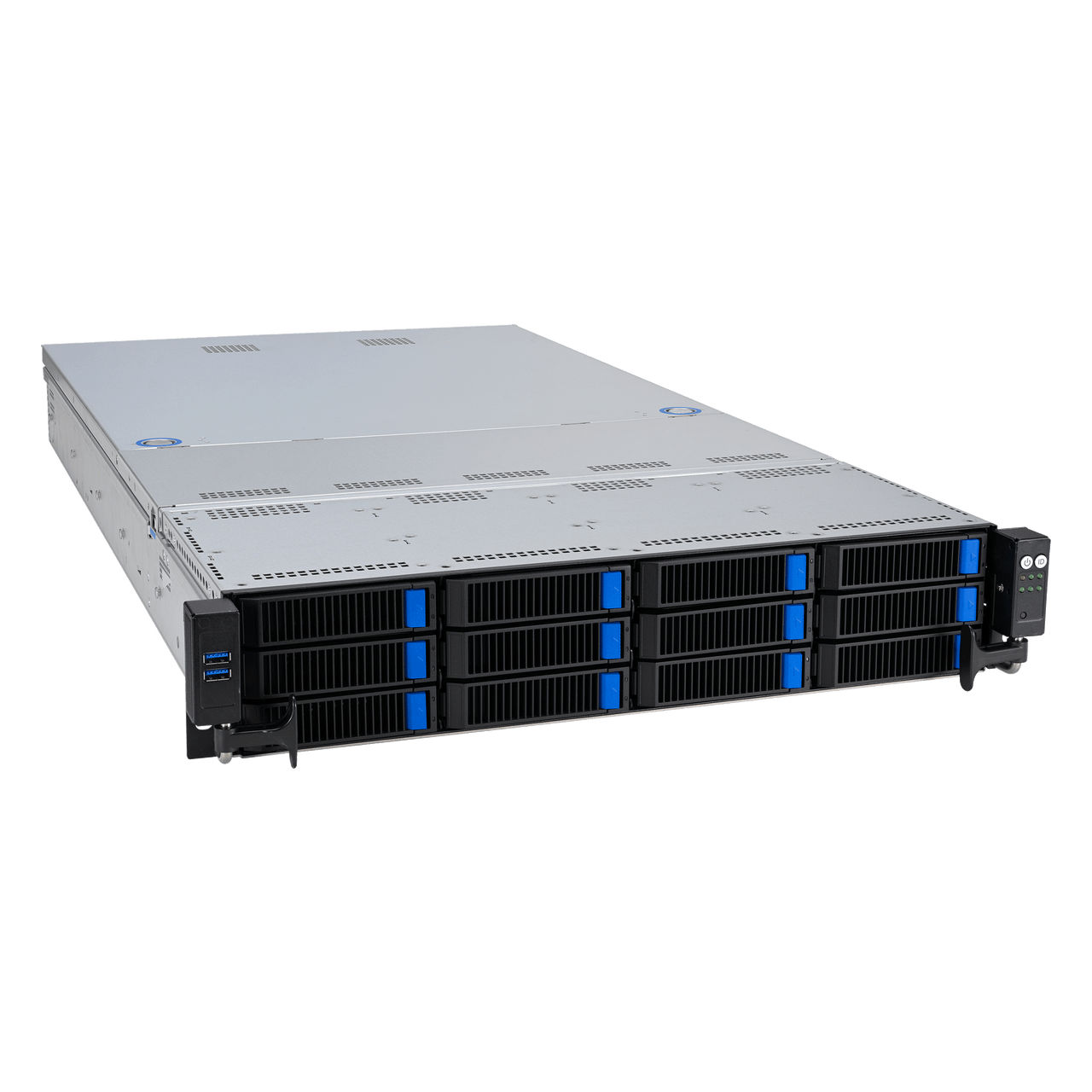

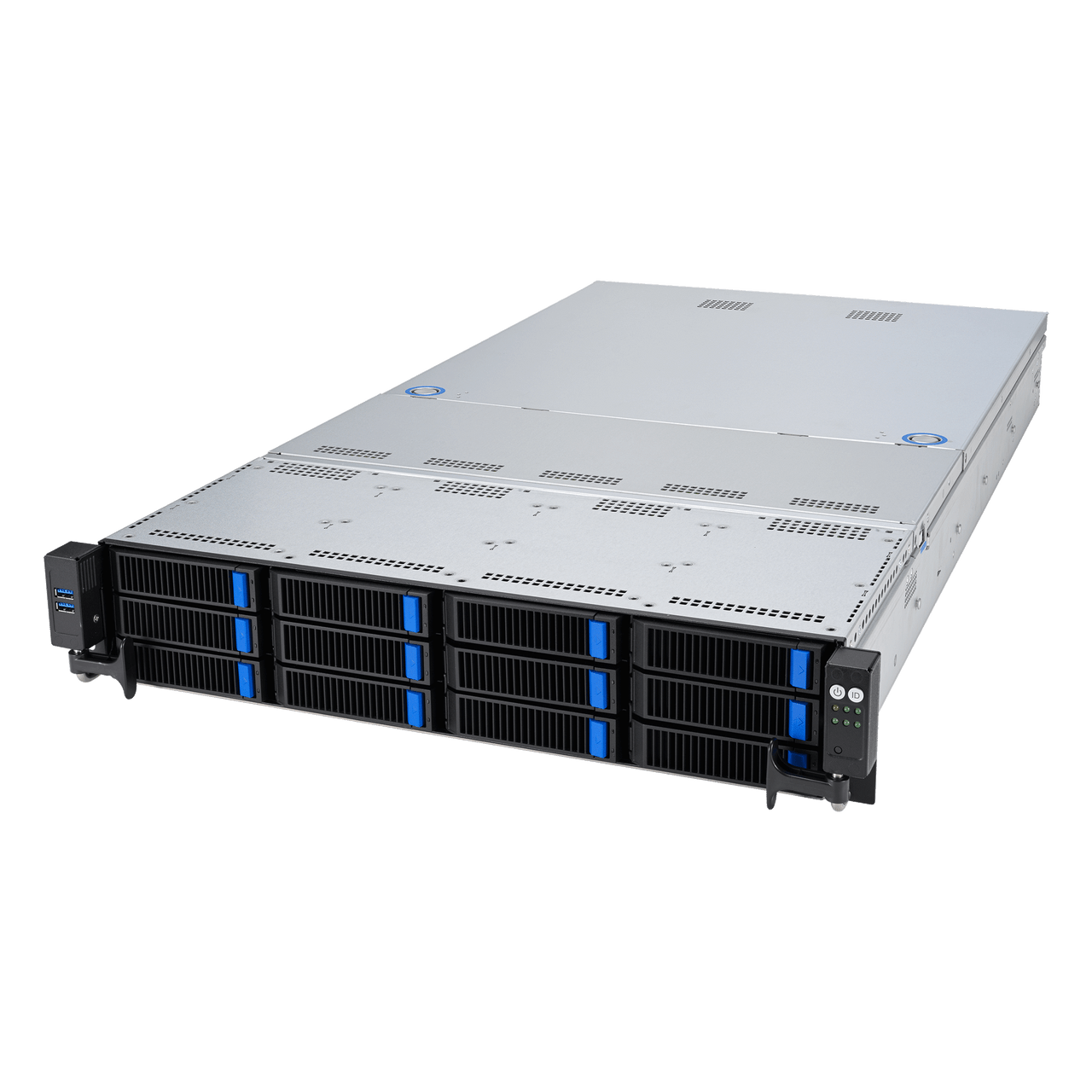

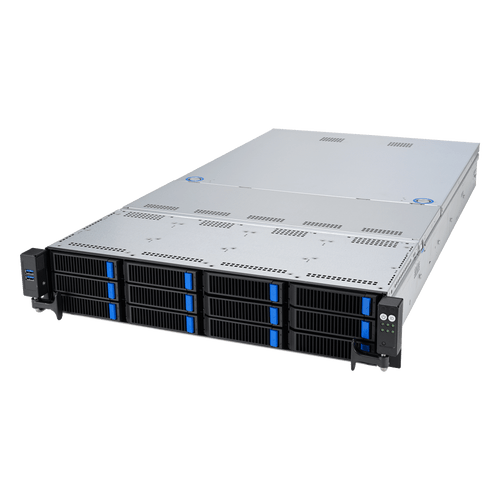

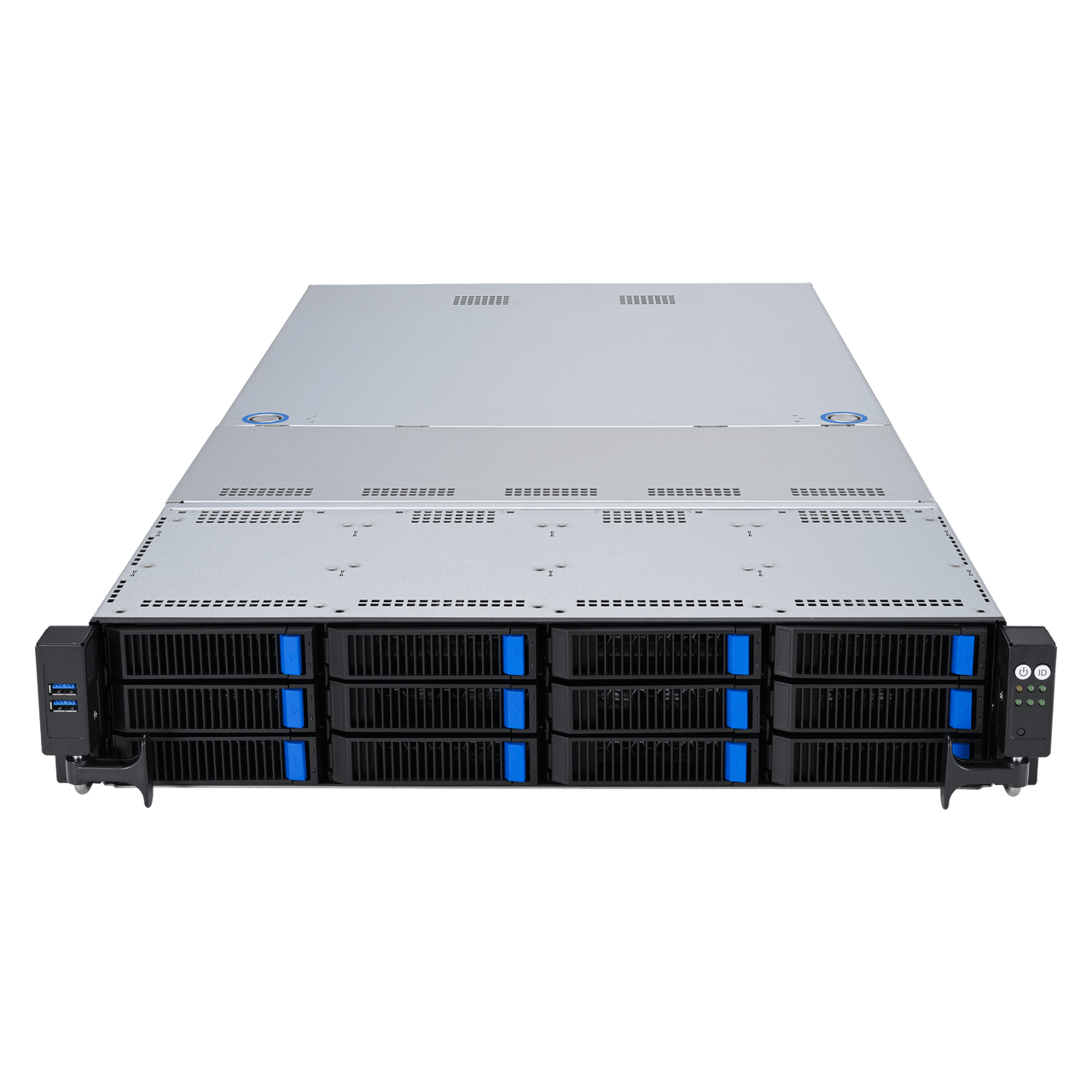

ASUS RS521A-E12-RS12U was designed to accelerate application performance leveraging accelerator cards and storage scalability. With the CPU and
memory configured in a front parallel design that enables efficient airflow for excellent thermal performance, RS521A-E12-RS12U is optimized for
rack placement. Featuring the single processor in a 2U chassis, RS521A-E12 series delivers the right-sized rack server dimensions for price sensitive
applications and meets the demanding computing requirements

KEY FEATURES

• Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 400 watts
• Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, two drives in the real panel, and five PCIe 5.0 slots for higher bandwidth and system upgrades
• Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
• Air cooling solution: With heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers for versatile workloads
• Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
• Read for AI and HPC workloads: Up to two dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx

Industry-leading memory capability

With 2 DIMM per channel design, RS501A-E12 Series supports up to 24 x DIMM slots. The CPU’s memory controller supports DDR5 memory with 12 channels up to 5200Mhz . We deliver the industry-leading technology of server memory for our customers’ business.

AMD EPYC 9005 Series Processors
The RS521A-E12 Series is built on the latest AMD EPYC 9005 Series Processor, and designed for the demand of scale-out computing, and wide range of existing and emerging workloads

The best storage interface combination for software-defined storage management

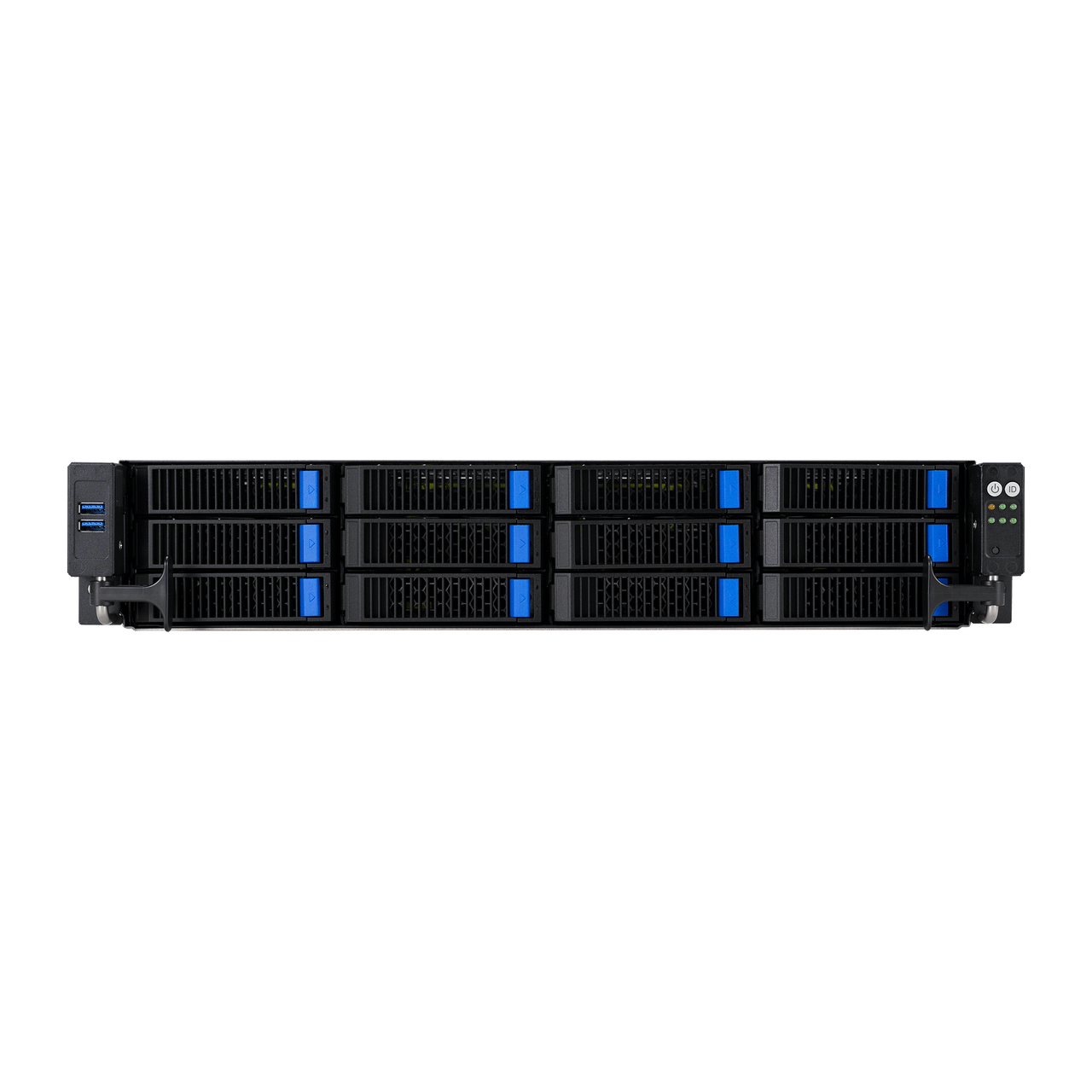

Front: 12 x 3.5" hot-swap storage bays (supports maximum 12 x 3.5’’ U.2/U.3 NVMe devices)

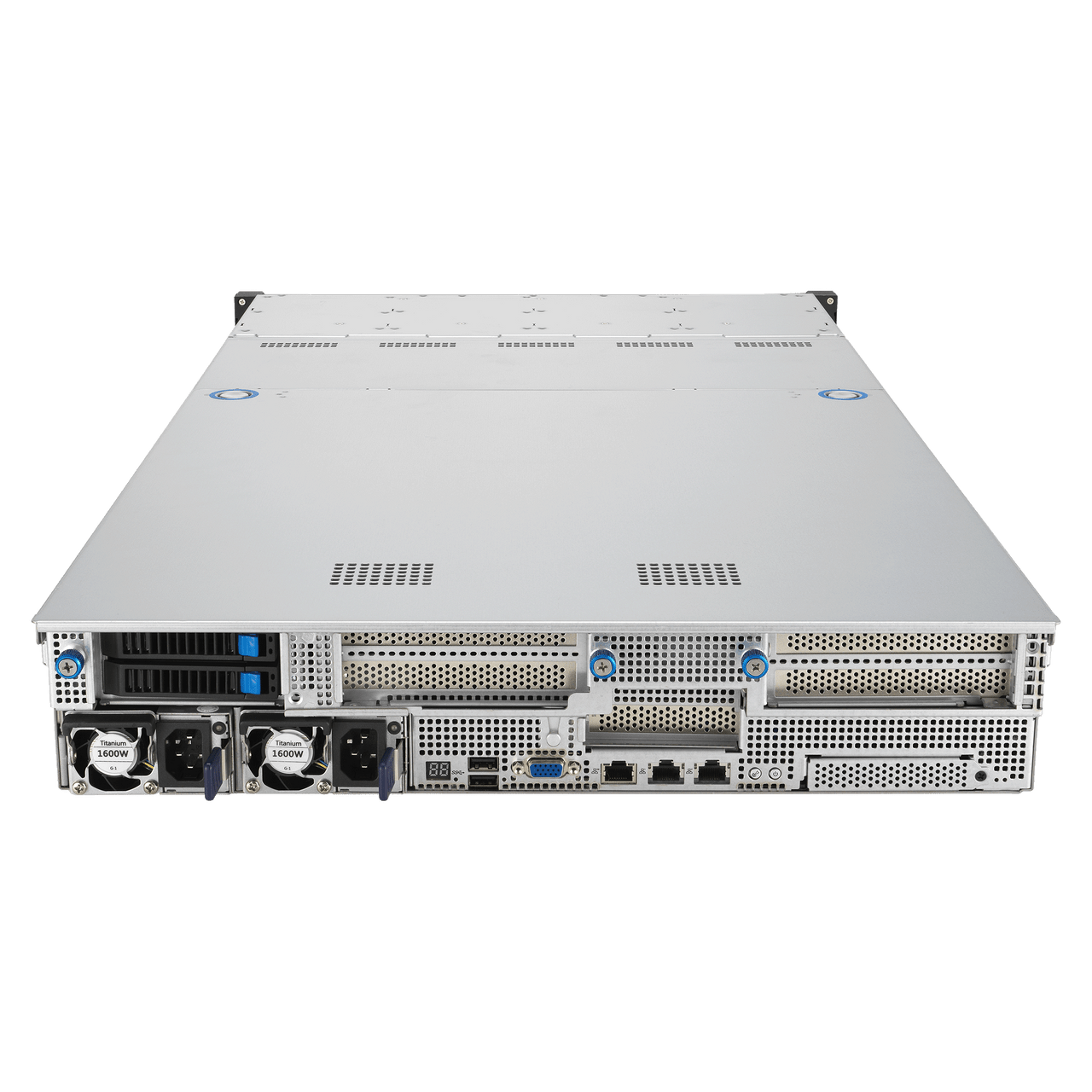

Rear: 2 x 2.5" hot-swap storage bays (supports SATA devices)

Comprehensive IT infrastructure management solution

ASMB11-iKVM and ASUS Control Center (ACC Classic)

PCIe 5.0 Ready: Faster storage, graphics and networking capabilities

PCI Express (PCIe) 5.0 delivers 32 GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data centers.

AMD EPYC 9005 Series Processors

AMD EPYC™ 9005-series CPUs amplify the AMD history of x86 architecture innovations and record-breaking performance with next generation 3nm technology as well as introducing support for high performant DDR5 DIMMs and fast PCIe^® Gen 5 I/O. EPYC 9005 CPUs support 12 memory channels with two DIMMs/channel capability, delivering the resources needed for memory hungry AI-enabled data center workloads, ML, HPC and large in-memory computations.
