Product Description
Asus Barebone System - 2U Rack-mountable - Socket P LGA-3647 - 2 x Processor Support - Intel C621 Chip - 2 TB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 16 Total Memory Slots - Serial ATA/600 RAID Supported Controller - ASPEED AST2500 64 MB Graphic(s) - 8 3.5" Bay(s) - Processor Support (Xeon, Xeon Platinum, Xeon Gold, Xeon Silver, Xeon Bronze) - Gigabit Ethernet - Red Hat Enterprise Linux, SuSE Linux Enterprise Server, Windows Server 2012 R2, CentOS, Windows Server 2016

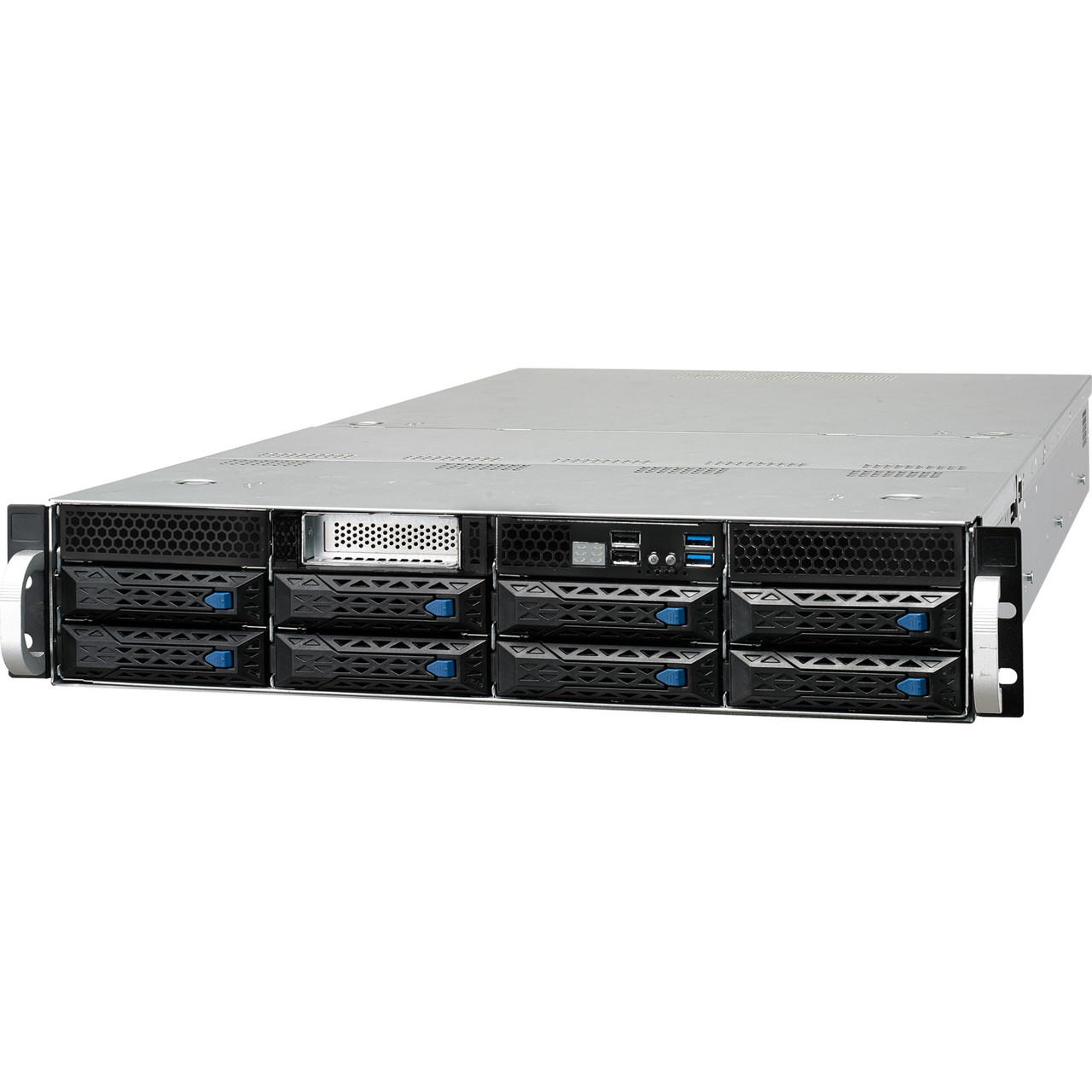

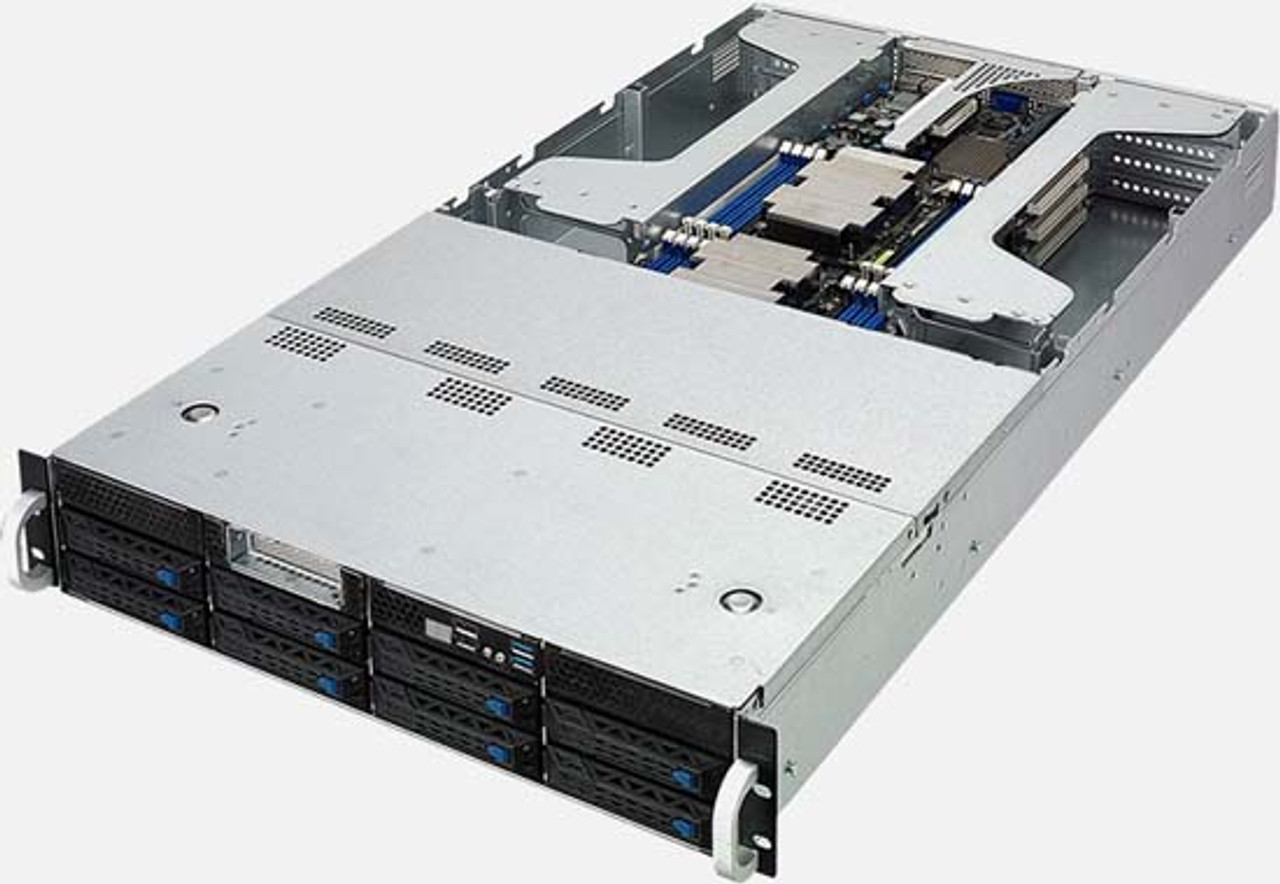

The Asus ESC4000 G4 is a new, rack-mountable barebone system that offers exceptional performance and scalability for demanding computing environments. This 2U system supports two Intel Xeon processors, including the Platinum, Gold, Silver, and Bronze series, making it ideal for virtualization, high-performance computing, and enterprise applications.
Powerful Performance and Scalability
With support for two Intel Xeon Scalable processors in an LGA-3647 socket, the ESC4000 G4 delivers exceptional processing power. It can be equipped with up to 2TB of DDR4-2666 memory across 16 slots, providing ample capacity for demanding workloads. The system features an Intel C621 chipset and an ASPEED AST2500 graphics controller with 64MB of graphics memory.
Flexible Storage and Expansion Options
The ESC4000 G4 offers flexible storage options with eight 3.5" hot-swappable drive bays, supporting both SATA and SAS drives. It also features RAID support for enhanced data protection and performance. For expansion, the system provides eleven expansion slots, including one PCI Express x8 slot and nine PCI Express x16 slots, enabling the integration of high-performance networking cards, GPUs, and other peripherals.
Reliable Operation and Manageability
Equipped with two power supplies for redundancy, the ESC4000 G4 ensures continuous operation even if one power supply fails. The system supports various operating systems, including Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Ubuntu Linux, and Red Hat Fedora Core. The Asus ESC4000 G4 also incorporates advanced management features, making it easy to monitor and maintain.
Key Features:
- Supports two Intel Xeon Scalable processors (Socket P LGA-3647)
- Up to 2TB DDR4-2666 ECC Registered memory
- Eight 3.5" hot-swappable drive bays (SATA/SAS)
- One PCI Express x8 slot, nine PCI Express x16 slots
- Dual Gigabit Ethernet ports
- Two redundant power supplies (1600W maximum)
- Rack-mountable 2U form factor
- Three-year limited warranty
