Product Description

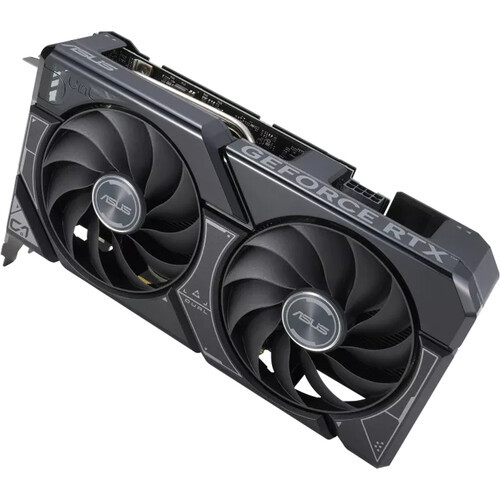

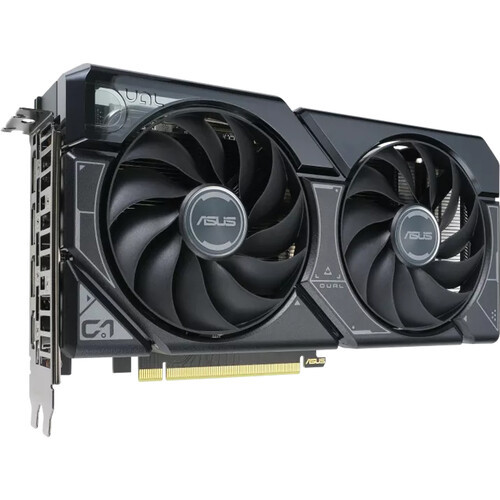

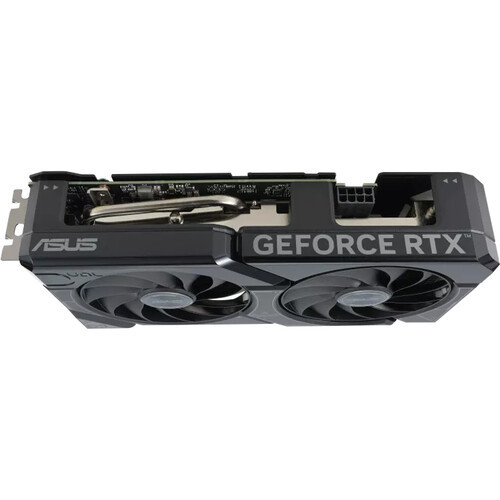

ASUS Dual GeForce RTX 4060 OC Edition 8GB GDDR6 (PCIe 4.0, 8GB GDDR6, DLSS 3, HDMI 2.1a, DisplayPort 1.4a, 2.5-slot design, Axial-tech fan design, 0dB technology)
Key Features
- 3072 CUDA Cores
- Ada Lovelace Architecture
- 8GB of GDDR6 RAM
- 128-Bit Memory Interface
- 288 GB/s Memory Bandwidth
- HDMI 2.1 | DisplayPort 1.4a
- PCIe 4.0 Interface
- Dual Axial Tech Fans
Based on the Ada Lovelace architecture and designed to handle 1080p gaming, the ASUS GeForce RTX 4060 Dual OC Graphics Card brings the power of real-time ray tracing and AI to your PC games. The GPU features 8GB of GDDR6 VRAM and a 128-bit memory interface, offering improved performance and power efficiency over the previous Ampere-based generation.
Dual Axial-Tech Cooling

This graphics card fuses dynamic thermal performance with broad compatibility. The dual Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure. The dual ball bearing fans can maximize airflow to the heatsink. To eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
2.5-Slot Design & Display Outputs

This GPU features a 2.5-slot design, which maximizes compatibility and cooling efficiency for optimal performance in a small chassis.
The front panel of the card features three DisplayPort 1.4a outputs and a single HDMI 2.1 output. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60 fps, 4K @ 120 fps, and even up to 10K. The RTX 4060 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 3072 cores to accelerate tasks using CUDA and other APIs.
The front panel of the card features three DisplayPort 1.4a outputs and a single HDMI 2.1 output. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60 fps, 4K @ 120 fps, and even up to 10K. The RTX 4060 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 3072 cores to accelerate tasks using CUDA and other APIs.
GPU Tweak III

The ASUS GPU Tweak III utility takes graphics card tuning to the next level. It allows you to tweak critical parameters, including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Manufacturer Part Number
Manufacturer Part Number DUAL-RTX4060-O8G
GPU Model NVIDIA GeForce RTX 4060
Stream Processors 3072 CUDA Cores
Interface PCI Express 4.0 x8
Memory Speed 18 Gb/s
Memory Configuration 8 GB
Memory Interface GDDR6
Memory Interface Width 128-Bit
Memory Bandwidth 288 GB/s
Maximum Digital Resolution 7680 x 4320 @ 60 Hz
Max Power Consumption 160 W
PCI Power Connectors 1 x 8-Pin
Recommended System Power Requirement 550 W
Note Images may not be exact, please check specifications.
