  • H110A-IM-A
  • H110A-IM-A
  • H110A-IM-A

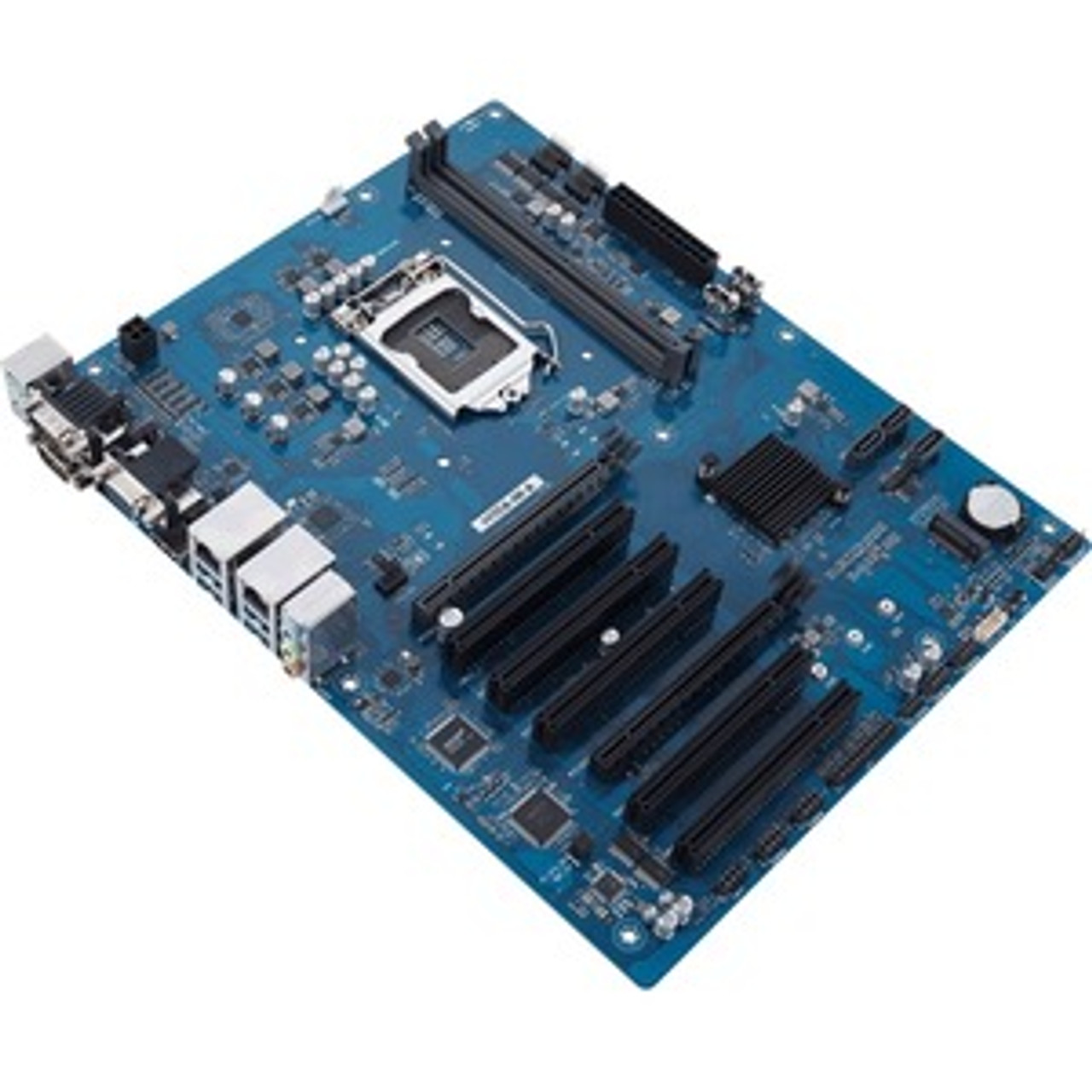

    • Asus H110A-IM-A Desktop Motherboard - Intel H110 Chipset - Socket H4 LGA-1151 - ATX - 32 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 3 x SATA Interfaces - H110A-IM-A

    Asus

    Request A Quote

    Write a Review
    SKU:
    HS-ASU-H110A-IM-A
    UPC:
    192876866351
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    Package Contents:
    • H110A-IM-A Desktop Motherboard
    • 1 x IO Shield
    • 1 x SATA 6G Cable
    • 1 x M.2 Screw Pack
    Product Type:
    Desktop Motherboard
    MPN:
    H110A-IM-A
    Maximum Memory Supported:
    32 GB
    Limited Warranty:
    2 Year
    Form Factor:
    ATX
    Manufacturer:
    ASUS Computer International
    Product Model:
    H110A-IM-A
    Product Name:
    H110A-IM-A Desktop Motherboard
    Processor Supported:
    Core i3
    Processor Supported:
    Core i5
    Processor Supported:
    Core i7
    Processor Supported:
    Celeron
    Processor Supported:
    Pentium
    Total Processor Supported:
    1
    Controller Type:
    Serial ATA/600
    Processor Socket:
    Socket H4 LGA-1151
    Brand Name:
    Asus
    Memory Technology:
    DDR4 SDRAM
    Country of Origin:
    China
    Width:
    12"
    Depth:
    9.6"
    Environmentally Friendly:
    Yes
    Environmental Certification:
    RoHS
    Chipset Manufacturer:
    Intel
    Chipset Model:
    H110
    Number of Memory Slots:
    2
    Audio Channels:
    7.1
    Gigabit Ethernet:
    Yes
    Number of SATA Interfaces:
    3
    Onboard Video:
    CPU Dependent Video
    Number of Total Expansion Slots:
    7
    Number of PCI Express x16 Slots:
    2
    HDMI:
    Yes
    VGA:
    Yes
    Number of Network (RJ-45) Ports:
    2
    Total Number of USB Ports:
    4
    Total Number of Onboard USB Ports:
    4
    Number of Onboard USB 2.0 Ports:
    4
    Total Number of PCI Express Slots:
    2
    Memory Form Factor:
    DIMM
    Memory Form Factor:
    UDIMM
    Number of M.2 Interfaces:
    1
    Memory Speed Supported:
    2400 MHz
    Memory Speed Supported:
    2133 MHz
    Number of USB 3.2 Ports:
    4
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

    Asus H110A-IM-A Desktop Motherboard - Intel H110 Chipset - Socket H4 LGA-1151 - ATX - 32 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - 3 x SATA Interfaces

    7th/6th Gen Intel® Core™ i7/i5/i3 LGA 1151 ATX motherboard with H110 chipset, 2*U-DIMM, 2*PCIe x16, 5*PCI, HDMI, VGA, Dual LAN, M.2 slot

    • Supports Intel® 7th/6th Gen Core™ processors (LGA1151) with the Intel H110 chipset
    • Up to 8 COM ports, includes 2 RS-232/422/485
    • Supports 2 PCIe x16 and and 5 PCI expansion slots
    • Wide range of operating temperatures (0°~60°)
    • Seven years of longevity with extended product life cycles

    ASUS H110A-IM-A is an ATX industrial motherboard with rich I/O capabilities and advanced connectivity. It offers multiple display outputs, legacy options for industrial applications, GPIO ports and dual LAN ports, plus rich expandability with 2 x PCIe® x16, 5 x PCI and 1 x M.2 slots. ASUS H110A-IM-A is the ideal choice for a wide range of embedded applications.

    As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.

    Features:
    • Two 288-pin U-DIMM up to 32GB DDR4 2400/2133 MHz
    • Supports Dual displays: VGA/HDMI or VGA/DP 7-year longevity supply
    • Wide Temperature Range: 0~60°C

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page

    Product Videos

    Custom Field

    Package Contents
    • H110A-IM-A Desktop Motherboard
    • 1 x IO Shield
    • 1 x SATA 6G Cable
    • 1 x M.2 Screw Pack
    Product Type Desktop Motherboard
    MPN H110A-IM-A
    Maximum Memory Supported 32 GB
    Limited Warranty 2 Year
    Form Factor ATX
    Manufacturer ASUS Computer International
    Product Model H110A-IM-A
    Product Name H110A-IM-A Desktop Motherboard
    Processor Supported Core i3
    Processor Supported Core i5
    Processor Supported Core i7
    Processor Supported Celeron
    Processor Supported Pentium
    Total Processor Supported 1
    Controller Type Serial ATA/600
    Processor Socket Socket H4 LGA-1151
    Brand Name Asus
    Memory Technology DDR4 SDRAM
    Country of Origin China
    Width 12"
    Depth 9.6"
    Environmentally Friendly Yes
    Environmental Certification RoHS
    Chipset Manufacturer Intel
    Chipset Model H110
    Number of Memory Slots 2
    Audio Channels 7.1
    Gigabit Ethernet Yes
    Number of SATA Interfaces 3
    Onboard Video CPU Dependent Video
    Number of Total Expansion Slots 7
    Number of PCI Express x16 Slots 2
    HDMI Yes
    VGA Yes
    Number of Network (RJ-45) Ports 2
    Total Number of USB Ports 4
    Total Number of Onboard USB Ports 4
    Number of Onboard USB 2.0 Ports 4
    Total Number of PCI Express Slots 2
    Memory Form Factor DIMM
    Memory Form Factor UDIMM
    Number of M.2 Interfaces 1
    Memory Speed Supported 2400 MHz
    Memory Speed Supported 2133 MHz
    Number of USB 3.2 Ports 4
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
