Product Description

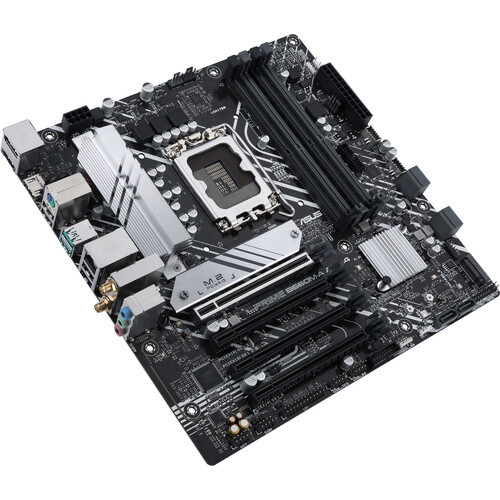

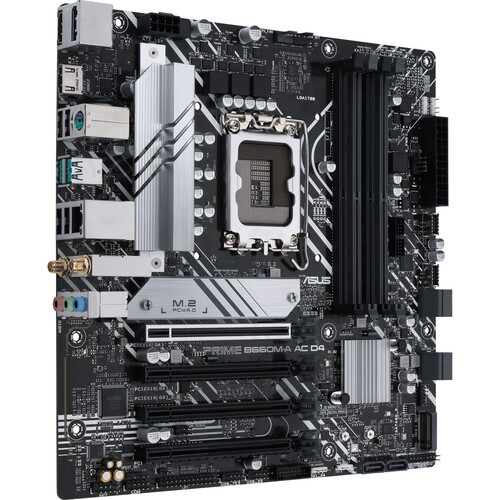

ASUS PRIME B660M-A AC D4 LGA 1700(Intel 12th&13 Gen) mATX motherboard
The ASUS PRIME B660M-A AC D4 is a micro ATX form factor motherboard designed for use with 12th and 13th Gen Intel processors. It supports up to 128GB of DDR4 memory and features a variety of connectivity options, including PCIe 4.0, WiFi 5, and USB 3.2 Gen2 Type-A.
Specifications
- Brand: Asus
- Model: PRIME B660M-A AC D4
- Form Factor: Micro ATX
- Processor Supported: 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors
- Socket: LGA 1700
- Chipset: Intel B660
- Memory: 4x DDR4 memory slots, up to 128GB
- Storage: 2x M.2 PCIe 4.0 slots, 6x SATA 6Gb/s ports
- Expansion Slots: 4x PCI Express slots (1x PCIe 4.0 x16, 3x PCIe 3.0 x1)
- Graphics: CPU dependent video, HDMI, DisplayPort
- Audio: 7.1 channel audio
- Networking: Intel Wi-Fi 6, Gigabit Ethernet
- USB Ports:
- Rear: 2x USB 3.2 Gen 2 Type-A, 2x USB 3.2 Gen 1 Type-A, 2x USB 2.0
- Front: 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 1 Type-A
Features
- Comprehensive Cooling: Features large heatsinks for optimal heat dissipation.
- Ultrafast Connectivity: PCIe 4.0 support, along with Intel Wi-Fi 6 and Gigabit Ethernet, provide high-speed data transfer rates.
- Robust Power Design: Engineered with a robust power design to ensure stable and reliable performance.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Product Type Desktop Motherboard
MPN PRIME B660M-A AC D4
Maximum Memory Supported 128 GB
Limited Warranty 3 Year
Form Factor Micro ATX
Manufacturer ASUS Computer International
Product Model B660M-A AC D4
Product Name Prime B660M-A AC D4 Desktop Motherboard
Processor Supported Pentium Gold
Processor Supported Celeron
Processor Supported Core
Product Line Prime
RAID Levels 0
RAID Levels 1
RAID Levels 5
RAID Levels 10
Total Processor Supported 1
Controller Type Serial ATA/600
Processor Socket Socket LGA-1700
Brand Name Asus
Memory Technology DDR4 SDRAM
Width 9.6"
Depth 9.6"
Environmentally Friendly Yes
Environmental Certification RoHS
Chipset Manufacturer Intel
Chipset Model B660
Number of Memory Slots 4
Audio Channels 7.1
Bluetooth Yes
Gigabit Ethernet Yes
Wireless LAN Yes
Number of SATA Interfaces 6
Wireless LAN Standard IEEE 802.11a/b/g/n/ac
Onboard Video CPU Dependent Video
RAID Supported Yes
Number of Total Expansion Slots 4
Number of PCI Express x16 Slots 4
HDMI Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 4
Total Number of Onboard USB Ports 10
Number of Onboard USB 2.0 Ports 4
Total Number of PCI Express Slots 4
Memory Form Factor DIMM
Memory Form Factor UDIMM
Number of M.2 Interfaces 2
Memory Speed Supported 5333 MHz
Memory Speed Supported 5000 MHz
Memory Speed Supported 4800 MHz
Memory Speed Supported 4600 MHz
Memory Speed Supported 4400 MHz
Memory Speed Supported 4266 MHz
Memory Speed Supported 4000 MHz
Memory Speed Supported 3733 MHz
Memory Speed Supported 3600 MHz
Memory Speed Supported 3466 MHz
Memory Speed Supported 3400 MHz
Memory Speed Supported 3333 MHz
Memory Speed Supported 3200 MHz
Memory Speed Supported 3000 MHz
Memory Speed Supported 2933 MHz
Memory Speed Supported 2800 MHz
Memory Speed Supported 2666 MHz
Memory Speed Supported 2400 MHz
Memory Speed Supported 2133 MHz
Intel Optane Memory Ready Yes
Intel RST Yes
Number of Onboard USB 3.2 Ports 6
Number of USB 3.2 Gen 2 Type-A Ports 2
Processor Generation Supported 12th Gen
Note Images may not be exact, please check specifications.
