Product Description

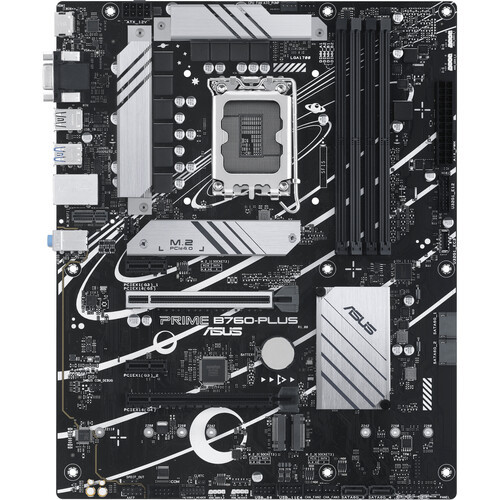

ASUS Prime B760-PLUS Intel B760(14th, 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, DDR5, 3x PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI, SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 - PRIME B760-PLUS
The ASUS Prime B760-PLUS is a desktop motherboard designed for use with Intel 12th, 13th, and 14th generation Core, Celeron, and Pentium Gold processors. It features the Intel B760 chipset and supports DDR5 SDRAM memory. The motherboard has a variety of connectivity options, including PCIe 5.0, PCIe 4.0, USB 3.2 Gen 2x2 Type-C, and Thunderbolt 4.
Key Features:
- Supports 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
- Robust Power Solution: Stable power delivery with 10 + 1 DrMOS power stages, six-layer PCB, ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Next-Gen Connectivity: PCIe 5.0, three PCIe 4.0 M.2 slots, Realtek 2.5 Gb Ethernet, USB 3.2 Gen2x2 Type-C, front panel USB 3.2 Gen 1 header and Thunderbolt 4 support
- Comprehensive Cooling: Large heatsinks, M.2 heatsink, VRM heatsink, hybrid fan headers and Fan Xpert 2+
- ASUS OptiMem II: Revised signaling routes for the latest Intel processors to allow for higher memory frequencies while maintaining signal integrity
Package Contents:
- Prime B760-PLUS Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x Screw Packages for M.2 SSD
- 1 x User guide
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Package Contents
- Prime B760-PLUS Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 2 x Screw Packages for M.2 SSD
- 1 x User guide
Product Type Desktop Motherboard
Manufacturer Part Number PRIME B760-PLUS
Maximum Memory Supported 192 GB
S/PDIF Yes
Form Factor ATX
Manufacturer ASUS Computer International
Product Model PRIME B760-PLUS
Product Name Prime B760-PLUS Desktop Motherboard
Processor Supported Core
Processor Supported Celeron
Processor Supported Pentium Gold
Product Line Prime
RAID Levels 0
RAID Levels 10
RAID Levels 1
RAID Levels 5
Total Processor Supported 1
Controller Type Serial ATA/600
Processor Socket Socket LGA-1700
Brand Name Asus
Memory Technology DDR5 SDRAM
Width 12"
Depth 9.6"
Environmentally Friendly Yes
Environmental Certification RoHS
Chipset Manufacturer Intel
Chipset Model B760
Number of Memory Slots 4
Audio Channels 7.1
Gigabit Ethernet Yes
Number of SATA Interfaces 4
Number of PCI Express x1 Slots 2
Onboard Video CPU Dependent Video
RAID Supported Yes
Number of Total Expansion Slots 4
Number of PCI Express x16 Slots 2
HDMI Yes
HDMI Version 2.1
VGA Yes
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 6
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
PCI Express Standard PCI Express 4.0
PCI Express Standard PCI Express 3.0
PCI Express Standard PCI Express 5.0
Total Number of PCI Express Slots 4
Thunderbolt Yes
Memory Form Factor DIMM
Memory Form Factor UDIMM
Number of M.2 Interfaces 3
Memory Speed Supported 7000 MHz
Memory Speed Supported 6800 MHz
Memory Speed Supported 6600 MHz
Memory Speed Supported 6400 MHz
Memory Speed Supported 6200 MHz
Memory Speed Supported 6000 MHz
Memory Speed Supported 5800 MHz
Memory Speed Supported 5600 MHz
Memory Speed Supported 5400 MHz
Memory Speed Supported 5200 MHz
Memory Speed Supported 5000 MHz
Memory Speed Supported 4800 MHz
Number of USB 3.2 Gen 2 Type-C Ports 1
Number of USB 3.2 Gen 1 Type-A Ports 1
Number of USB 3.2 Gen 2 Type-A Ports 2
2.5Gigabit Ethernet Yes
Number of Thunderbolt 4 Ports 1
Processor Generation Supported 13th Gen
Processor Generation Supported 12th Gen
Note Images may not be exact, please check specifications.
