Product Description

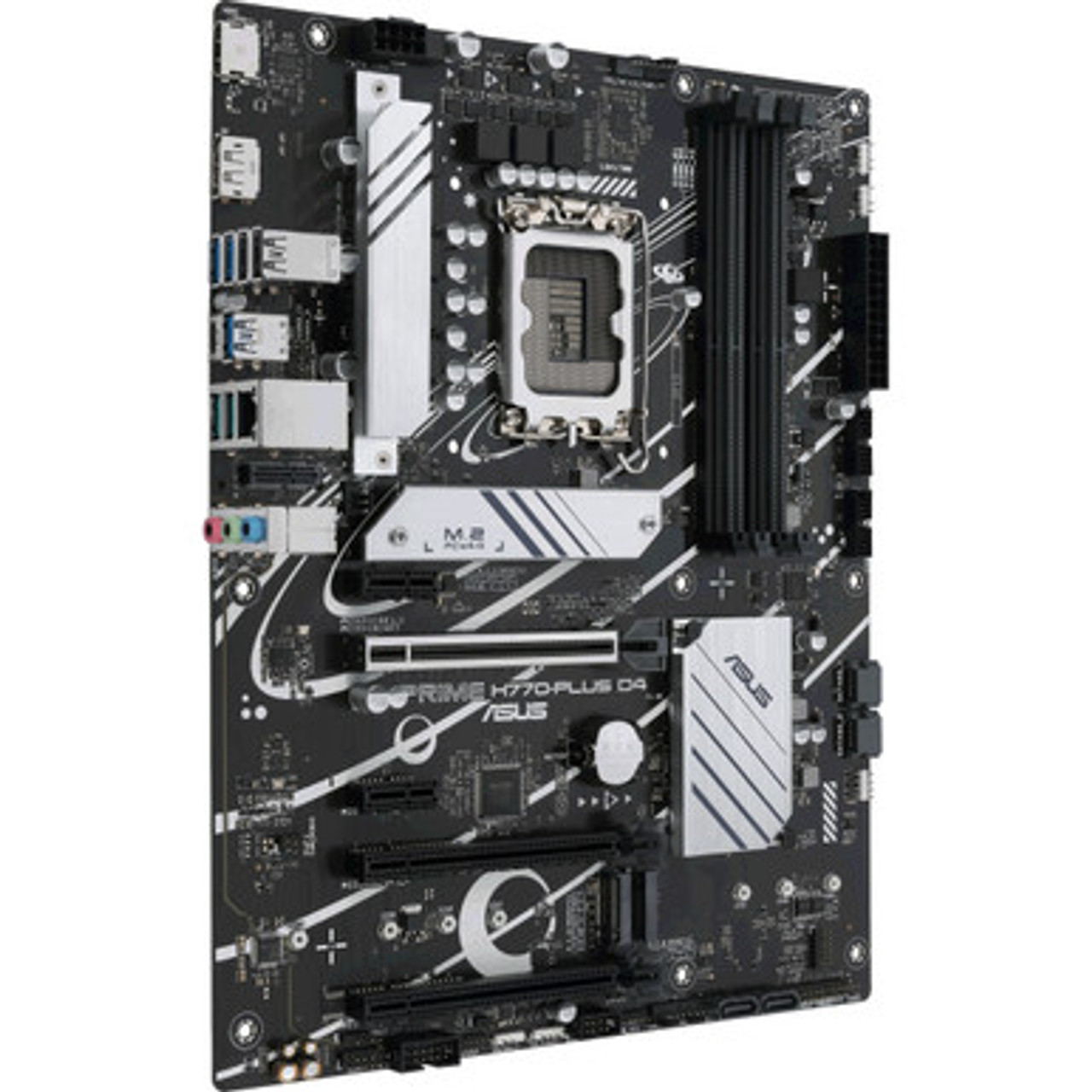

Asus Prime H770-PLUS D4 Desktop Motherboard

The PRIME H770-PLUS D4 is a powerful and versatile ATX desktop motherboard designed for the latest 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors. With support for up to 128GB of DDR4 memory, a triple M.2 slot, and PCIe 5.0, the Prime H770-PLUS D4 delivers exceptional performance and scalability for demanding users.

Features:

• Processor Support: Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors for Socket LGA-1700
• Chipset: Intel H770
• Memory: 4 x DDR4 DIMM slots, supporting up to 128GB of DDR4 SDRAM (Speeds up to 5066 MHz (OC))
• Storage: 4 x SATA 6Gb/s ports, 3 x M.2 slots (support for PCIe 4.0 and SATA modes)
• Expansion Slots: 3 x PCIe x16 slots (x16, x4, x1), 2 x PCIe x1 slots
• Graphics: Integrated graphics supported by compatible processors (HDMI 2.1, DisplayPort)
• Audio: Realtek 7.1-Channel High Definition Audio
• Networking: Intel 2.5Gb Ethernet, Gigabit Ethernet
• USB: 8 x USB ports (including USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, and USB 3.2 Gen 1)
• Form Factor: ATX (12" x 9.6")
• Warranty: 3-Year Limited Warranty

Package Contents:

• PRIME H770-PLUS D4 Desktop Motherboard
• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 2 x Screw Packages for M.2 SSD
• 1 x User guide
