Product Description

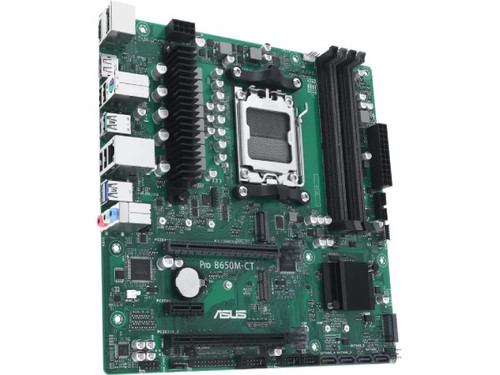

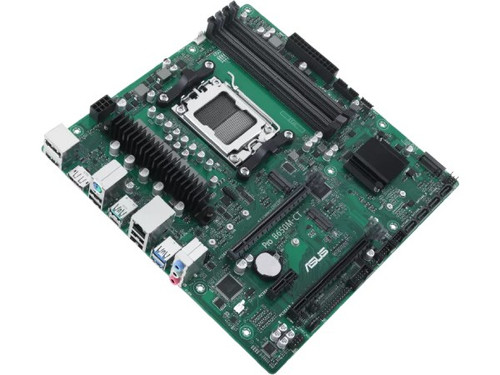

ASUS PRO B650M-CT-CSM - Motherboard - micro ATX
Introducing the ASUS PRO B650M-CT-CSM motherboard, a powerful and reliable foundation for your next AMD-based computer build. This micro ATX motherboard is designed for businesses and professionals who demand stability, performance, and essential features.
Socket AM5: Unleash Next-Gen Performance
Built around the AMD B650 chipset, the PRO B650M-CT-CSM supports the latest AMD Ryzen™ 7000 Series processors in the Socket AM5 package. This powerful combination delivers exceptional computing power for demanding workloads, multitasking, and content creation.
Comprehensive Connectivity
Stay connected with a comprehensive suite of ports, including fast USB 3.2 Gen 1 and Gen 2 ports, as well as the versatile USB-C 3.2 Gen2 interface. Gigabit LAN ensures reliable and high-speed networking for seamless online experiences.
Onboard Graphics and HD Audio
The PRO B650M-CT-CSM features onboard graphics (CPU required), allowing you to connect a display without the need for a dedicated graphics card. Enjoy immersive audio with the integrated HD Audio (8-channel) codec, delivering rich and clear sound.
Built for Professionals
Engineered for reliability and stability, the ASUS PRO B650M-CT-CSM is ideal for business environments and professional applications. Its robust design ensures long-lasting performance, while its compact micro ATX form factor offers flexibility in system builds.
Key Features:
- Brand: Asus
- Model: PRO B650M-CT-CSM
- Form Factor: micro ATX
- Socket: AM5
- Chipset: AMD B650
- USB: USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2
- Networking: Gigabit LAN
- Audio: HD Audio (8-channel)
- Condition: New
Product Type
Product Type Desktop Motherboard
Manufacturer Part Number PRO B650M-CT-CSM
Maximum Memory Supported 128 GB
Form Factor Micro ATX
Manufacturer ASUS Computer International
Product Model PRO B650M-CT-CSM
Product Name Pro B650M-CT-CSM Desktop Motherboard
Processor Supported Ryzen 7
Product Line Pro
RAID Levels 0
RAID Levels 1
RAID Levels 10
Total Processor Supported 1
Controller Type Serial ATA/600
Processor Socket Socket AM5
Brand Name Asus
Memory Technology DDR5 SDRAM
Width 9.6"
Depth 9.6"
Environmentally Friendly Yes
Environmental Certification RoHS
Chipset Manufacturer AMD
Chipset Model B650
Number of Memory Slots 4
Audio Channels 7.1
Gigabit Ethernet Yes
Number of SATA Interfaces 4
Number of PCI Express x1 Slots 1
Onboard Video CPU Dependent Video
RAID Supported Yes
Number of Total Expansion Slots 3
Number of PCI Express x16 Slots 2
HDMI Yes
HDMI Version 2.1
Number of Network (RJ-45) Ports 1
DisplayPort Yes
Total Number of USB Ports 8
Total Number of Onboard USB Ports 7
Number of Onboard USB 2.0 Ports 4
PCI Express Standard PCI Express 4.0
Total Number of PCI Express Slots 3
Memory Form Factor DIMM
Memory Form Factor UDIMM
Number of M.2 Interfaces 2
Memory Speed Supported 6400 MHz
Memory Speed Supported 6200 MHz
Memory Speed Supported 6000 MHz
Memory Speed Supported 5800 MHz
Memory Speed Supported 5600 MHz
Memory Speed Supported 5400 MHz
Memory Speed Supported 5200 MHz
Memory Speed Supported 5000 MHz
Memory Speed Supported 4800 MHz
Number of USB 3.2 Gen 2 Type-C Ports 1
Number of USB 3.2 Gen 1 Type-A Ports 2
Number of USB 3.2 Gen 2 Type-A Ports 1
Note Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
