Asus WS X299 SAGE Workstation Motherboard for Intel Core X-Series Processors with Dual M.2, Dual Gigabit LAN, Thunderbolt 3, Intel VROC and Optane Memory Support, DDR4-4133 MHz Overclocking - 90SW0070-MTAAY0

Asus WS X299 SAGE Workstation Motherboard for Intel Core X-Series Processors with Dual M.2, Dual Gigabit LAN, Thunderbolt 3, Intel VROC and Optane Memory Support, DDR4-4133 MHz Overclocking - 90SW0070-MTAAY0

Asus

Request A Quote

Write a Review

SKU:: HS-ASU-90SW0070-MTAAY0
Condition:: New
Availability:: Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
MPN:: 90SW0070-MTAAY0
CPU:: Intel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors Supports Intel Turbo Boost Max Technology 3.0
Chipset:: Intel W790 Chipset
Memory:: 8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory* Quad Channel Memory Architecture
Expansion Slots:: Intel Xeon W-3400 and W-2400 Series Processors 5 x PCIe 5.0 x16 slot(s) (supports x16, x16, x16, x0/x8, x16/x8 modes)
Storage:: Total supports 2 x M.2 slots, 4 x SATA 6Gb/s ports and 3 x SlimSAS ports Intel W790 Chipset
Ethernet:: 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard
USB:: Rear USB (Total 13 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A ) 8 x USB 2.0 port(s) (8 x Type-A)
Audio:: Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports:: 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 8 x USB 2.0 port(s) (8 x Type-A)
Internal I/O Connectors:: Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 5 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s)
Special Features:: Extreme OC Kit - FlexKey button - ReTry button - Start button ASUS 5X PROTECTION III
Software Features:: ASUS Exclusive Software Armoury Crate - Fan Xpert 4 AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner
BIOS:: 512 Mb Flash ROM, UEFI AMI BIOS
Manageability:: WOL by PME, PXE (UEFI mode)
Operating System:: Windows 11, Windows 10 64-bit
Form Factor:: CEB Form Factor 12 inch x 10.5 inch (30.5 cm x 26.67 cm)
Note:: Images may not be exact, please check specifications.
Required A Volume Purchase:: Contact us for a volume pricing | volumeorders@hssl.us

Overview
Other Details

Product Description

Asus WS X299 SAGE Workstation Motherboard for Intel Core X-Series Processors with Dual M.2, Dual Gigabit LAN, Thunderbolt 3, Intel VROC and Optane Memory Support, DDR4-4133 MHz Overclocking - 90SW0070-MTAAY0

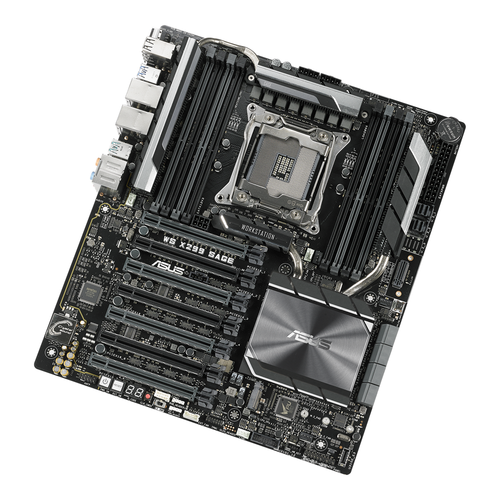

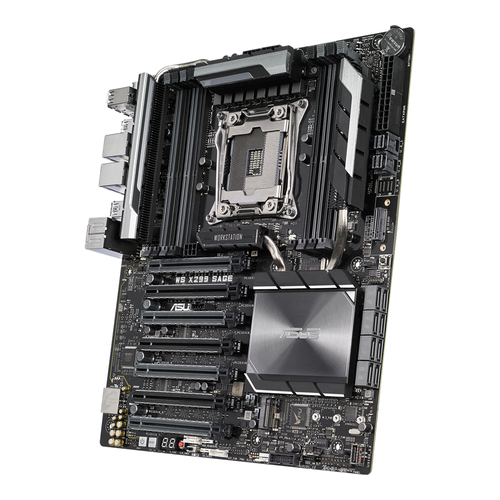

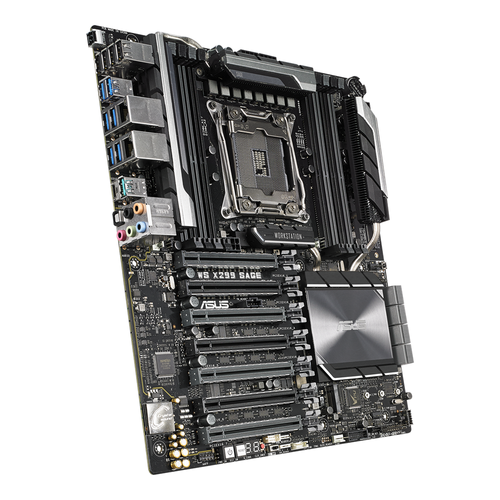

The WS X299 SAGE is a premium workstation motherboard designed for Intel Core X-Series processors on the LGA2066 socket. Built to deliver exceptional performance for professionals in content creation, engineering, and high-performance computing, it supports dual M.2 storage, front-panel USB 3.1 Gen2, dual Intel Gigabit LAN, Thunderbolt 3, Intel VROC, and Intel Optane Memory. ASUS OC Design with ProClock and T-Topology Technology extends CPU and memory overclocking margins, enabling memory speeds up to DDR4-4133 MHz and beyond. The 5-Way Optimization with Auto-Tuning and FanXpert 4 delivers automatic overclocking profiles and dynamic thermal control, ensuring efficient system cooling for demanding workloads. SafeSlot reinforced PCIe slots provide reliable support for multi-GPU setups, while the enhanced 7.1-channel HD audio with Realtek S1220A and Crystal Sound 3 ensures immersive sound quality. Complete IT infrastructure management is provided through ASUS Control Center, enabling remote monitoring, BIOS updates, and one-click software dispatching. AURA Sync RGB lighting adds customizable visual flair across compatible components.

Features

Supports Intel Core X-Series processors on LGA2066 socket for high-performance workstation builds
Dual M.2 storage slots and front-panel USB 3.1 Gen2 for fast connectivity
Dual Intel Gigabit LAN for reliable networking performance
Thunderbolt 3 support for high-speed data transfer and external GPU connectivity
Intel VROC and Optane Memory ready for advanced storage configurations
OC Design with ProClock and T-Topology Technology for CPU and memory overclocking up to DDR4-4133 MHz
5-Way Optimization with Auto-Tuning and FanXpert 4 for automated performance and dynamic system cooling
SafeSlot reinforced PCIe slots for stable multi-GPU support (3-Way NVIDIA SLI or AMD CrossfireX)
7.1-channel HD audio powered by Realtek S1220A with Crystal Sound 3 and DTS Headphone:X
Complete IT infrastructure management via ASUS Control Center for remote monitoring, BIOS updates, and software dispatching
Addressable RGB AURA Sync lighting for customizable system aesthetics
Comprehensive cooling support with headers for thermal sensors, AIO pump, and water-cooling solutions

Other Details

(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445. You can also use the quote request page

Product Videos

Custom Field

MPN 90SW0070-MTAAY0

CPU Intel Socket LGA4677 for Xeon W-3400 and W-2400 Series Processors Supports Intel Turbo Boost Max Technology 3.0

Chipset Intel W790 Chipset

Memory 8 x DIMM slots, Max. 2048GB, DDR5 6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200(OC)/5000(OC)/4800 ECC Registered Memory* Quad Channel Memory Architecture

Expansion Slots Intel Xeon W-3400 and W-2400 Series Processors 5 x PCIe 5.0 x16 slot(s) (supports x16, x16, x16, x0/x8, x16/x8 modes)

Storage Total supports 2 x M.2 slots, 4 x SATA 6Gb/s ports and 3 x SlimSAS ports Intel W790 Chipset

Ethernet 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet ASUS LANGuard

USB Rear USB (Total 13 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A ) 8 x USB 2.0 port(s) (8 x Type-A)

Audio Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 8 x USB 2.0 port(s) (8 x Type-A)

Internal I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 5 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s)

Special Features Extreme OC Kit - FlexKey button - ReTry button - Start button ASUS 5X PROTECTION III

Software Features ASUS Exclusive Software Armoury Crate - Fan Xpert 4 AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner

BIOS 512 Mb Flash ROM, UEFI AMI BIOS

Manageability WOL by PME, PXE (UEFI mode)

Operating System Windows 11, Windows 10 64-bit

Form Factor CEB Form Factor 12 inch x 10.5 inch (30.5 cm x 26.67 cm)

Note Images may not be exact, please check specifications.

Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
