Product Description

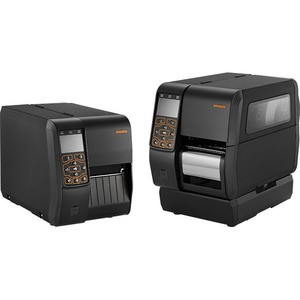

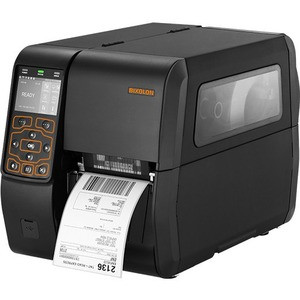

Bixolon XT5-43 Desktop Thermal Transfer Printer - Monochrome - Label Print - Ethernet - USB - Yes - Serial - RFID - US - Black - Real Time Clock - 98.43" Print Length - 4.16" Print Width - 10 in/s Mono - 300 dpi - 4.49" Label Width - SLCS, BPL-Z, BPL-E, BPL-D Emulation - For Android, PC, iOS
Features
- The XT5-40NR supports UHF RFID print and encode capability
- Extremely close-spaced RFID inlay encoding supported (minimum pitch of 0.6 inch / 16 mm)
- RFID auto-calibration simply reads the RFID tag location
- Aluminium body and special adhesiveness metal case
- Space-saving design with double folding door
- 3.5-inch full colour or 4.3 inch full colour touch LCD display
- Printing speed up to 14 ips (356 mm/sec)
- 203, 300 or 600 dpi resolution
- The industry's fastest Ethernet (1Gbit/sec) embedded
- Toolless maintenance of roller and print head
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Application/Usage Desktop
Barcode Symbology Supported Codabar
Barcode Symbology Supported Code 11
Barcode Symbology Supported Code 39
Barcode Symbology Supported Code 93
Barcode Symbology Supported Code 128
Barcode Symbology Supported EAN-13
Barcode Symbology Supported EAN-8
Barcode Symbology Supported Industrial 2 of 5
Barcode Symbology Supported Interleaved 2 of 5
Barcode Symbology Supported LOGMARS
Barcode Symbology Supported MSI
Barcode Symbology Supported Plessey
Barcode Symbology Supported POSTNET
Barcode Symbology Supported Standard 2 of 5
Barcode Symbology Supported UPC/EAN
Barcode Symbology Supported UPC-A
Barcode Symbology Supported UPC-E
Barcode Symbology Supported IMB
Barcode Symbology Supported Aztec Code
Barcode Symbology Supported Codablock
Barcode Symbology Supported Code 49
Barcode Symbology Supported Data Matrix
Barcode Symbology Supported Maxi Code
Barcode Symbology Supported PDF417
Barcode Symbology Supported QR Code
Barcode Symbology Supported TLC 39
Barcode Symbology Supported Micro PDF-417
Barcode Symbology Supported GS1 DataBar (RSS-14)
Product Type Thermal Transfer Printer
Input Voltage 120 V AC
Input Voltage 230 V AC
Manufacturer Part Number XT5-43NRS
Platform Supported Android
Platform Supported PC
Platform Supported iOS
Maximum Print Width 4.16"
Recommended Use Label Print
Standard Memory 512 MB
Weight (Approximate) 30.82 lb
Features RFID Encoder
Features Auto-calibration
Language Emulation SLCS
Language Emulation BPL-Z
Language Emulation BPL-E
Language Emulation BPL-D
Manufacturer Bixolon America, Inc
Product Model XT5-43
Product Name XT5-40 Series 4 inch Thermal Transfer Industrial Label Printer
Product Series XT5-40
Brand Name Bixolon
Media Type Label
Media Type Gap
Media Type Black Mark
Media Type Notch
Media Type Continuous Label
Media Type Fanfold
Height 12.8"
Width 10.6"
Depth 19.3"
Maximum Mono Print Speed 10 in/s
Ethernet Yes
Media Sensor Transmissive Media Sensor
Media Sensor Reflective Media Sensor
Ethernet Technology Gigabit Ethernet
RFID Yes
USB Yes
Serial Port Yes
Maximum Label Width 4.49"
USB Host Yes
Print Color Capability Monochrome
Energy Star Yes
Storage Relative Humidity 10% - 90%
Storage Temperature 68°F (20°C) - 140°F (60°C)
Product Color Black
Optional Connectivity Parallel
Optional Connectivity Wireless LAN
Optional Connectivity Bluetooth
Fonts Included 10 SLCS
Fonts Included One SLCS
Fonts Included 16 BPL-Z
Fonts Included One BPL-Z
Fonts Included 9 BPL-D
Fonts Included Two BPL-D
Fonts Included 5 BPL-E
Fonts Included 23 Code Page
Fonts Included Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Power Cable Localization US
Real Time Clock Yes
Maximum Print Resolution (dpi) 300
Operating Temperature 41°F (5°C) - 104°F (40°C)
Operating Relative Humidity 10% - 80%
