  • SPD2020-4X

    • Broadcom 4 X 25-Gb/s GaAs PIN Photodiode - SPD2020-4X

    Broadcom

    Request A Quote

    Write a Review
    SKU:
    HS-BRC-SPD2020-4X
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    SPD2020-4X
    Aperture:
    38 µm
    Array:
    1x4
    Dimensions:
    970x270x150
    Form Factor:
    Die
    Material:
    GaAs
    Number of Channels:
    4
    Pad Style:
    2 pad N-P adjacent
    RoHS6 Compliant:
    Y
    Temperature:
    -5°C - 95°C
    Top Contact Configuration:
    SG
    Wavelength:
    840-860 nm
    Note:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

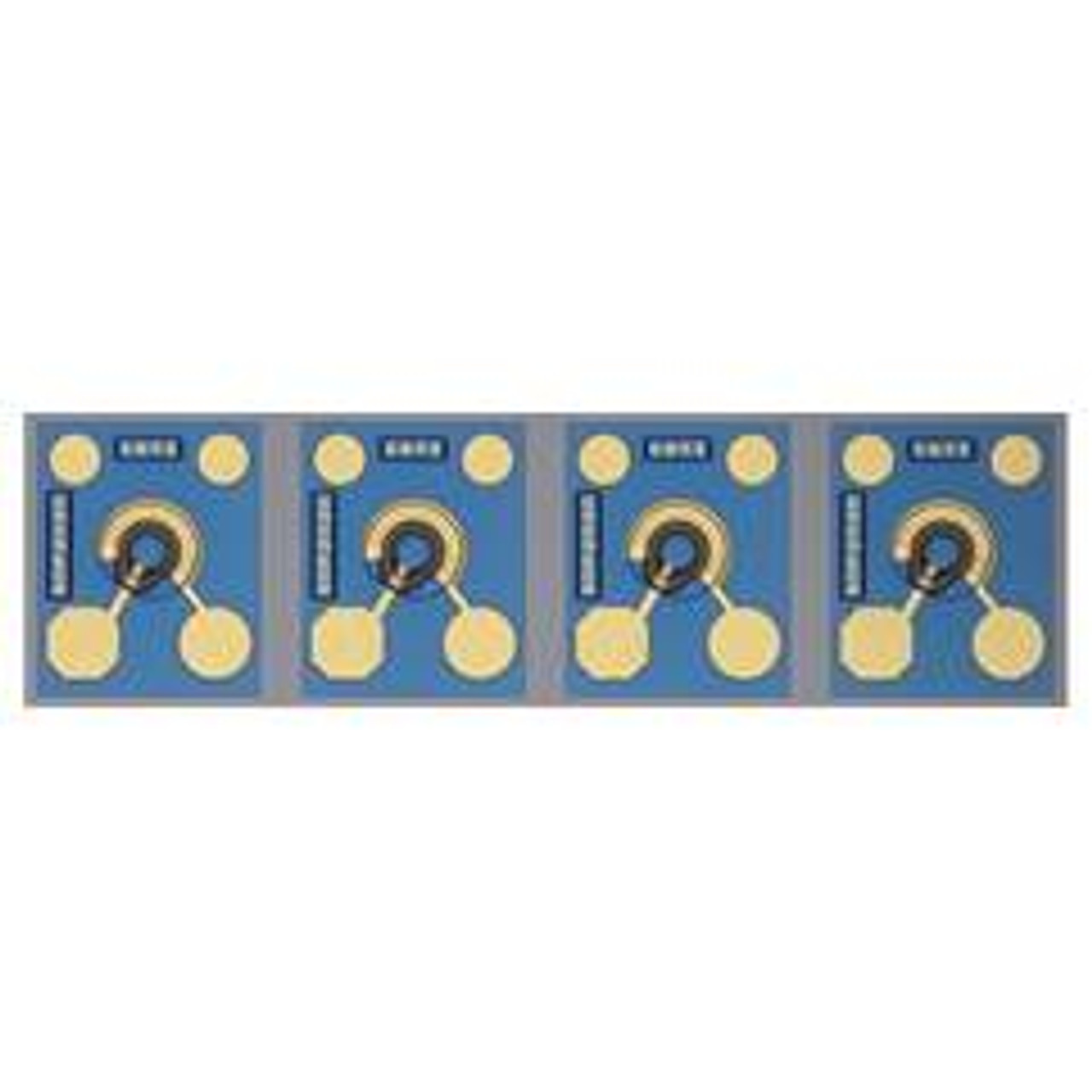

    The Broadcom SPD2020-4X is a mesa-structured, 1×4 array, GaAs-based PIN photodiode offering high responsivity, low dark current, and low capacitance for high-bandwidth, high-performance optical receiver designs. The photodiodes' low parasitics make them ideal for high-speed, multimode 4×25-Gb/s and 100GbE data center links and active optical cables. The SPD2020-4X is also available in singlets. The SPD2020-4X has slightly larger photodiode apertures (38 μm) than the similar SPD2025-4X (32 μm) to allow for easier optical alignment tolerances.

    DATASHEET

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    MPN SPD2020-4X
    Aperture 38 µm
    Array 1x4
    Dimensions 970x270x150
    Form Factor Die
    Material GaAs
    Number of Channels 4
    Pad Style 2 pad N-P adjacent
    RoHS6 Compliant Y
    Temperature -5°C - 95°C
    Top Contact Configuration SG
    Wavelength 840-860 nm
    Note Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
