Product Description

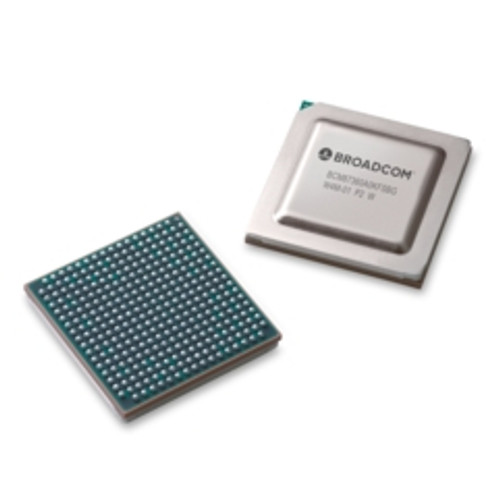

Broadcom 7-nm Octal 106-Gb/s PAM-4 Duplex PHY - BCM87360
The Broadcom BCM87360 is a single-chip, 8×106-Gb/s full-duplex Pulse Amplitude Modulation (PAM-4) PHY. It is a low-power device supporting both the PAM-4 and Non Return-to-Zero (NRZ) data formats. It supports various retimer modes. It also supports 25G, 50G, 100G, 200G, 400G and 800G line-card front panel applications. On-chip clock synthesis is performed by a low-cost 312.5 MHz reference clock via high-frequency, low-jitter phase locked loops (PLLs).
The BCM87360 is fabricated with advanced, low-power 7-nm CMOS technology. The BCM87360 is available in a 17-mm×17mm, 0.8-mm pitch, 400-pin BGA, RoHS-compliant package.
Features
- Host-side interface: High-performance SerDes supports Long Reach (30 dB)
- Line-side interface: High-performance SerDes supports Long Reach (30 dB)
- Retimer modes
- Integrated AC-coupling capacitors
- Multiple standard and line-rate support for both PAM-4 and NRZ
- Continuous auto-adaptive equalizer
- Line-side and system-side loopbacks
- PRBS generator/error checker
- Single low-cost REFCLK input
- Interoperates with Broadcom ASIC and Merchant Switch Silicon
- Low-power 7-nm CMOS design
- 17-mm×17-mm BGA package, 0.8-mm ball pitch package
Applications
- High density switch
- 25G, 50G, 100G, 200G, 400G and 800G line-card front panel applications
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
MPN BCM87360
Lifecycle Active
Distributor Inventory No
PHY Type 100GE
NOTE Images may not be exact, please check specifications.
Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
