  • ACFM-7745

    • Broadcom Band 25 / Band 66 / n70 Quadplexer - ACFM-7745

    Broadcom

    Request A Quote

    Write a Review
    SKU:
    HS-BRC-ACFM-7745
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    ACFM-7745
    Lifecycle:
    Limited Release
    Distributor Inventory:
    No
    Operating Temperature Range:
    -20°C to +85°C
    Package:
    SMT 2.5x2.0
    RoHS6 Compliant:
    Y
    NOTE:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a volume pricing | volumeorders@hssl.us

    Product Description

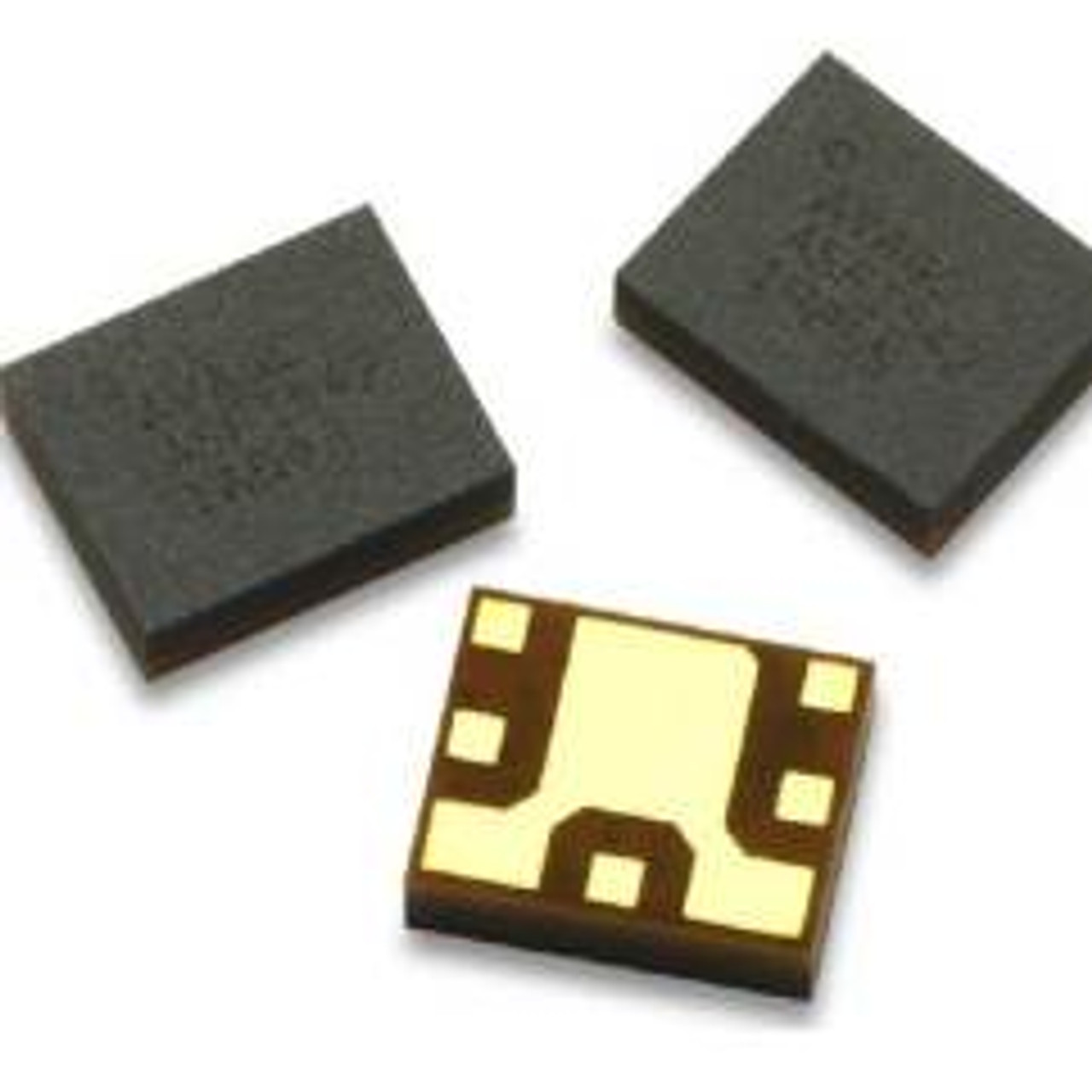

    Broadcom Band 25 / Band 66 / n70 Quadplexer - ACFM-7745

    FBAR multiplexers in an ultra small size have low insertion loss and high rejection. These FBAR filters have proven reliability at high power and temperature conditions.

    The Broadcom ACFM-7745 is a quadplexer device that combines Band 25, Band 66, and n70 duplexers in a single miniature package. The device features a single antenna connection, eliminating the need for antenna switching. High isolation between bands enables the use of carrier aggregation.

    Low Tx insertion loss of the ACFM-7745 reduces power amplifier current drive, thereby extending battery life. The device enhances receiver sensitivity and dynamic range with low Rx insertion loss and high rejection of Tx signals at the Rx ports.

    Features

    • Single antenna
    • High cross band isolation
    • Miniature size
      • 2.5 x 2.0 mm footprint
      • 0.80mm max height
    • High power rating
      • +31dBm Abs max Tx power
    • RoHS compliant
    • Halogen free
    • TBBPA free
    • Operating temperature: -20 to +85 °C

    Applications

    • Smartphones and Tablet PCs
    • Mobile and portable communication devices operating in bands 25 and 66 with option n70

    Other Details

    (Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.

    Product Videos

    Custom Field

    MPN ACFM-7745
    Lifecycle Limited Release
    Distributor Inventory No
    Operating Temperature Range -20°C to +85°C
    Package SMT 2.5x2.0
    RoHS6 Compliant Y
    NOTE Images may not be exact, please check specifications.
    Required A Volume Purchase Contact us for a volume pricing | volumeorders@hssl.us
