    • Chenbro RM133 Series RM13310 - Storage Enclosure - 10 Bays (SAS-3) - HDD 0 - Rack-Mountable - 1U - RM13310H01/14528

    CHENBRO

    ₩1,257,543.75
    Write a Review
    SKU:
    HS-CHE-RM13310H01/14528
    UPC:
    8.08613E+11
    Condition:
    New
    Availability:
    Vendor Direct Ship | ETA - Request A Quote | Email: sales@hssl.us | Call Us: +1 888 988 5472 |
    MPN:
    RM13310H01/14528
    NOTE:
    Images may not be exact, please check specifications.
    Required A Volume Purchase:
    Contact us for a special pricing for Volume orders. sales@hssl.us
    Adding to cart… category.add_cart_announcement

    Product Description

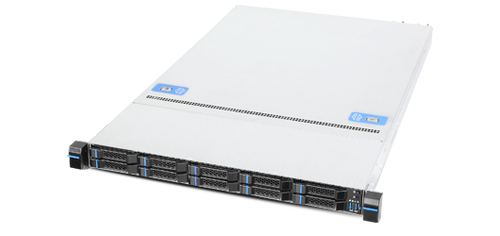

    The Chenbro RM133 Series RM13310 is a 10-bay SAS-3 rackmount enclosure that offers high performance, scalability, and reliability for your data storage needs. It features a backplane with SAS 3.0 connectivity, support for up to 10 SAS or SATA drives, and a hot-swap design for easy drive replacement. The RM13310 is also equipped with a fanless design for quiet operation and a front-access design for easy cable management.

    Here are some of the benefits of using the Chenbro RM133 Series RM13310:

    • High performance: The RM13310 supports SAS 3.0 connectivity, which provides up to 12 Gbps of bandwidth for faster data transfer speeds.
    • Scalability: The RM13310 can support up to 10 SAS or SATA drives, making it ideal for growing data storage needs.
    • Reliability: The RM13310 features a hot-swap design for easy drive replacement, and a fanless design for quiet operation.
    • Easy to use: The RM13310 has a front-access design for easy cable management, and it is compatible with a wide range of RAID controllers.
    1U Versatile Storage Server Chassis
    Supports feature-rich motherboards in a standard form factor with dual processor sockets to address storage and computing applications.

    Features & Benefits
    •
      Supports MB size up to 12" x 13"
    •
      Tool-less installation HDD tray 2.5" and 3.5" HDD/SSD
    •
      12Gb/s mini-SAS HD backplane with smart fan control
    •
      Supports fan thickness up to 56mm
    •
      Front access information tag for easy server management
    •
      Supports 1+1 redundant PSU
    •
      Optional easy-to-use tool-less or cost effective friction rails available
      • Specification

      • Download

      • Accessory

      • Compatibility

    • MB Form Factor SSI EEB (12" x 13")
      Dimension (D x W x H) 660.0 x 438.5 x 43.5 (mm)
      25.89”x 17.26” x 1.71”

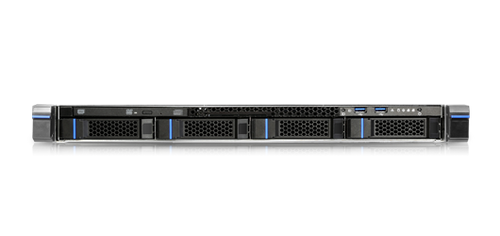

      Drive Bay RM13304 (3.5" Hot-swap)：4
      RM13304 (2.5" Internal)：2
      RM13304 (Slim ODD)：1
      RM13310 (2.5" Hot-swap)：10
      Storage Backplane RM13304 : 3.5" 4-port 12Gbps, SATA 7pin
      RM13310 : 2.5" 10-port 12Gbps, Mini-SAS HD
      2.5" 10-port PCIe Gen 3, OCuLink,
      2-port Tri-mode
      PSU Form Factor 1U Single or 1+1 Redundant
      Indicator 1 x Power Status
      2 x LAN Activity
      1 x HDD Status
      1 x UID
      1 x System Alarm
      Front Control 1 x Power On/Off
      1 x UID
      2 x USB3.0
      Cooling Fan RM13304: 40 x 28 mm (4, up to 6)
      RM13310: 40 x 28 mm (5 ,up to 6)
      System Security Intrusion Switch (Option)
      Expansion Slot Opening 1 x Full Height & Half Length
      Net Weight 10.5 kg/23.13 lb
      Gross Weight 14.6 kg/32.16 lb
      Cubic Feet 3.00
      Container Loading (Single Packing) 20': 450, 40': 930
