Product Description

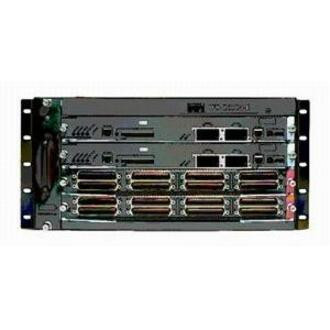

Cisco Catalyst 6504-E Switch Chassis - Manageable - 3 Layer Supported SEE NOTES CISCO WRTY NO RETURNS
The Cisco Catalyst WS-C6504-E Chassis is a 320-Gbps, small form factor, high-performance chassis. With the Cisco Catalyst 6500 Series Supervisor Engine 720, it can deliver up to 80 Gbps of switching capacity per slot. The 6504-E Catalyst switch offers the broadest range of interface modules with industry-leading performance and advanced feature integration.
With this flexibility the Cisco Catalyst 6504-E is suitable for deployments ranging from small and medium-sized core networks to distribution and access networks and to the WAN edge. With high availability and resiliency the platform is well suited for metro provider-edge applications.
Other Details
(Manufacturer Standard Warranty) - Not Clear what product you need, or can't find your specific product/service part number? Call us +1 888 988 5472 | Fax: +1 888 920 3445.Product Videos
Custom Field
Package Contents
- Catalyst 6504-E Switch Chassis
- Optional equipment that you ordered, such as network interface cables, transceivers, or special connectors
Product Type Switch Chassis
Input Voltage 110 V AC
Input Voltage 220 V AC
Manufacturer Part Number WS-C6504-E-RF
Layer Supported 3
Weight (Approximate) 40 lb
Manufacturer Cisco Systems, Inc
Product Model 6504-E
Product Name Catalyst 6504-E Switch Chassis
Product Line Catalyst
Product Series 6500
Brand Name Cisco
Height 8.8"
Width 17.5"
Depth 21.8"
Manageable Yes
Number of Total Expansion Slots 4
Redundant Power Supply Supported Yes
Note Images may not be exact, please check specifications.
