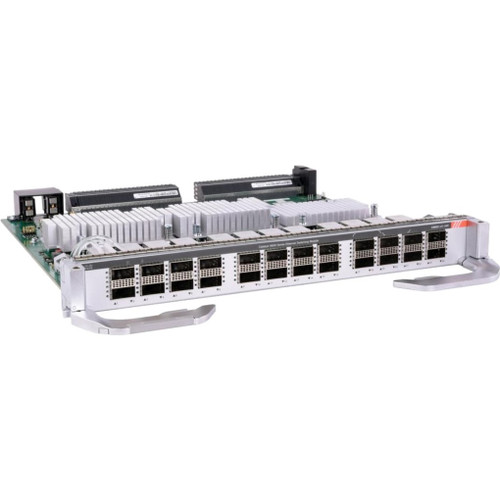

Cisco Catalyst 9600 Series Line Card - switch - 24 ports - plug-in module - C9600-LC-24C

Product Description

Cisco Catalyst 9600 series switches are purpose-built for resiliency at scale with the industry's most comprehensive security and allows your business to grow at lowest total operational cost. Built upon the foundation of Catalyst 9000, the Catalyst 9600 Series offers scale and security when always on is a must.

As foundational building blocks for the Cisco Digital Network Architecture, Catalyst 9600 series switches help customers simplify complexity, optimize IT, and reduce operational costs by leveraging intelligence, automation and human expertise that no other vendor can deliver regardless of where you are in the intent-based networking journey.

Catalyst 9600 series Switches provide security features that protects the integrity of the hardware as well as the software and all data that flows through the switch. It provides resiliency that keeps your business up and running seamlessly. Combine that with open APIs of Cisco IOS XE and programmability of the UADP ASIC technology, Catalyst 9600 series switches give you what you need now with investment protection on future innovations.

• Primary Information

  Product Description:	Cisco Catalyst 9600 Series Line Card - switch - 24 ports - plug-in module
  Device Type:	Switch - 24 ports
  Enclosure Type:	Plug-in module
  Ports:	24 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
  Performance:	Bandwidth: 2.4 Tbps
  Features:	IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Media Access Control Security (MACsec)
  Compliant Standards:	IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x
  Dimensions (WxDxH):	15 in x 15.7 in x 1.7 in
  Weight:	7.67 lbs
  System Requirements:	Cisco IOS XE 16.11.1
  Manufacturer Warranty:	Limited lifetime warranty
  Designed For:	P/N: C9606R, C9606R-10A, C9606R-1A, C9606R-48S-BN-A, C9606R-48Y24C-BN-A, C9606R-EDU

• General

  Device Type:	Switch - 24 ports
  Enclosure Type:	Plug-in module
  Ports:	24 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28
  Performance:	Bandwidth: 2.4 Tbps
  Features:	IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), Media Access Control Security (MACsec)
  Compliant Standards:	IEEE 802.3, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x

• Expansion / Connectivity

  Interfaces:

  24 x 100Gbit/40Gbit LAN QSFP28

• Miscellaneous

  MTBF:	710,750 hours
  Compliant Standards:	CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 Class A, Laser Class 1, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, AES-256, EN 300 386 V1.6.1, EN 55022 Class A, EN 300 386, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317

• Software / System Requirements

  OS Required:

  Cisco IOS XE 16.11.1

• Dimensions & Weight

  Width:	15 in
  Depth:	15.7 in
  Height:	1.7 in
  Weight:	7.67 lbs

• Manufacturer Warranty

  Service & Support:

  Limited warranty - replacement - lifetime - response time: next business day

• Environmental Parameters

  Min Operating Temperature:	23 °F
  Max Operating Temperature:	113 °F
  Humidity Range Operating:	10 - 95% (non-condensing)
  Min Storage Temperature:	-40 °F
  Max Storage Temperature:	158 °F
  Humidity Range Storage:	10 - 95% (non-condensing)

• Compatibility Information

  Designed For:

  P/N: C9606R, C9606R-10A, C9606R-1A, C9606R-48S-BN-A, C9606R-48Y24C-BN-A, C9606R-EDU

• UNSPSC Code

  UNSPSC Code:

  43201404
