Product Description
- No CPU 0 MB DDR4 SDRAM
- 0 GBhard driveNone
- Form Factor:Blade
- 3-year warranty

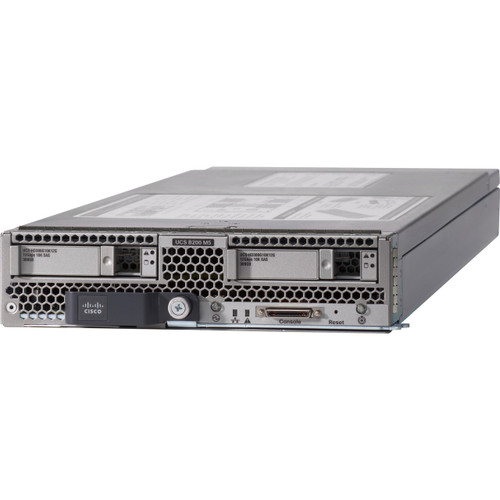

For remote sites or data centers the enterprise-class Cisco UCS® B200 M5 Blade Server delivers market-leading performance versatility and density without compromise for workloads ranging from web infrastructure to distributed databases.
The Cisco UCS B200 M5 Blade Server delivers performance flexibility and optimization for deployments in data centers in the cloud and at remote sites. This enterprise-class server offers market-leading performance versatility and density without compromise for workloads including Virtual Desktop Infrastructure (VDI) web infrastructure distributed databases converged infrastructure and enterprise applications such as Oracle and SAP HANA. The B200 M5 server can quickly deploy stateless physical and virtual workloads through programmable easy-to-use Cisco UCS Manager and Cisco Intersight&trade and simplified server access through Cisco SingleConnect technology. It includes:
- 2nd Gen Intel® Xeon® Scalable and Intel Xeon Scalable processors with up to 28 cores per socket
- Up to 24 DDR4 DIMMs for improved performance with up to 12 DIMM slots ready for Intel Optane&trade DC Persistent Memory
- Up to 2 GPUs
- Up to 2 Small Form-Factor (SFF) drives
- Up to 2 SD cards or M.2 SATA drives
- Up to 80 Gbps of I/O throughput
The Cisco UCS B200 M5 server is a half-width blade. Up to eight servers can reside in the 6-Rack-Unit (6RU) Cisco UCS 5108 Blade Server Chassis offering one of the highest densities of servers per rack unit of blade chassis in the industry. You can configure the B200 M5 to meet your local storage requirements without having to buy power and cool components that you do not need.
The Cisco UCS B200 M5 provides these main features:
- Up to two 2nd Gen Intel Xeon Scalable and Intel Xeon Scalable processors with up to 28 cores per CPU
- 24 DIMM slots for industry-standard DDR4 memory at speeds up to 2933 MHz with up to 3 TB of total memory when using 128-GB DIMMs. Up to 12 DIMM slots ready for Intel Optane DC Persistent Memory to accommodate up to 6 TB of Intel Optane DC Persistent Memory
- Modular LAN on Motherboard (mLOM) card with Cisco UCS Virtual Interface Card (VIC) 1440 or 1340 a 2-port 40-gigabit Ethernet (GE) Fibre Channel over Ethernet (FCoE)&ndashcapable mLOM mezzanine adapter
- Optional rear mezzanine VIC with two 40-Gbps unified I/O ports or two sets of 4 x 10-Gbps unified I/O ports delivering 80 Gbps to the server adapts to either 10- or 40-Gbps fabric connections
- Two optional hot-pluggable Hard Disk Drives (HDDs) Solid-State Drives (SSDs) or Nonvolatile Memory Express (NVMe) 2.5-inch drives with a choice of enterprise-class Redundant Array of Independent Disks (RAID) or pass-through controllers
- Support for Optional SD Card or M.2 SATA drives for flexible boot and local storage capabilities
- Support for up to 2 optional GPUs
- Support for one rear storage mezzanine card
- Support for one 16-GB internal flash USB drive
Product specifications
Table 1 lists the specifications for the Cisco UCS B200 M5 Blade Server.
Table 1. Specifications
| Item | Specifications |
| Processors | Up to 2 Intel Xeon Scalable processors (1 or 2) |
| Memory | 24 DDR4 DIMM slots: 16 32 64 and 128 GB at up to 2933 MHz |
| Intel Optane DC Persistent Memory | 12 DIMM slots: 128 256 and 512 GB at up to 2666 MHz |
| mLOM | mLOM slot for Cisco UCS VIC 1440 or 1340 |
| Mezzanine adapter (rear) | 1 rear mezzanine adapter for: ● Cisco UCS VIC 1480 or 1380 mezzanine card ● Cisco ® port expander mezzanine card ● Cisco nVIDIA P6 GPU rear mezzanine card ● Cisco blade NVMe storage card |
| Mezzanine adapter (front) | 1 front mezzanine adapter for: ● Cisco FlexStorage 12-Gbps SAS RAID Controller ● Cisco FlexStorage 12-Gbps SAS RAID Controller with 2-GB cache ● Cisco FlexStorage NVMe or pass-through module ● Cisco nVIDIA P6 GPU front mezzanine card |
| Internal storage | 2 hot-pluggable front-access 2.5-inch drives: ● HDD: 10000 or 15000 RPM with up to 1.8 TB per drive ● SSD: Enterprise Performance and Value SSDs with up to 7.6 TB per drive ● NVMe: Up to 7.7 TB per drive Note: Drives require a RAID or pass-through controller in the front mezzanine adapter slot. Choice of either: ● 2 internal SD cards (32- 64- or 128-GB with boot-mirroring or ● Up to 2 M.2 SATA drives (240 or 960 GB) supported via LSI software RAID |
| Management | Cisco Intersight software Cisco UCS Manager Release 4.0(4) Cisco UCS Central Software Cisco UCS Director Cisco UCS Performance Manager |
| Temperature: operating | 50° to 95°F (10° to 35°C) |
| Temperature: nonoperating: | -40° to 149°F (&ndash40° to 65°C) |
| Humidity: operating | 5% to 93% noncondensing |
| Humidity: nonoperating | 5% to 93% noncondensing |
| Altitude: operating | 0 to 10000 ft (0 to 3000m) maximum ambient temperature decreases by 1°C per 300m |
| Altitude: nonoperating | 40000 ft (12000m) |
Table 2 lists system requirements for the server.
Table 2. System requirements
| Item | Requirements |
| Blade chassis | Cisco UCS 5108 Blade Server Chassis |
| Fabric interconnect | Cisco UCS 6248 UP 6296UP 6332- 16UP 6332 6324 and 6454 Fabric Interconnects |
| Fabric extender | Cisco UCS 2204 2208 2304 Fabric Extenders |
| Cisco UCS Manager software | Current: Release 4.0(4) or later refer to the UCSM Release Notes for supported releases for this platform. |
Table 3 provides ordering information for the Cisco UCS B200 M5.
Table 3. Ordering information
| Part number | Description |
| UCSB-B200-M5 | Cisco UCS B200 M5 Blade w/o CPU memory HDD mezzanine |
| UCSB-B200-M5-U | Cisco UCS B200 M5 Blade w/o CPU memory HDD mezzanine (UPG) |
| UCSB-B200-M5-CH | DISTI: Cisco UCS B200 M5 w/o CPU memory drive bays HDD mezzanine |
