Product Details

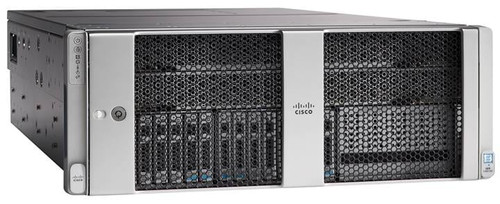

The Cisco UCS® C480 M5 Rack Server delivers a no-compromise balance of performance expansion capabilities and flexibility to scale in a 4-Rack-Unit (4RU) form-factor.
The Cisco UCS C480 M5 Rack Server is a storage- and I/O-optimized enterprise-class rack server that delivers industry-leading performance for in-memory databases big data analytics virtualization Virtual Desktop Infrastructure (VDI) and bare-metal applications. The C480 M5 delivers outstanding levels of expandability and performance for standalone or Cisco Unified Computing System&trade (Cisco UCS) managed environments in a 4RU form-factor. And because of its modular design you pay for only what you need. It offers these new latest capabilities:
● Four new second-generation Intel® Xeon® Scalable CPUs (up to 28 cores per socket)
● Four existing Intel® Xeon® Scalable CPUs (up to 28 cores per socket)
● Support for two-or four-processor configurations
● Support for the Intel Optane DC Persistent Memory (128G 256G 512G)
● Support for higher-density DDR4 memory from 6 TB (128G DDR4 DIMMs) to 12 TB (256G DDR4 DIMMs)
● Memory speeds increase from 2666 MHz to 2933 MHz
● Intel Optane DC Persistent Memory Modules (DCPMM) &ndash 128G 256G and 512G1
● Up to 18 TB using 24x256G DDR4 DIMMs and 24x512G Intel® Optane DC Persistent Memory Modules
● Up to 4 GPUs (2-CPU configuration) or 6 GPUs (4-CPU configuration) with offerings from NVIDIA and AMD
● 12 PCI Express (PCIe) 3.0 slots
◦ Six x8 full-height full length slots
◦ Six x16 full-height full length slots
● Flexible storage options with support up to 32 Small-Form-Factor (SFF) 2.5-inch SAS SATA and PCIe NVMe disk drives
● Cisco® 12-Gbps SAS Modular RAID Controller in a dedicated slot
● Internal Secure Digital (SD) and M.2 boot options
● Dual embedded 10 Gigabit Ethernet LAN-On-Motherboard (LOM) ports
Table 1 summarizes the features and benefits of the Cisco UCS C480 M5.
Table 1. Main features and benefits
| Feature | Benefit |
| High-capacity memory support of up to 12 TB using 256-GB DIMMs and 18 TB using Intel Optane DC Persistent Memory Modules | Large memory footprint to deliver performance and capacity for in-memory computing |
| Modular storage support with up to 24 front-accessible and 8 top-loading hot-swappable Hard Disk Drives (HDDs) and Solid-State Disks (SSDs) or PCIe NVMe drives | ● Modularity to right-size storage options to match application requirements ● Flexibility to expand as storage needs increase |
| Support for up to 12 PCIe Generation 3.0 slots | ● Increased I/O for performance and flexibility ● Support for up to 6 Graphics Processing Units (GPUs) to support deep-learning workloads |
| Scalable CPU configurations | Capability to scale from 2 sockets to 4 sockets using C480 M5 server modules as business needs change |
| Up to 4 GPUs (2 CPU) or 6 GPUs (4 CPU) supported | Increased performance of VDI analytics and database solutions |
| Hot-swappable redundant power supplies | Increased high availability |
| Integrated dual 10-Gbps Ethernet | Increased network I/O performance |
Storage and I/O Optimized for Industry-Leading Performance
The Cisco UCS C480 M5 is a storage and I/O-optimized enterprise-class rack server that delivers industry-leading performance for:
● In-memory databases
● Big data analytics
● Virtualization and VDI workloads
● Bare-metal applications
C480 M5 servers can be deployed as standalone servers or in a Cisco UCS managed environment. When used in combination with Cisco UCS Manager the C480 M5 brings the power and automation of unified computing to enterprise applications including Cisco® SingleConnect technology drastically reducing switching and cabling requirements.
Cisco UCS Manager uses service profiles templates and policy-based management to enable rapid deployment and help ensure deployment consistency. It also enables end-to-end server visibility management and control in both virtualized and bare-metal environments.
The Cisco Integrated Management Controller (IMC) delivers comprehensive out-of-band server management with support for many industry standards including:
● Redfish Version 1.01 (v1.01)
● Intelligent Platform Management Interface (IPMI) v2.0
● Simple Network Management Protocol (SNMP) v2 and v3
● Syslog
● Simple Mail Transfer Protocol (SMTP)
● HTML5 GUI
● HTML5 virtual Keyboard Video and Mouse (vKVM)
● Command-Line Interface (CLI)
● XML API
Management Software Development Kits (SDKs) and DevOps integrations exist for Python Microsoft PowerShell Ansible Puppet Chef and more. For more information about integrations see Cisco DevNet.
The C480 M5 is Cisco Intersight&trade ready. Cisco Intersight is a new cloud-based management platform that uses analytics to deliver proactive automation and support. By combining intelligence with automated actions you can reduce costs dramatically and resolve issues more quickly.
