Crestron DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 - 1 - 1080i, 1080p - Category 5e - Gang Box Mount, Wall Plate - 6511809

Product Description

Crestron DM Essentials 4K60 4:4:4 Transmitter for HDMI, RS-232, and IR Signal Extension over CATx Cable, Wall Plate, Black - 230 ft Range - 1 x Network (RJ-45) - 1 x HDMI In - 1 - 1 - 1080i, 1080p - 4K, 4K UHD, WQXGA, Full HD, UXGA, WUXGA, QWXGA, 2K - 4096 x 2160 - Category 5e - Gang Box Mount, Wall Plate - 6511809

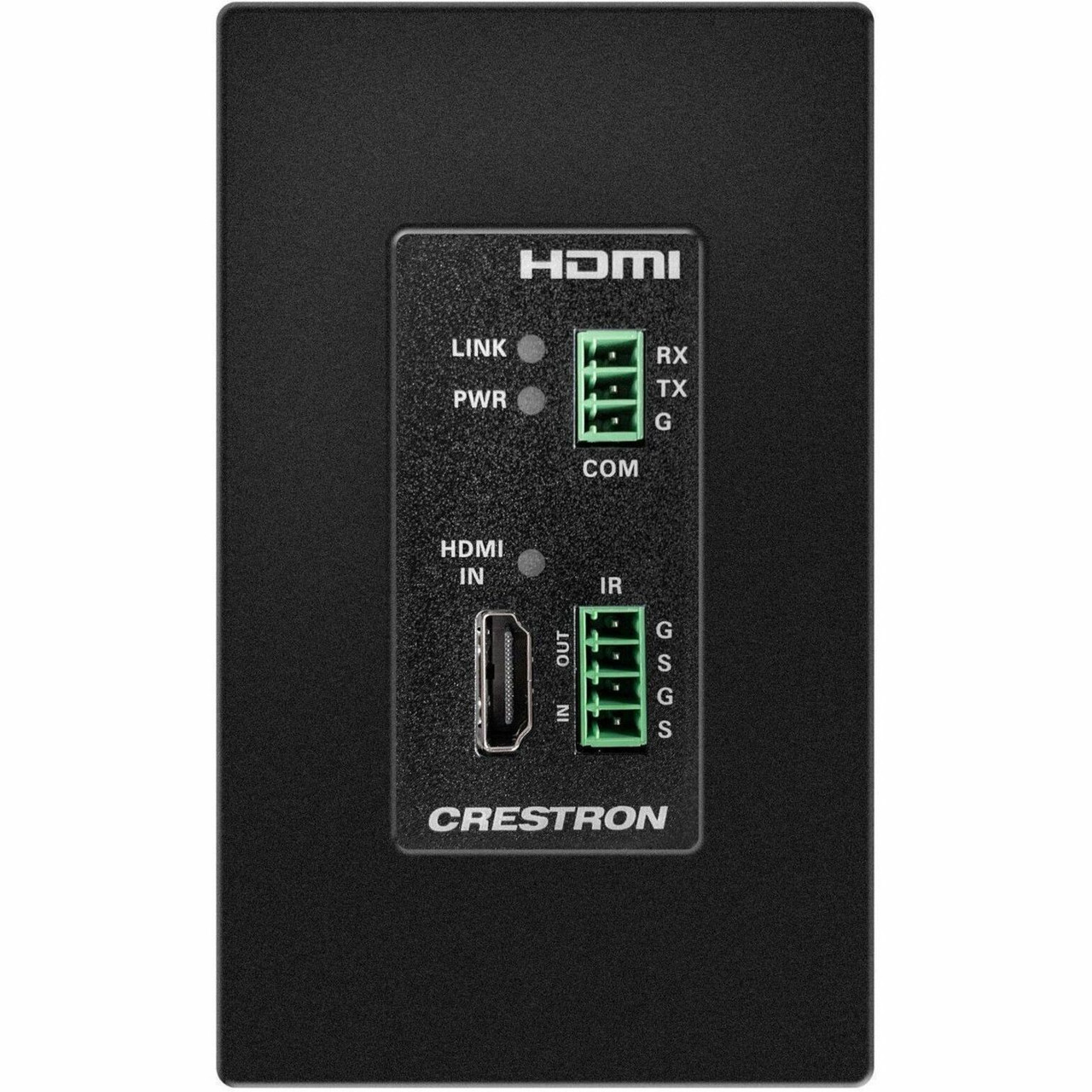

The HD-TXC-4KZ-101-1G is a DM Essentials 4K60 4:4:4 wall plate transmitter designed to interoperate with a DM® Essentials receiver or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM-CBL-8G or DM-CBL-ULTRA sold separately) is needed to connect the HD-TXC-4KZ-101-1G to the DM Essentials receiver or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.

The HD-TXC-4KZ-101-1G is available in two models: HD-TXC-4KZ-101-1G-B (black) and HD-TXC-4KZ-101-1G-W (white).

Interoperability with a DM Essentials Receiver or DMPS Essentials Switcher

The DM Essentials output port of the HD-TXC-4KZ-101-1G must be connected to a DM Essentials input port of a DM Essentials receiver or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 receivers are the HD-RXC-4KZ-101andHD-RXCA-4KZ-101. Supported DMPS Essentials switchers are theHD-PS622,HD-PS621,HD-PS402,HD-PS401, andHD-RX-4K-210-C-E.

Note: When paired with an HD-RX-4K-210-C-E(-POE), the transmitter cannot provide power to the receiver. Power must be connected to the HD-RX-4K-210-C-E(-POE) only.

The HD-TXC-4KZ-101-1G can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD-TXC-4KZ-101-1G. In addition, control system programming and .AV Framework software support of the HD-TXC-4KZ-101-1G is hosted by the switcher.

4K60 4:4:4 and HDR Support

The HD-TXC-4KZ-101-1G supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision video formats are also supported.

One-Gang Wall Plate Design

The HD-TXC-4KZ-101-1G is designed to mount into a 1-gang U.S. electrical box or plaster ring (not included). The HD-TXC-4KZ-101-1G can receive power from the remote DM Essentials receiver (surface mountable only) or DMPS Essentials switcher.

Key Features

• Interoperability with a DM Essentials receiver or DMPS Essentials switcher
• Point-to-point extension of HDMI, RS-232, and IR signals over a CAT5e or higher cable
• DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
• Video Extender Transmitter is a reliable audio/video transmission extending solution
• The HD-TXC-4KZ-101-1G-B video extender transmitter provides plenty of freedom with wired connectivity
• 230 ft maximum operating distance to allow efficient coverage and maximum usability
• 4K graphics mode for an immersive and sharp viewing experience
• 1080i supported video mode for maximum viewing feasibility and adaptability
• 4096 x 2160 maximum video resolution for stunning, lively result with optimal viewing usability
• HDMI in allows convenient transfer of content and data to video extender transmitter to ensure maximum dependability
• Gang Box Mount form factor for added reliability and dependability
