Product Description
CyberPower PDU15M2F10R 100 - 125 VAC 15A Metered PDU - 12 Outlets, 15 ft, NEMA 5-15P, Horizontal, 1U, Lifetime Warranty 120V 2F / 10R OUT 5-15P 15FT CORD

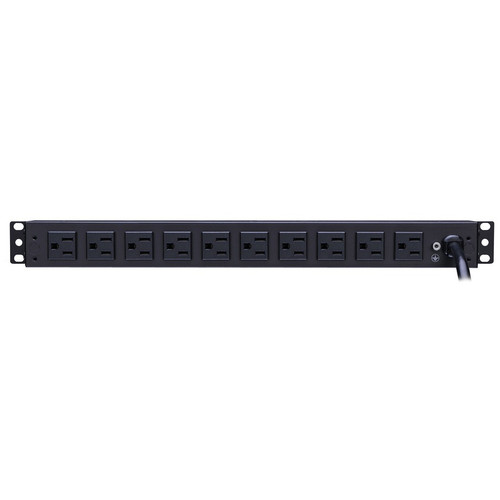

The CyberPower PDU15M2F10R, a 12-outlet (2 front, 10 rear), rackmount metered power distribution unit (PDU), provides 100 - 125 V 15A output. It distributes power to 12 NEMA 5-15R receptacles from a single NEMA 5-15P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring.
Designed for datacenters and other electrically demanding applications, the PDU15M2F10R has rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically. The PDU15M2F10R comes with a cord retention tray and is ETL/RoHS certified. A limited lifetime warranty overs defects in materials and workmanship in the product under normal use and conditions.
Power DistributionDelivers AC power to servers, equipment, and connected devices via a power distribution unit.
Switch-Free Design
Safeguards against accidental power shutdown.
Network-Grade Plugs and Outlets
Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.
Long Input Power Cord
Reaches distant power sources, allowing the PDU to be placed where it's needed.
Cord Retention Tray
Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.
Configurable Mounting Brackets
Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).
Durable Metal Housing
Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.
Limited Lifetime Warranty
Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.
What's In The Box
PDU, Cord Retention Tray, User Manual, Screw Kit, Cord Clip Kit, Horizontal Mounting Brackets, Vertical Mounting Brackets, Product Registration Card
- Metered PDU
- 12 NEMA 5-15R (2 Front/10 Rear) output receptacles
- 120V AC - 50/60Hz - 15-amp electrical capacity with circuit breaker
- 1U Rack Mount - Rugged industrial-grade metal housing
Limited Warranty | Lifetime |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Energy Star | No |
Input Voltage | 120 V AC |
Input Current | 15 A |
Input Voltage Range | 100 V AC - 125 V AC |
100 V AC - 125 V AC | |
Output Voltage Range | 100 V AC - 125 V AC |
100 V AC - 125 V AC |
Protection Type | Overload Protection |
Plug/Connector Type | NEMA 5-15P |
Phase | Single Phase |
Receptacle Type | NEMA 5-15R |
PDU Type | Metered |
Receptacle Detail | 12 x NEMA 5-15R |
Weight (Approximate) | 4 lb |
Mount Type | Rack-mountable |
Rack Height | 1U |
Height | 1.8" |
Width | 17.5" |
Depth | 2.3" |
Mounting Orientation | Vertical |
Product Type | PDU |
Manufacturer Part Number | PDU15M2F10R |
Manufacturer Website Address | http://www.cyberpowersystems.com |
Manufacturer | CyberPower Systems, Inc |
Product Model | PDU15M2F10R |
Product Name | PDU15M2F10R 12-Outlets PDU |
Product Series | Metered PDU |
Brand Name | CyberPower |
