Product Description
CyberPower OL1500RTXL2U Smart App Online UPS Systems - 1500VA/1350W, 100 - 125 VAC, NEMA 5-15P, 2U, Rack / Tower, Sine Wave, 8 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty PURESINE LCD 5-15P 100-125V RT 3YR
Prevent business interruptions and safeguard mission-critical enterprise network equipment.

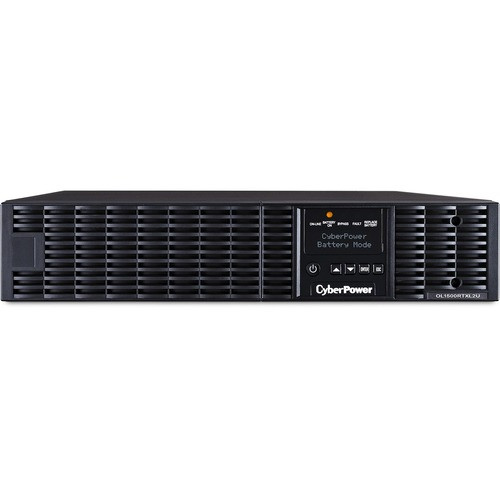

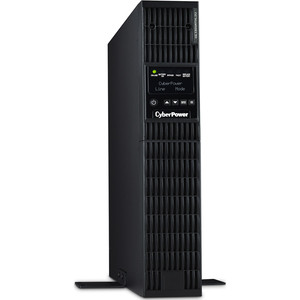

The CyberPower OL1500RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL1500RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
- Capacity: 1500 VA / 1350 W
- Power Factor (PF): 0.9
- Topology: Double-Conversion
- Waveform: Sine Wave
- Output: 100, 110, 115, 120, 125 V ±2% (configurable)
- Plug type & cord: NEMA 5-15P, 10 ft. cord
- Outlet types: 8 × NEMA 5-15R
- Monitoring & Management: USB, Serial, Network, Relay, EPO
- Data line surge protection: Telephone, Network
- Management software: PowerPanel® Business Edition
Status Indicators |
|
Serial Port | Yes |
USB (HID Compliant) Port | Yes |
Limited Warranty | 3 Year |
Directly Connected Equipment Guarantee | $400000Lifetime |
$400000Lifetime |
Sound Emission | 38 dB(A) |
Thermal Dissipation | 140.09 W |
Maximum Operating Temperature | 104°F (40°C) |
Maximum Operating Elevation | 10000 ft |
Maximum Storage Elevation | 50000 ft |
Network Management | SNMP/HTTP Remote Monitoring |
Alarm | Battery Mode |
Overload | |
UPS Fault | |
Low Battery |
Weight (Approximate) | 39.60 lb |
Color | Black |
Form Factor | Rack/Tower |
Rack Height | 2U |
Height | 3.5" |
Width | 17" |
Depth | 16.9" |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
115 V AC | |
110 V AC | |
100 V AC | |
125 V AC | |
Surge Energy Rating | 1780 J |
Waveform Type | Sine Wave |
Input Voltage Range | 100 V AC - 125 V AC |
100 V AC - 125 V AC | |
Input Frequency | 70 Hz |
70 Hz |
Battery Chemistry | Sealed Lead Acid (SLA) |
Battery Size | 12V |
Battery Capacity | 9000 mAh |
Number of Batteries | 3 |
Backup/Run Time (Half Load) | 11 Minute |
Backup/Run Time (Full Load) | 3.40 Minute |
Battery Characteristics | Maintenance-free |
Typical Battery Recharge Time | 4 Hour |
Product Type | Dual Conversion Online UPS |
Manufacturer Part Number | OL1500RTXL2U |
Manufacturer Website Address | http://www.cyberpowersystems.com |
Manufacturer | CyberPower Systems, Inc |
Product Model | OL1500RTXL2U |
Product Name | Smart App Online OL1500RTXL2U 1500VA 100-125V Sine Wave LCD Rack/Tower UPS |
Product Series | Smart App Online UPS |
Brand Name | CyberPower |
Additional Information |
|
Package Contents |
|
Software Included | PowerPanel® Business |
Certifications & Standards | UL1778 |
Country of Origin | Philippines |
Environmentally Friendly | Yes |
Environmental Certification | RoHS |
Energy Star | Yes |
Application/Usage | Mission Critical Equipment |
Dataline Protection | RJ-45 |
RJ-11 | |
Plug/Connector Type | NEMA 5-15P |
Receptacle Type | NEMA 5-15R |
EMI/RFI Noise Filter | Yes |
Energy Saving | ECO Mode Efficiency >95% |
Transfer Time | 0 ns |
Receptacle Detail | 8 x NEMA 5-15R |
