Product Description

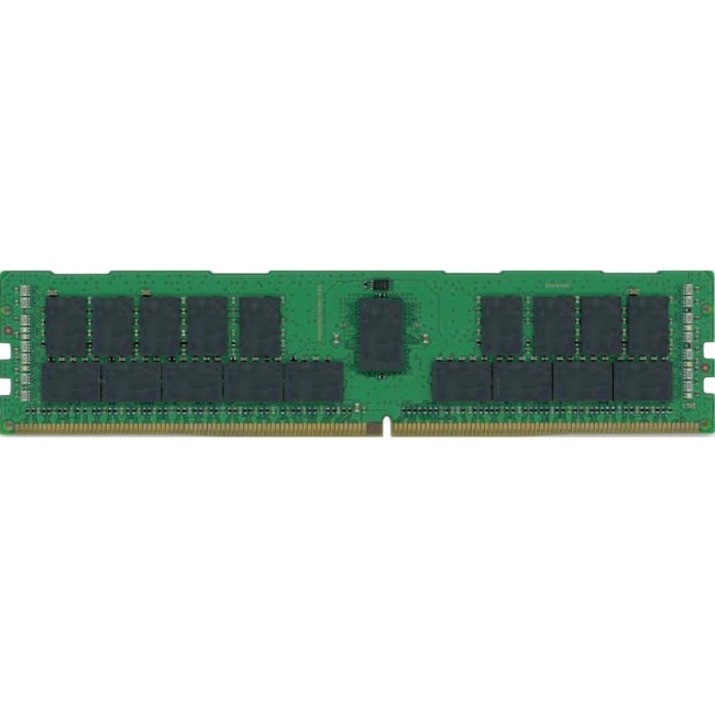

Dataram 32GB DDR4 SDRAM Memory Module - 32 GB (1 x 32GB) - DDR4-2666/PC4-21333 DDR4 SDRAM - 2666 MHz - CL19 - 1.20 V - ECC - Registered - 288-pin - DIMM - Lifetime Warranty
DTM68132-H is a registered 4Gx72 memory module, which conforms to JEDEC's PC4-2666 standard. The assembly is Dual-Rank with each rank containing of eighteen SKHynix 2Gbx4 DDR4-2666 SDRAMs. One 4K-bit EEPROM is used for Serial Presence Detect and a combination register/PLL, with Address and Command Parity, is also used.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology. A thermal sensor accurately monitors the DIMM module and can prevent exceeding the maximum operating temperature of 95C.
